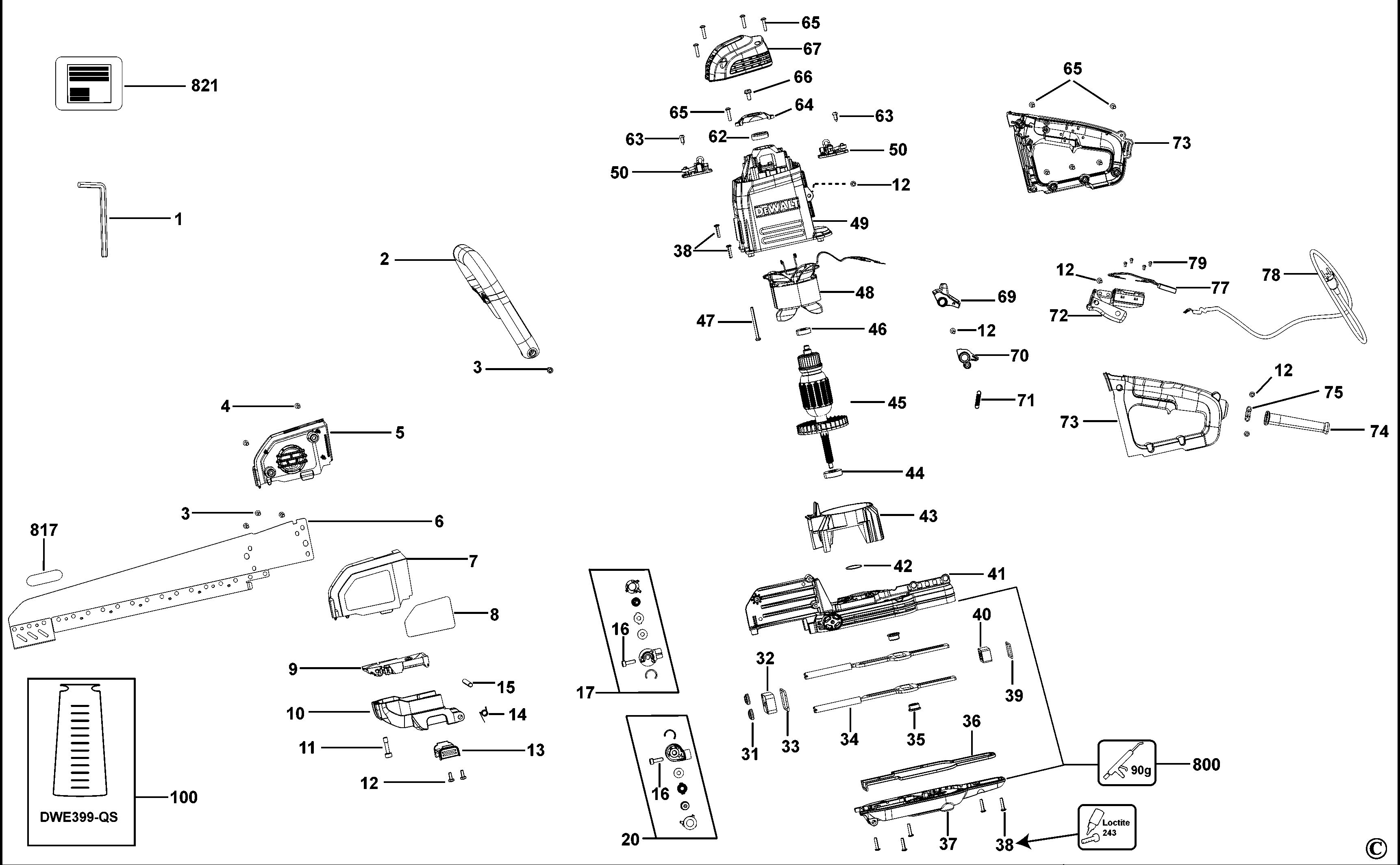

DEWALT UNIVERSAL SAW (Type 1)
SKU Produs: DWE399 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 098000-11 | 1 | HEX KEY 5mm | 5,3 Lei | |
| 2 | N097478 | 1 | SA BALE HANDLE OVERMOULD(MOULD) | 185,8 Lei | |
| 3 | 324007-11 | 4 | SCREW, PAN HEAD M5X18 | 5,3 Lei | |
| 4 | 330019-21 | 2 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,7 Lei | |
| 5 | N507804 | 1 | COVER FRONT RIGHT, AIR LOCK (MOULD) | 20,4 Lei | |
| 6 | N233859 | 1 | SA PACKED SWORD 17 INCH (SERVICE) | 314,3 Lei | |
| 7 | N507803 | 1 | COVER FRONT LEFT, AIR LOCK (MOULD) | 22,4 Lei | |
| 8 | N217152 | 1 | LABEL, BLADE FIT | 5,3 Lei | |
| 9 | N201132 | 1 | FUNNEL GEARCASE CAP | 13 Lei | |
| 10 | N839262 | 1 | CAP | 42,9 Lei | |
| 11 | N125628 | 1 | SCREW TENSION | 6,4 Lei | |
| 12 | 330065-06 | 7 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
| 13 | N127049 | 1 | GRIP GEARCASE CAP (MOULD) | 8,8 Lei | |
| 13 | N127069 | 1 | SERVICE KIT 120V. D25961 | 1633,1 Lei | |
| 14 | N119853 | 1 | TORSION SPRING | 7,5 Lei | |
| 15 | N095820 | 1 | PIN 6MM (purch) | 15,5 Lei | |
| 16 | N141827 | 2 | SA SCREW ALLEN HEAD M5X16 | 5,3 Lei | |
| 17 | N915019 | 1 | SERVICE KIT BLADE CLAMP V3 RIGHT | 90,6 Lei | |
| 20 | N915018 | 1 | SERVICE KIT BLADE CLAMP V3 LEFT | 90,6 Lei | |
| 31 | N093430 | 2 | SEAL SHAFT | 15,5 Lei | |
| 32 | N077123 | 1 | FRONT BEARING | 42,9 Lei | |
| 33 | 323711-41 | 1 | RING-O, 38X2.5 | 4,7 Lei | |
| 34 | N233863 | 2 | SA PACKED RECIP SHAFT ALLIGATR (SERVICE) | 258,4 Lei | |
| 35 | N233864 | 2 | SA PACKED DRIVE BEARING (SERVICE) | 38,6 Lei | |
| 36 | N093431 | 1 | HOUSING SEAL | 15,5 Lei | |
| 37 | N233865 | 1 | SA PACKED GCASE COVER AND BRGS (SERVICE) | 283,3 Lei | |
| 38 | 324007-11 | 9 | SCREW, PAN HEAD M5X18 | 5,3 Lei | |
| 39 | 577744-00 | 1 | O RING, 26 X 2 HNBR | 13 Lei | |
| 40 | N077124 | 1 | REAR BEARING | 26,1 Lei | |
| 41 | N233866 | 1 | SA PACKED GCASE AND BRGS (SERVICE) | 357,2 Lei | |
| 42 | N165967 | 1 | RING, 27.5 X 2.5 | 4,7 Lei | |
| 43 | N097710 | 1 | FAN BAFFLE (MOULD) | 22,4 Lei | |
| 44 | 330003-64 | 1 | BEARING, BALL | 31,6 Lei | |
| 45 | N233867 | 1 | SA PKD ARMATURE ALLIGATOR 230V (SERVICE) | 398,3 Lei | |
| 46 | 330003-60 | 1 | BEARING BALL | 17,4 Lei | |
| 47 | 330065-21 | 2 | SCREW, PLASTIC THREAD FORM M4*50 | 4,7 Lei | |
| 48 | N233869 | 1 | FIELD 230V | 384 Lei | |
| 49 | N088950 | 1 | MOTOR HOUSING (MOULD) | 59,2 Lei | |
| 50 | N233871 | 1 | SA PACKED BRUSH CARD 230V (SERVICE) | 72 Lei | |
| 62 | 1007732-00 | 1 | COVER, BEARING | 4,7 Lei | |
| 64 | N114803 | 1 | CAP, BALL BEARING (MOULD) | 8,8 Lei | |
| 65 | 330065-08 | 11 | SCREW M4X18 | 4,7 Lei | |
| 66 | 324119-02 | 1 | SCREW, M5 X 12 | 6,4 Lei | |
| 67 | N089033 | 1 | END CAP | 26,1 Lei | |
| 69 | N092849 | 1 | LOCK OFF BUTTON PUSH (MOULD) | 20,4 Lei | |
| 70 | N113779 | 1 | ALLIGATOR WIRE HOLDER (MOULD) | 15,5 Lei | |
| 71 | N097616 | 1 | TENSION SPRING | 5,3 Lei | |
| 72 | N174721 | 1 | DEFOND SWITCH BGV 2122-031 | 98,8 Lei | |
| 73 | N454961 | 1 | SA PACKED HANDLE SET (SERVICE) | 59,2 Lei | |
| 74 | NA073534 | 1 | CORD PROTECTOR | 7,5 Lei | |
| 75 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,7 Lei | |
| 78 | 582319-49 | 1 | CORD SET QS RING TERMINAL | 90,6 Lei | |
| 79 | N194430 | 4 | SCREW UNC 6/32 INCH X 4.7 | 4,7 Lei | |
| 100 | 325882-00 | 1 | SLIDER. REINIGUNG | 7,5 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 53,4 Lei | |
| 817 | N381771 | 1 | LABEL CORRECT BLADES ONLY | 4,7 Lei |
