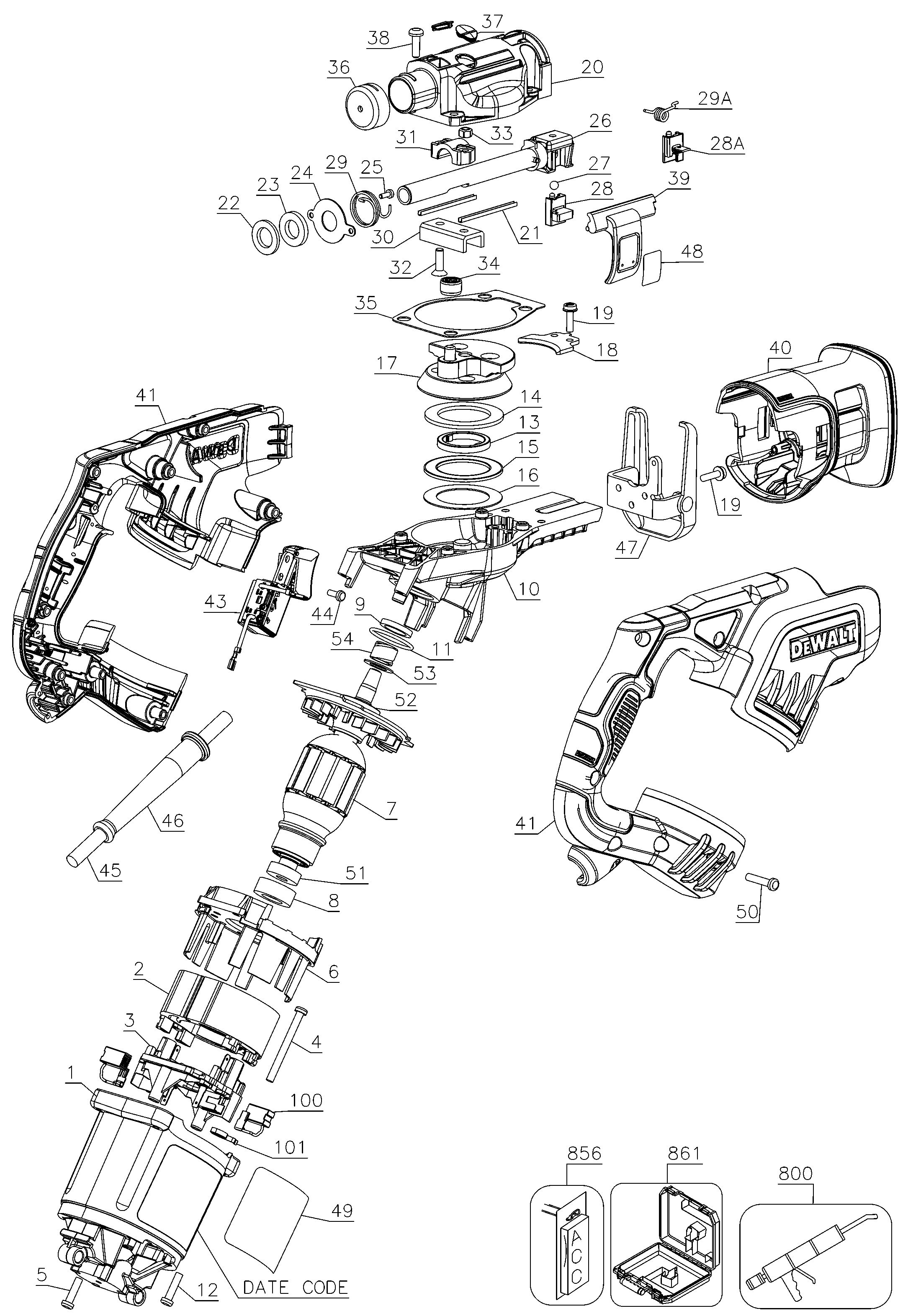

DEWALT CORDLESS RECIPROCATING SAW Type 1
SKU Produs: DWE357K
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N115655 | 1 | FIELDCASE | 41,93 Lei | |
| 2 | 448719-81SV | 1 | FIELD 230V | 96,56 Lei | |
| 28A | N252639 | 1 | SLIDER | 30,87 Lei | |
| 29A | N426742 | 1 | SPRING | 6,23 Lei | |
| 3 | N159216 | 1 | BRUSH PLATE SA | 56,4 Lei | |
| 3 | N402490 | 1 | BRUSH SA | 57,81 Lei | |
| 4 | 330019-50 | 1 | SCREW | 4,57 Lei | |
| 5 | 330019-32 | 11 | SCREW,PLASTITE | 4,57 Lei | |
| 6 | N115654 | 1 | BAFFLE FAN | 17,02 Lei | |
| 7 | N195828 | 1 | ARMATURE SA | 276,84 Lei | |
| 8 | 694432 | 1 | HOLDER BEARING | 4,57 Lei | |
| 9 | N143636 | 1 | FELT SEAL | 6,23 Lei | |
| 10 | N195818 | 1 | GEARCASE SA | 200,99 Lei | |
| 11 | N129171 | 1 | O RING | 4,57 Lei | |
| 12 | N130874 | 4 | SCREW | 4,57 Lei | |
| 13 | N143177 | 1 | SPACER | 6,23 Lei | |
| 14 | N124072 | 1 | WASHER THRUST | 25,54 Lei | |
| 15 | N115646 | 1 | THRUST BEARING | 17,02 Lei | |
| 16 | N115647 | 1 | WASHER THRUST | 15,12 Lei | |
| 17 | N195823 | 1 | GEAR SA | 181,55 Lei | |
| 18 | N115642 | 1 | THRUST PLATE | 7,37 Lei | |
| 19 | 142940-00 | 5 | SCREW | 4,57 Lei | |
| 20 | N195829 | 1 | GEARCASE COVER SA | 70,39 Lei | |
| 21 | 621979-00 | 2 | STRIP | 4,57 Lei | |
| 22 | 618733-00 | 1 | SEAL | 7,37 Lei | |
| 23 | 618477-00 | 1 | FELT SEAL | 4,57 Lei | |
| 24 | N020720 | 1 | COVERPLATE | 5,21 Lei | |
| 25 | 330045-43 | 1 | SCREW TAPTITE | 4,57 Lei | |
| 26 | N026647 | 1 | SHAFT SA | 200,99 Lei | |
| 27 | 000903-00 | 1 | BALL | 37,73 Lei | |
| 28 | 622647-00 | 1 | SLIDER | 21,85 Lei | |
| 29 | 622659-00 | 1 | SPRING TORSION | 4,57 Lei | |
| 30 | 658115-00 | 1 | YOKE | 25,54 Lei | |
| 31 | 617000-00 | 1 | SADDLE | 19,95 Lei | |
| 32 | 622486-00 | 2 | SCREW | 4,57 Lei | |
| 33 | 622485-00 | 2 | LOCK NUT | 4,57 Lei | |
| 34 | N021857 | 1 | BEARING | 25,54 Lei | |
| 34 | N021905 | 1 | BALL STEEL | 4,57 Lei | |
| 35 | N115641 | 1 | GASKET | 6,23 Lei | |
| 36 | N115637 | 1 | CAP | 7,37 Lei | |
| 37 | N131037 | 2 | COVER | 4,57 Lei | |
| 38 | 144457-02 | 4 | SCREW | 4,57 Lei | |
| 39 | N115631 | 1 | LEVER SA | 21,85 Lei | |
| 40 | N115626 | 1 | BOOT | 52,22 Lei | |
| 41 | N115623 | 1 | CLAMSHELL SET | 68,7 Lei | |
| 43 | N209032 | 1 | SWITCH SA | 130,35 Lei | |
| 44 | 330019-01 | 1 | Screw M3.5 X9.5 | 4,57 Lei | |
| 45 | N133544 | 1 | CORDSET (EURO) | 96,56 Lei | |
| 46 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 47 | N226256 | 1 | SHOE SA | 52,22 Lei | |
| 48 | N145237 | 1 | LABEL | 6,4 Lei | |
| 49 | N132589 | 1 | RATING PLATE | 14,2 Lei | |
| 50 | 330019-13 | 9 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 51 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 52 | 605040-20 | 1 | Ball Brg | 17,02 Lei | |
| 53 | N166858 | 1 | WASHER FELT | 5,21 Lei | |
| 54 | N172838 | 1 | COLLAR | 10,29 Lei | |
| 100 | N501035 | 2 | BRUSH 230V | 37,73 Lei | |
| 101 | 383387-00 | 2 | BRUSH SPRING DW309K | 12,71 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei | |
| 861 | N152704 | 1 | KITBOX | 157,92 Lei |
