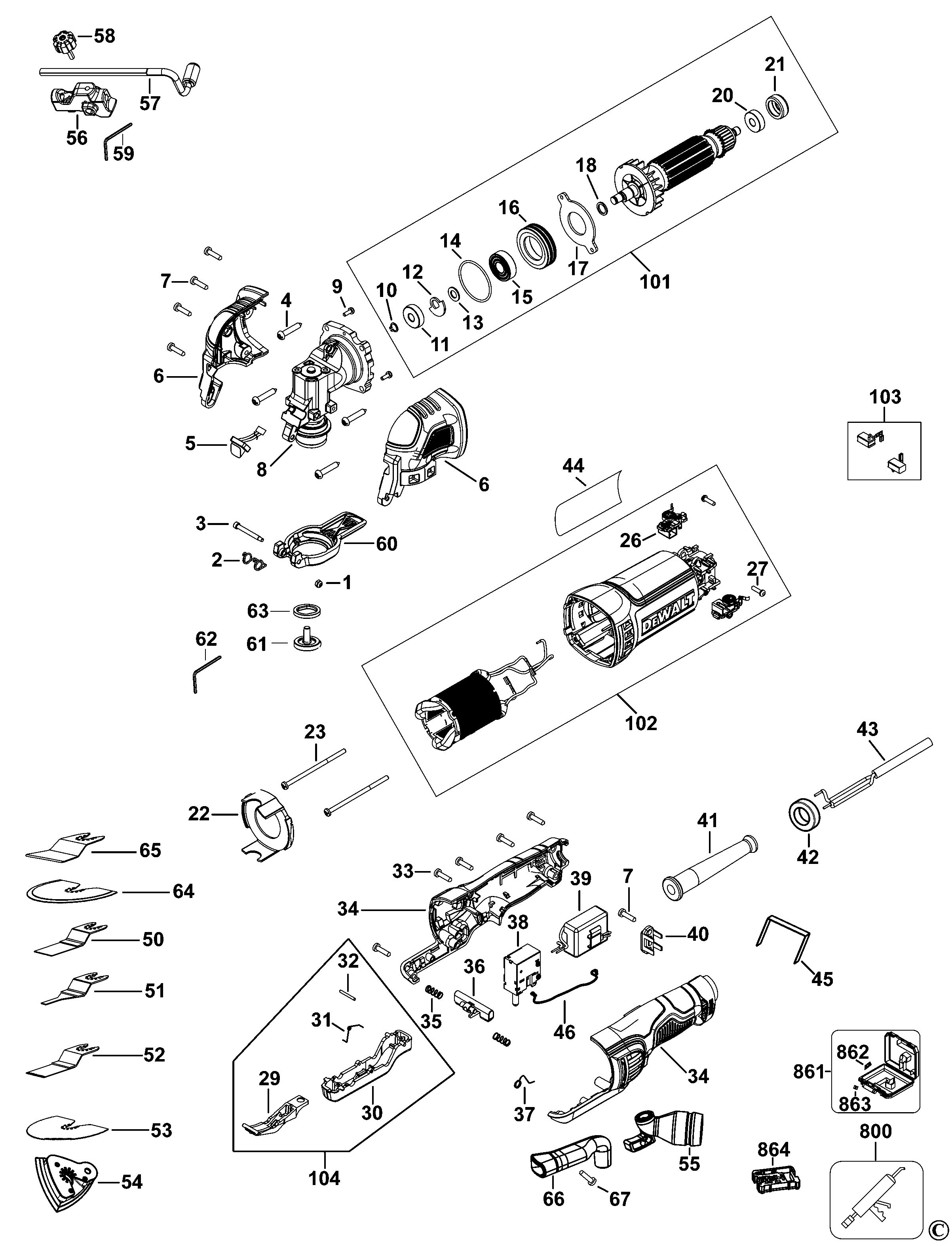

DEWALT MULTITOOL (Type 1)
SKU Produs: DWE315 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N243985 | 1 | ELASTIC STOP NUT | 4,57 Lei | |
| 2 | N140357 | 1 | TORSION SPRING | 4,57 Lei | |
| 3 | N175484 | 1 | SCREW | 4,57 Lei | |
| 4 | 330065-09 | 4 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 5 | N174364 | 1 | AC MULTI TOOL SWITCH | 25,54 Lei | |
| 6 | N244602 | 1 | SA HEAD BOX MASK | 30,87 Lei | |
| 6 | N244981 | 1 | RATING LABEL | 4,57 Lei | |
| 6 | N245000 | 1 | RATING LABEL | 4,57 Lei | |
| 7 | 330019-03 | 5 | Screw M3.5X16 T15 | 4,57 Lei | |
| 8 | N341719 | 1 | HEAD SA | 331,47 Lei | |
| 9 | 330045-43 | 2 | SCREW TAPTITE | 4,57 Lei | |
| 10 | N146423 | 1 | RETAINING CLIP | 4,57 Lei | |
| 11 | N140406 | 1 | BEARING | 21,85 Lei | |
| 12 | N146420 | 1 | BALANCE RING | 4,57 Lei | |
| 13 | N146421 | 1 | WASHER | 4,57 Lei | |
| 14 | N150641 | 1 | O RING | 4,57 Lei | |
| 15 | N129813-03 | 1 | BEARING,BALL HUAYANG MFG 6000 | 15,12 Lei | |
| 16 | N140388 | 1 | BEARING SEAT | 17,02 Lei | |
| 17 | N146419 | 1 | MOTOR PLATE | 6,23 Lei | |
| 18 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 20 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 21 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 22 | N156660 | 1 | BAFFLE FAN | 5,21 Lei | |
| 23 | 330065-29 | 2 | Screw Plstc THD Form M3.5X65 T15 | 4,57 Lei | |
| 26 | N174542 | 2 | BRUSH HOLDER SA | 13,85 Lei | |
| 27 | 593478-00 | 2 | SCREW OT M3X8 | 4,57 Lei | |
| 29 | N158999 | 1 | TRIGGER | 4,57 Lei | |
| 30 | N213752 | 1 | TRIGGER ASSEMBLY | 13,85 Lei | |
| 31 | N230817 | 1 | SPRING | 4,57 Lei | |
| 32 | N230818 | 1 | PIN | 4,57 Lei | |
| 33 | 90611830 | 5 | SCREW | 4,57 Lei | |
| 34 | N244599 | 1 | HOUSING HANDLE | 30,87 Lei | |
| 35 | N157740 | 2 | LOCK SPRING | 4,57 Lei | |
| 36 | N157511 | 1 | LOCK BUTTON | 4,57 Lei | |
| 37 | N230816 | 1 | TORSION SPRING | 4,57 Lei | |
| 38 | N059508 | 1 | 230V RAD Variable Speed Switch | 96,56 Lei | |
| 39 | N175102 | 1 | AC MULTI TOOL CONTROL MODULE 230V | 120,82 Lei | |
| 41 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 42 | N292620 | 1 | RING | 17,02 Lei | |
| 43 | N235923 | 1 | CORD PWR SPLY(EURO) | 80,04 Lei | |
| 44 | N247779 | 1 | RATING PLATE | 4,57 Lei | |
| 45 | N363619 | 1 | INSULATION PAPER | 4,57 Lei | |
| 46 | N225478 | 1 | SA WIRE HARNESS FOR EMI | 6,23 Lei | |
| 50 | N333599 | 1 | BLADE | 80,04 Lei | |
| 51 | N333619 | 1 | BLADE | 57,81 Lei | |
| 52 | N275319 | 1 | BLADE WOOD | 57,81 Lei | |
| 53 | N251926 | 1 | SEMICIRCLE BLADE | 57,81 Lei | |
| 54 | N271240 | 1 | SA EURO PLATEN | 57,81 Lei | |
| 55 | N277679 | 1 | DUST PORT | 15,12 Lei | |
| 56 | N275350 | 1 | SA ACCESSORY BLOCK | 37,73 Lei | |
| 57 | N275341 | 1 | Straight Cut Depth | 21,85 Lei | |
| 58 | N278801 | 1 | KNOB SA | 5,21 Lei | |
| 59 | N285879 | 1 | SA WRENCH | 7,37 Lei | |
| 60 | N159295 | 1 | CLAMP LEVER | 21,85 Lei | |
| 61 | N544197 | 1 | OUTER FLANGE | 17,02 Lei | |
| 62 | 90584745 | 1 | WRENCH SPECIAL | 7,37 Lei | |
| 63 | N440293 | 1 | FLANGE | 4,57 Lei | |
| 64 | N342939 | 1 | 1/8 INCH CARBIDE GROUT BLADE | 96,56 Lei | |
| 65 | N251931 | 1 | BLADE - RIGID SCRAPER | 15,12 Lei | |
| 66 | N278060 | 1 | DUST PIPE | 6,23 Lei | |
| 66 | N278481 | 1 | RATING PLATE DCH254-XE TY01 | 10 Lei | |
| 67 | N291362 | 1 | SA SCREW | 4,57 Lei | |
| 101 | N342740 | 1 | ARMATURE SA | 318,26 Lei | |
| 102 | N342739 | 1 | FIELDCASE SA | 331,47 Lei | |
| 103 | N343600 | 1 | BRUSH PAIR 230V | 21,85 Lei | |
| 104 | N213752 | 1 | TRIGGER ASSEMBLY | 13,85 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | N278059 | 1 | INSERT | 57,81 Lei |
