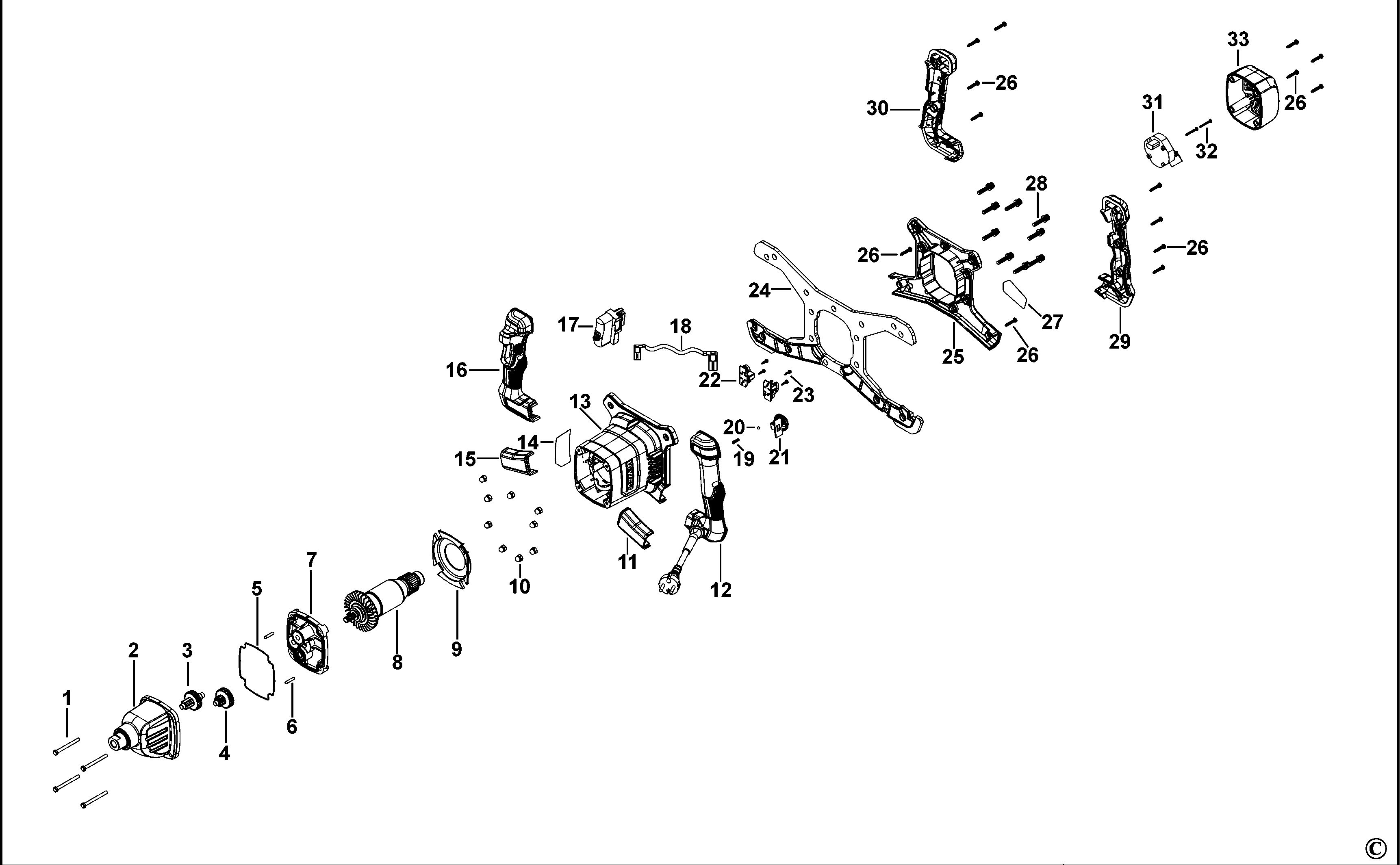

DEWALT MIXER (Type 1)
SKU Produs: DWD241 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N681077 | 4 | SCREW | 13,85 Lei | |
| 2 | N681002 | 1 | GEARCASE SA | 300,47 Lei | |
| 3 | N681016 | 1 | GEAR SA | 52,22 Lei | |
| 4 | N681025 | 1 | GEAR SA | 41,93 Lei | |
| 5 | N681020 | 1 | GASKET | 6,23 Lei | |
| 6 | N681019 | 2 | PIN | 6,23 Lei | |
| 7 | N681012 | 1 | GEARCASE COVER SA | 96,56 Lei | |
| 8 | N681023 | 1 | ARMATURE 230V | 240,38 Lei | |
| 9 | N681038 | 1 | BAFFLE FAN | 15,12 Lei | |
| 10 | N499349 | 9 | NUT M6 | 5,21 Lei | |
| 11 | N681063 | 1 | COVER LH | 30,87 Lei | |
| 12 | N747737 | 1 | HANDLE SA LH | 157,92 Lei | |
| 13 | N681040 | 1 | FIELDCASE SA | 252,58 Lei | |
| 14 | N715267 | 1 | RATING PLATE | 7,37 Lei | |
| 15 | N681065 | 1 | COVER RH | 30,87 Lei | |
| 16 | N681059 | 1 | HANDLE SA RH | 37,73 Lei | |
| 17 | N681046 | 1 | SWITCH | 169,36 Lei | |
| 18 | N732160 | 1 | LEAD SA | 15,12 Lei | |
| 19 | N691084 | 1 | SPRING | 4,57 Lei | |
| 20 | N691085 | 1 | BALL | 4,57 Lei | |
| 21 | N747725 | 1 | SPEED REGULATOR | 41,93 Lei | |
| 22 | N681075 | 2 | BRUSH AND HOLDER 230V | 57,81 Lei | |
| 23 | N681079 | 4 | SCREW | 4,57 Lei | |
| 24 | N747726 | 1 | SUPPORT PLATE | 195,02 Lei | |
| 25 | N691086 | 1 | HOUSING REAR | 57,81 Lei | |
| 26 | N498377 | 14 | SCREW | 7,37 Lei | |
| 27 | N715276 | 1 | LABEL | 7,37 Lei | |
| 28 | N499344 | 9 | SCREW | 13,85 Lei | |
| 29 | N681060 | 1 | COVER LH | 37,73 Lei | |
| 30 | N681058 | 1 | COVER RH | 37,73 Lei | |
| 31 | N681072 | 1 | PCB 230V | 252,58 Lei | |
| 32 | N681080 | 2 | SCREW | 4,57 Lei | |
| 33 | N681073 | 1 | END CAP | 57,81 Lei |
