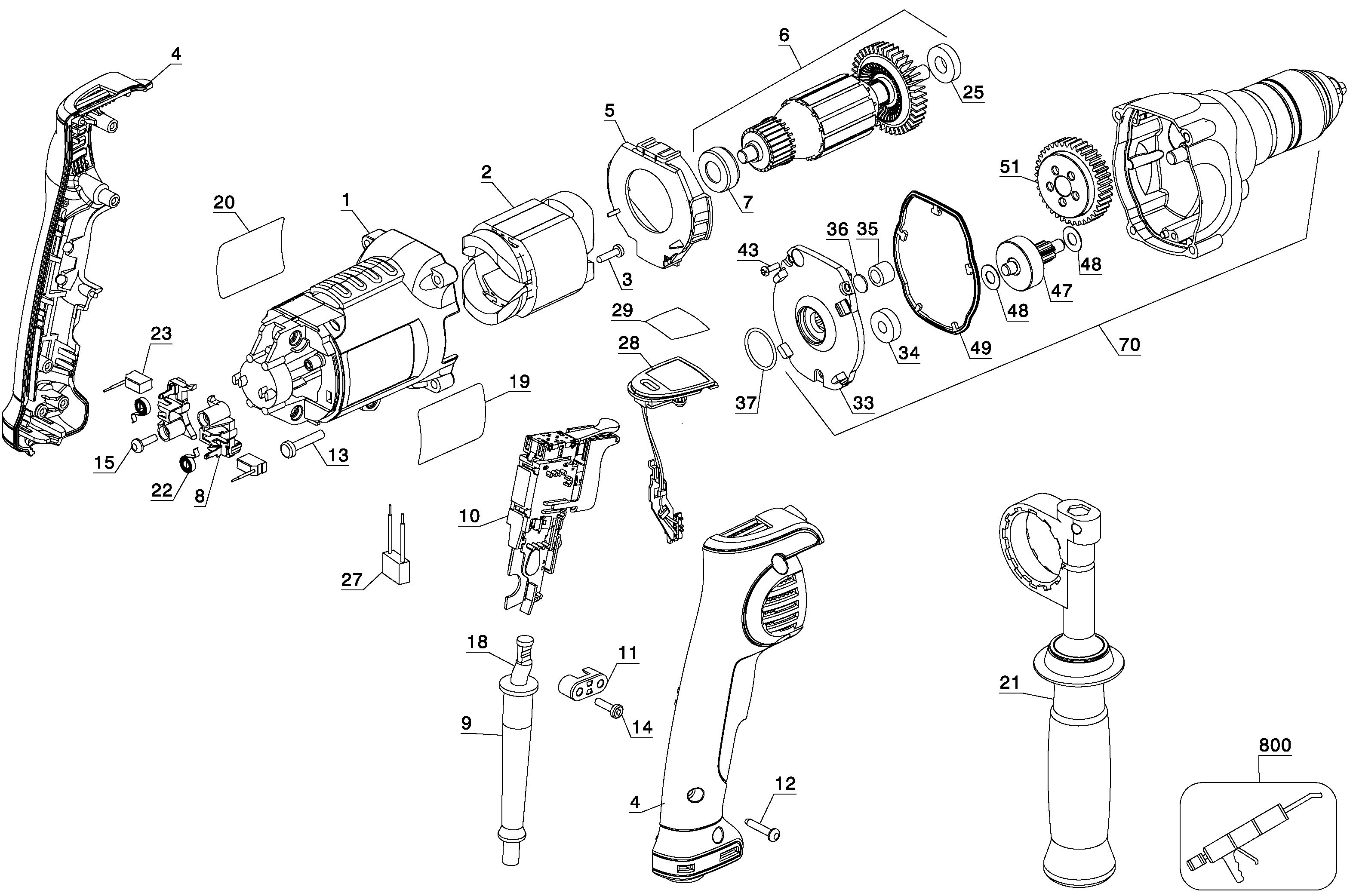

DEWALT ROTARY DRILL Type 1
SKU Produs: DWD221
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 639593-01 | 1 | FIELD CASE | 37,73 Lei | |
| 2 | N048009SV | 1 | FIELD 230V | 200,99 Lei | |
| 3 | N068183 | 2 | SCREW | 4,57 Lei | |
| 4 | N028547 | 1 | CLAMSHELL SET | 96,56 Lei | |
| 5 | 641824-00 | 1 | BAFFLE FAN | 7,37 Lei | |
| 6 | 647864-03SV | 1 | ARMATURE SA | 307,21 Lei | |
| 7 | 391032-00 | 1 | SA BEARING AND BOOT | 21,85 Lei | |
| 8 | N028784SV | 2 | BRUSH HOLDER | 120,82 Lei | |
| 9 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 10 | N034130 | 1 | SWITCH KIT 230V | 276,84 Lei | |
| 11 | 655058-00 | 1 | CORD CLAMP | 5,21 Lei | |
| 12 | 330065-31 | 4 | SCREW | 4,57 Lei | |
| 13 | 330045-15 | 4 | Screw Metal | 4,57 Lei | |
| 14 | 330065-07 | 2 | SCREW | 4,57 Lei | |
| 15 | 176951-00 | 2 | SCREW | 4,57 Lei | |
| 18 | 330120-92 | 1 | CORDSET (EURO) | 96,56 Lei | |
| 19 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,57 Lei | |
| 21 | 663029-00 | 1 | HANDLE SIDE SA | 80,04 Lei | |
| 22 | 662999-01 | 2 | SPRING | 8,64 Lei | |
| 23 | N032702 | 2 | BRUSH | 15,12 Lei | |
| 25 | N339299 | 1 | BEARING | 17,02 Lei | |
| 27 | N075085 | 1 | CAPACITOR | 41,93 Lei | |
| 28 | 656320-00 | 1 | MODULE | 80,04 Lei | |
| 29 | N093771 | 1 | LABEL | 15,12 Lei | |
| 33 | 645400-05SV | 1 | GEARCASE COVER | 120,82 Lei | |
| 34 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 35 | 330004-02 | 1 | BEARING, NEEDLE | 8,64 Lei | |
| 36 | 652185-00 | 1 | THRUST PLATE | 4,57 Lei | |
| 37 | 099014-04 | 1 | O RING | 4,57 Lei | |
| 47 | 656364-00 | 1 | INTER SHAFT SA | 181,55 Lei | |
| 48 | 659185-00 | 2 | WASHER THRUST | 4,57 Lei | |
| 49 | 648761-00 | 1 | SEAL | 8,64 Lei | |
| 59 | 652781-02 | 1 | SPACER | 17,02 Lei | |
| 70 | N194711 | 1 | GEARCASE SA | 819,98 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei |
