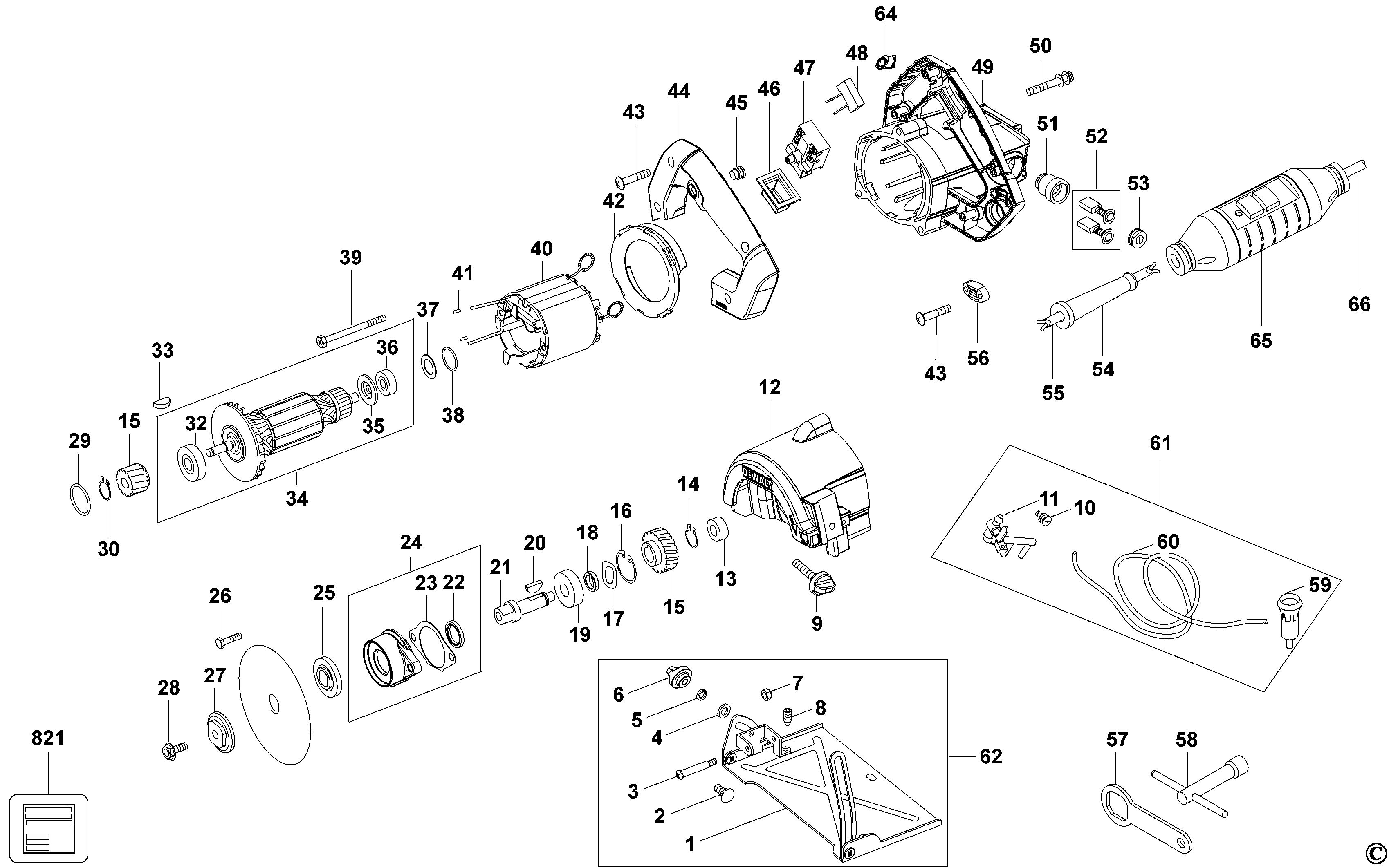

DEWALT TILE CUTTER (Type 1)
SKU Produs: DWC410 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N016657 | 1 | BASE SA | 57,81 Lei | |
| 2 | N016658 | 1 | SCREW | 4,57 Lei | |
| 3 | N016659 | 1 | BOLT | 4,57 Lei | |
| 4 | N016660 | 1 | WASHER | 4,57 Lei | |
| 5 | N016661 | 1 | WASHER SPRING | 4,57 Lei | |
| 6 | N016662 | 1 | WASHER | 4,57 Lei | |
| 7 | N017088 | 1 | NUT M5 | 4,57 Lei | |
| 8 | N017089 | 2 | NUT | 4,57 Lei | |
| 9 | N017178 | 1 | SCREW | 15,12 Lei | |
| 10 | N018154 | 1 | SCREW | 4,57 Lei | |
| 11 | N018155 | 1 | VALVE | 13,85 Lei | |
| 12 | N017179 | 1 | GEARCASE | 96,56 Lei | |
| 13 | N017181 | 1 | BEARING | 21,85 Lei | |
| 14 | N017182 | 1 | RING | 4,57 Lei | |
| 15 | N028885 | 1 | GEAR AND SHAFT | 57,81 Lei | |
| 16 | N017184 | 1 | WASHER | 4,57 Lei | |
| 17 | N017185 | 1 | WASHER | 4,57 Lei | |
| 18 | N017186 | 1 | SLEEVE | 5,21 Lei | |
| 19 | N017187 | 1 | BEARING ( 6201-Z2 ) | 21,85 Lei | |
| 20 | N017188 | 1 | KEY | 4,57 Lei | |
| 21 | N017189 | 1 | OUTPUT SHAFT | 52,22 Lei | |
| 22 | N017192 | 1 | SEAL | 13,85 Lei | |
| 23 | N017190 | 1 | SEAL | 4,57 Lei | |
| 24 | N017191 | 1 | GEARCASE COVER | 25,54 Lei | |
| 25 | N017193 | 1 | Inner Flange | 15,12 Lei | |
| 26 | N017194 | 1 | BOLT | 4,57 Lei | |
| 27 | N017197 | 1 | OUTER FLANGE | 13,85 Lei | |
| 28 | N017198 | 1 | BOLT | 4,57 Lei | |
| 29 | N017200 | 1 | O RING | 6,23 Lei | |
| 30 | N017203 | 1 | RETAINER | 4,57 Lei | |
| 32 | N017206 | 1 | BEARING | 30,87 Lei | |
| 33 | N017208 | 1 | KEY | 4,57 Lei | |
| 34 | N028854 | 1 | ARMATURE SA | 240,38 Lei | |
| 35 | N017210 | 1 | SHIELD | 4,57 Lei | |
| 36 | N017211 | 1 | BEARING | 21,85 Lei | |
| 37 | N017212 | 1 | WASHER | 4,57 Lei | |
| 38 | N017213 | 1 | O RING | 4,57 Lei | |
| 39 | N017214 | 2 | PLASTIC SCREW | 4,57 Lei | |
| 40 | N017215 | 1 | FIELD SA | 130,35 Lei | |
| 41 | N028877 | 2 | TERMINAL | 4,57 Lei | |
| 42 | N017631 | 1 | BAFFLE | 7,37 Lei | |
| 43 | N017632 | 1 | SCREW | 4,57 Lei | |
| 44 | N017633 | 1 | HANDLE COVER | 37,73 Lei | |
| 45 | N017634 | 1 | CAP | 4,57 Lei | |
| 46 | N017635 | 1 | COVER | 10,29 Lei | |
| 47 | N017636 | 1 | SWITCH | 70,39 Lei | |
| 48 | N017637 | 1 | CAPACITOR | 5,21 Lei | |
| 49 | N017638 | 1 | FIELDCASE | 181,55 Lei | |
| 50 | N017639 | 3 | SCREW | 5,21 Lei | |
| 51 | N017640 | 2 | BRUSH HOLDER | 21,85 Lei | |
| 52 | N028884 | 1 | BRUSH PAIR 230V | 25,54 Lei | |
| 53 | N017642 | 2 | BRUSH COVER | 4,57 Lei | |
| 54 | N018149 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 55 | 633302-00 | 1 | CORD | 169,36 Lei | |
| 56 | N018151 | 1 | CORD CLAMP | 4,57 Lei | |
| 57 | N016342 | 1 | SPANNER | 5,21 Lei | |
| 58 | N016341 | 1 | SOCKET | 10,29 Lei | |
| 59 | N018152 | 1 | CONNECTOR | 4,57 Lei | |
| 60 | N018153 | 1 | PIPE | 12,71 Lei | |
| 61 | N028878 | 1 | KIT SA | 25,54 Lei | |
| 62 | N028853 | 1 | BASE SA | 70,39 Lei | |
| 64 | N035226 | 1 | SEAL | 4,57 Lei | |
| 65 | 632097-00 | 1 | SWITCH SAFETY | 349,13 Lei | |
| 66 | 633328-00 | 1 | CORDSET (EURO) | 57,81 Lei | |
| 821 | N068389 | 1 | RATING PLATE | 7,5 Lei |
