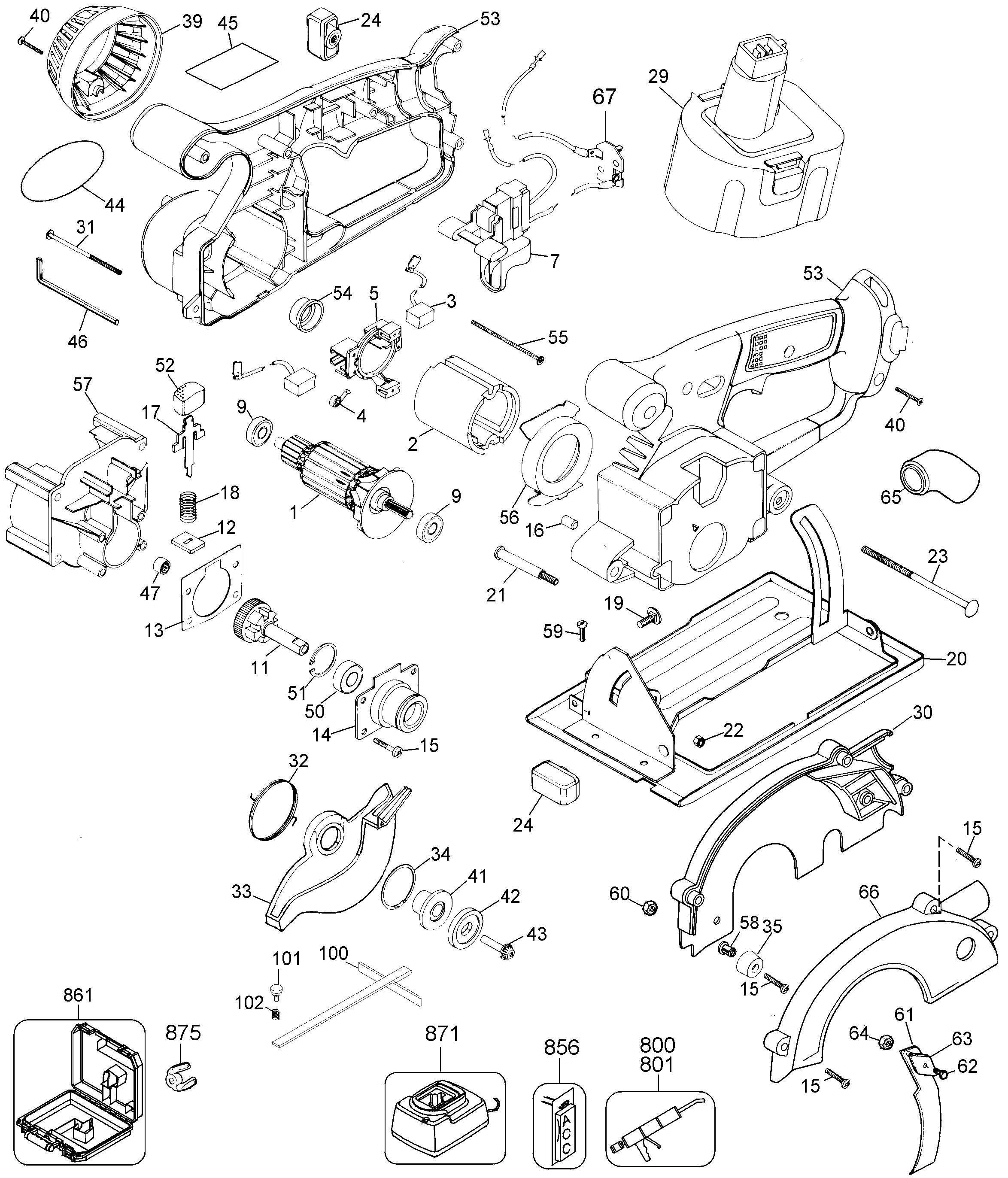

DEWALT TRIM SAW Type 1
SKU Produs: DW936
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 387558-01 | 2 | BRUSH AND LEAD | 14,8 Lei | |
| 4 | 445860-00 | 2 | SPRING, BRUSH | 4,7 Lei | |
| 9 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 15 | 330045-06 | 8 | SCREW, METAL THD FRM,M4X16 T20 | 4,7 Lei | |
| 19 | N091970 | 1 | CARRIAGE BOLT | 4,7 Lei | |
| 22 | 148641-00 | 1 | LOCK NUT | 4,7 Lei | |
| 23 | 098128-97 | 1 | BOLT | 4,5 Lei | |
| 24 | 395889-00 | 2 | SA KNOB | 4,7 Lei | |
| 31 | 398987-00 | 4 | SCREW | 4,7 Lei | |
| 33 | 381130-00 | 1 | GUARD LOWER | 21,3 Lei | |
| 34 | 150383-00 | 1 | RETAINER | 5,3 Lei | |
| 40 | 330019-04 | 7 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,7 Lei | |
| 43 | 150384-00 | 1 | BLADE BOLT | 7,5 Lei | |
| 46 | 497570-02 | 1 | KEY kc1440 | 4,7 Lei | |
| 47 | 093128-00 | 1 | NEEDLE BEARING | 7,5 Lei | |
| 50 | 605040-15 | 1 | BEARING, BALL | 17,4 Lei | |
| 52 | 145350-00 | 1 | BUTTON | 4,7 Lei | |
| 54 | 445217-02 | 1 | SLEEVE | 5,3 Lei | |
| 64 | 330021-01 | 2 | NUT, 6KT M6 ISO7040 | 17,4 Lei | |
| 100 | 381091-01 | 1 | FENCE DW936 | 17,4 Lei | |
| 861 | 624807-01 | 1 | SOFT TOOL BAG | 148,5 Lei |
