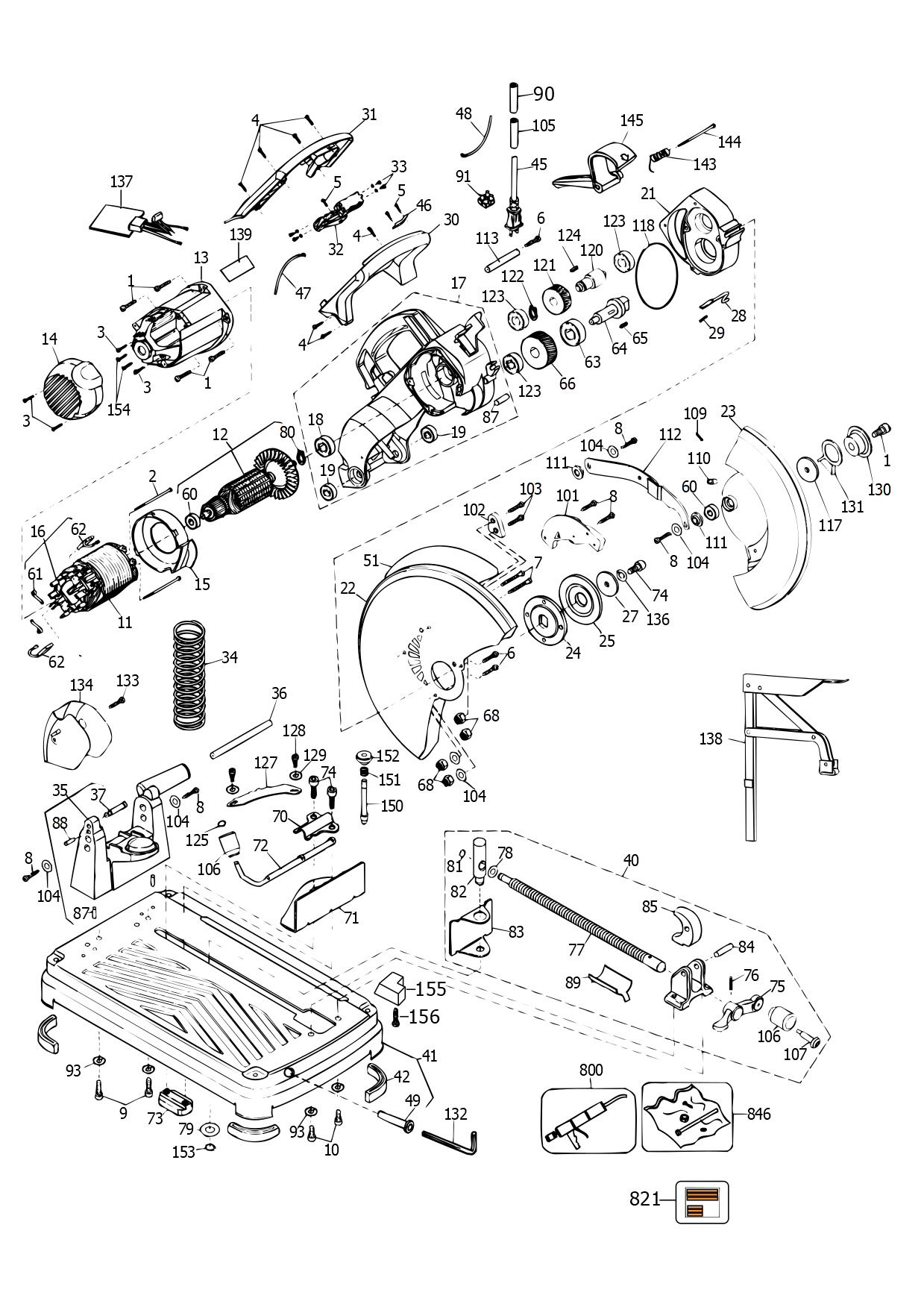

DEWALT CHOP SAW - METAL CUTTING (Type 15)
SKU Produs: DW872 /Type: 15
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330045-16 | 5 | Screw Metal | 4,57 Lei | |
| 2 | 330019-33 | 2 | SCREW | 4,57 Lei | |
| 3 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 4 | 330019-14 | 7 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 5 | 330019-02 | 3 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 6 | 330045-50 | 4 | SCREW | 4,57 Lei | |
| 7 | 330045-51 | 2 | SCREW | 4,57 Lei | |
| 8 | 330045-49 | 6 | SCREW | 4,57 Lei | |
| 9 | 098123-25 | 2 | SCREW, CAP, SOCKET | 4,57 Lei | |
| 10 | 098123-16 | 2 | SCREW | 4,57 Lei | |
| 11 | NA024587 | 1 | FIELD SA | 307,21 Lei | |
| 12 | NA024589 | 1 | ARMATURE SA | 383,69 Lei | |
| 13 | 383151-00 | 1 | FIELD CASE | 57,81 Lei | |
| 14 | 392284-00 | 1 | END CAP | 12,71 Lei | |
| 15 | 383167-00 | 1 | BAFFLE FAN | 19,95 Lei | |
| 16 | 383685-01 | 1 | BRUSH HOLDER SA | 70,39 Lei | |
| 17 | 386628-00 | 1 | GEARCASE SA | 264,01 Lei | |
| 18 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 19 | 330003-25 | 1 | BEARING | 19,95 Lei | |
| 21 | 385286-01 | 1 | GEARCASE COVER | 120,82 Lei | |
| 22 | 383164-02 | 1 | GUARD UPPER | 120,82 Lei | |
| 23 | 388432-00 | 1 | GUARD LOWER | 169,36 Lei | |
| 24 | 607173-00 | 1 | Inner Flange | 25,54 Lei | |
| 25 | 395925-00 | 1 | OUTER FLANGE | 21,85 Lei | |
| 27 | 396972-00 | 1 | WASHER | 7,37 Lei | |
| 28 | 387544-00 | 1 | LOCKING PIN | 8,64 Lei | |
| 29 | 384716-00 | 1 | COMPR. SPRING | 4,57 Lei | |
| 30 | 618290-03 | 1 | HANDLE SWITCH ASSEMBLY HALF | 34,05 Lei | |
| 31 | 618291-02 | 1 | HANDLE SWITCH COVER HLF | 25,54 Lei | |
| 33 | 387746-00 | 4 | Switch Screw | 4,57 Lei | |
| 34 | 387282-00 | 1 | Compr spring | 25,54 Lei | |
| 35 | 388431-00 | 1 | PIVOT | 276,84 Lei | |
| 36 | 383118-00 | 1 | PIVOT SHAFT | 15,12 Lei | |
| 37 | 383148-00 | 1 | LOCK-DOWN PIN | 10,29 Lei | |
| 40 | 395929-00 | 1 | CLAMP SA | 195,02 Lei | |
| 41 | 606269-00 | 1 | BASE | 389,28 Lei | |
| 42 | 383243-00 | 4 | Rubber Foot for SA Base | 6,23 Lei | |
| 45 | 330080-41 | 1 | CORDSET | 120,82 Lei | |
| 46 | 386540-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 47 | 386465-00 | 1 | LEAD WIRE | 4,57 Lei | |
| 48 | 386466-00 | 1 | LEAD WIRE | 4,57 Lei | |
| 49 | 386765-00 | 1 | HOLDER TOOL | 7,37 Lei | |
| 51 | 397340-00 | 1 | BRAND LABEL | 12,71 Lei | |
| 60 | 330003-17 | 1 | BEARING BALL (CE) | 19,95 Lei | |
| 61 | 384612-00 | 2 | TORSION SPRING | 4,57 Lei | |
| 62 | 384613-01 | 2 | BRUSH ASSEMBLY | 19,95 Lei | |
| 63 | 330003-49 | 1 | BALL BEARING | 52,22 Lei | |
| 64 | 395842-00 | 1 | SPINDLE | 96,56 Lei | |
| 65 | 382675-01 | 1 | WOODRUFF KEY | 4,57 Lei | |
| 66 | 382680-00 | 1 | Gear | 300,47 Lei | |
| 68 | 330021-06 | 4 | STOP NUT | 4,57 Lei | |
| 70 | 391459-00 | 1 | PLATE LOCK | 25,54 Lei | |
| 71 | 395930-01 | 1 | FENCE SA | 349,13 Lei | |
| 72 | 395930-01 | 1 | FENCE SA | 349,13 Lei | |
| 73 | 383254-00 | 1 | BLOCK, CLAMP | 25,54 Lei | |
| 74 | 383450-00 | 3 | SCREW | 4,57 Lei | |
| 75 | 389658-00 | 1 | HANDLE,CRANK | 70,39 Lei | |
| 76 | 330036-15 | 1 | ROLLPIN | 4,57 Lei | |
| 77 | 398475-00 | 1 | ROD,THREADED | 80,04 Lei | |
| 78 | 384365-00 | 1 | WASHER | 4,57 Lei | |
| 79 | 607592-00 | 1 | WASHER | 4,57 Lei | |
| 80 | 144803-00 | 2 | SEAL RING | 4,57 Lei | |
| 81 | 383169-00 | 1 | Rataining Ring | 4,57 Lei | |
| 82 | 603988-00 | 1 | PIN CS 870 | 21,85 Lei | |
| 83 | 607278-00 | 1 | Jaw vise | 25,54 Lei | |
| 84 | 386525-01 | 1 | Pin Dowel | 4,57 Lei | |
| 85 | 398474-00 | 1 | LOCK,VISE | 41,93 Lei | |
| 87 | 386525-00 | 5 | DOWEL PIN | 4,57 Lei | |
| 88 | 033055-00 | 1 | PLUG,RUBBER | 4,57 Lei | |
| 88 | 36820700 | 1 | WASHER | 4,5 Lei | |
| 89 | 383451-00 | 1 | SADDLE | 4,57 Lei | |
| 90 | 386998-00 | 1 | TUBING PVC | 6,23 Lei | |
| 91 | 320078-00 | 1 | BLOCK TERMINAL | 4,57 Lei | |
| 93 | 098197-09 | 4 | WASHER LOCK | 4,57 Lei | |
| 101 | 388046-00 | 1 | MOUNT | 70,39 Lei | |
| 102 | 388041-00 | 1 | PLATEN | 19,95 Lei | |
| 103 | NA097188 | 2 | SCREW | 4,57 Lei | |
| 104 | 388354-00 | 6 | WASHER | 4,57 Lei | |
| 105 | 386491-00 | 1 | TUBING | 25,54 Lei | |
| 106 | 390567-00 | 2 | KNOB | 5,21 Lei | |
| 107 | 395240-00 | 1 | SCREW | 6,23 Lei | |
| 109 | 388056-00 | 1 | SPRING | 4,57 Lei | |
| 110 | 388048-00 | 1 | STOP RUBBER | 4,57 Lei | |
| 111 | 388049-00 | 2 | SLEEVE | 4,57 Lei | |
| 112 | 388055-00 | 1 | LINK | 34,05 Lei | |
| 113 | 388434-00 | 1 | SPACER | 19,95 Lei | |
| 117 | 383154-00 | 1 | WASHER PLASTIC | 4,57 Lei | |
| 118 | 391485-00 | 1 | O-RING | 4,57 Lei | |
| 120 | 382682-00 | 1 | PINION | 57,81 Lei | |
| 121 | N926720 | 1 | Gear | 106,98 Lei | |
| 122 | 045012-00 | 1 | RETAINER | 4,57 Lei | |
| 123 | 605040-20 | 3 | Ball Brg | 17,02 Lei | |
| 124 | 382675-00 | 1 | SQUARE KEY | 4,57 Lei | |
| 125 | 037653-00 | 1 | P AND R WALRET.RING | 4,57 Lei | |
| 127 | 395930-01 | 1 | FENCE SA | 349,13 Lei | |
| 128 | 330045-04 | 2 | SCREW.TEMP | 4,57 Lei | |
| 129 | 330016-01 | 2 | WASHER | 4,57 Lei | |
| 130 | 391039-00 | 1 | RETAINING PLATE | 4,57 Lei | |
| 131 | 389894-00 | 1 | COVER | 4,57 Lei | |
| 132 | 384717-00 | 1 | Hex Wrench | 13,85 Lei | |
| 133 | 330045-23 | 1 | SCREW | 4,57 Lei | |
| 134 | 390096-00 | 1 | DEFLECTOR | 25,54 Lei | |
| 137 | N271039 | 1 | MODULE | 130,35 Lei | |
| 138 | 391526-00 | 1 | CLAMP | 41,93 Lei | |
| 139 | 394188-00 | 1 | WARNING LABEL | 4,57 Lei | |
| 143 | 383171-00 | 1 | SPRING | 4,57 Lei | |
| 144 | 383172-00 | 1 | BOLT | 4,57 Lei | |
| 145 | 388051-00 | 1 | LEVER LOCK | 7,37 Lei | |
| 150 | 395930-01 | 1 | FENCE SA | 349,13 Lei | |
| 151 | 395930-01 | 1 | FENCE SA | 349,13 Lei | |
| 152 | 395930-01 | 1 | FENCE SA | 349,13 Lei | |
| 153 | 398605-00 | 1 | Ring Retaining | 4,57 Lei | |
| 154 | 562097-10 | 2 | SCREW | 4,57 Lei | |
| 155 | 390839-00 | 1 | STOP RUBBER | 17,02 Lei | |
| 156 | 330045-49 | 1 | SCREW | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 821 | N876273 | 1 | RATING PLATE | 4,57 Lei |
