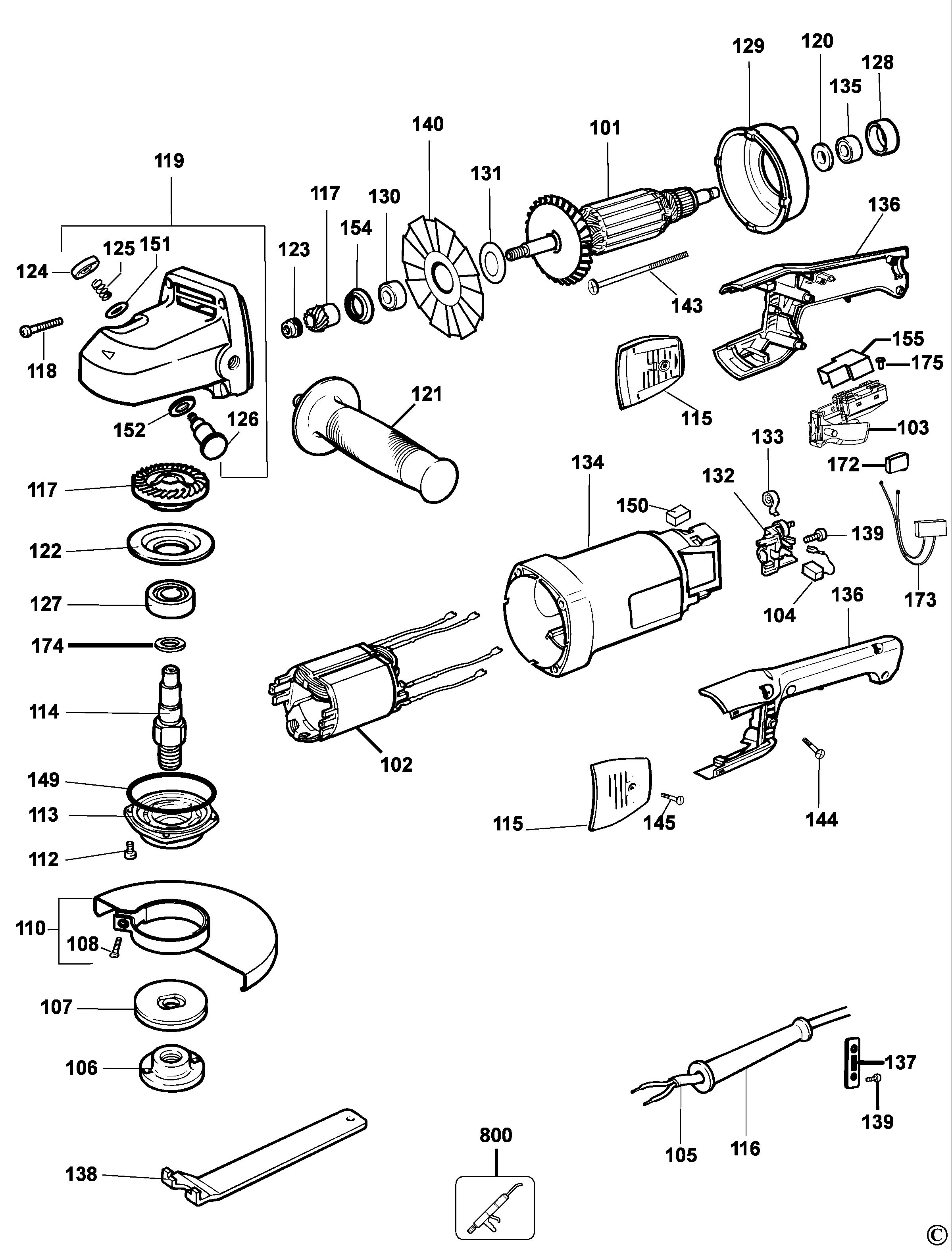

DEWALT ANGLE GRINDER (Type 2)
SKU Produs: DW840 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 102 | N865288 | 1 | FIELD SA | 181,55 Lei | |
| 103 | 613407-01 | 1 | SWITCH | 86,4 Lei | |
| 104 | N088934 | 1 | BRUSH PAIR 230V | 37,73 Lei | |
| 105 | 330120-82 | 1 | CORDSET | 123,6 Lei | |
| 106 | 401678-05 | 1 | WASHER OUTER CLAMP PAINTED | 21,85 Lei | |
| 107 | 403150-01 | 1 | WASHER, CLAMP, INNER | 21,85 Lei | |
| 113 | N072242 | 1 | GEARCASE COVER | 22,4 Lei | |
| 114 | 651999-00 | 1 | SPINDLE | 42,9 Lei | |
| 115 | 402849-00 | 2 | Brush Shield(Brush Cover) DW831 | 6,23 Lei | |
| 116 | 401088-00 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 117 | N520007 | 1 | GEAR AND PINION SA | 96,56 Lei | |
| 118 | 562097-10 | 4 | SCREW | 4,57 Lei | |
| 120 | 398985-00 | 1 | Slinger DW831 | 4,57 Lei | |
| 121 | 562211-00 | 1 | Handle Side(945597-00) DW803/801 | 17,02 Lei | |
| 122 | 398813-00 | 1 | FLANGE | 7,5 Lei | |
| 123 | 393568-00 | 1 | Nut DW831 | 5,21 Lei | |
| 124 | 390705-00 | 1 | Lock Button DW831 | 4,57 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,57 Lei | |
| 126 | 391018-00 | 1 | SPINDLE LOCK | 10,5 Lei | |
| 127 | 605040-22 | 1 | Bearing DW801 | 17,02 Lei | |
| 128 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 129 | 656707-00 | 1 | BAFFLE | 8,8 Lei | |
| 130 | 605040-60 | 1 | Ball Bearing. CW DW831 | 19,95 Lei | |
| 131 | 930753-00 | 1 | Washer DW831 | 4,57 Lei | |
| 132 | 402869-15 | 2 | BRUSH HOLDER SA | 52,22 Lei | |
| 134 | 402871-27 | 1 | FIELDCASE SA | 40,9 Lei | |
| 135 | 605040-03 | 1 | Ball Bearing. CW DW810 | 13,85 Lei | |
| 136 | 402844-11 | 2 | Handle DW831 | 41,93 Lei | |
| 137 | 930103-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 138 | 401680-00 | 1 | WRENCH DW831 | 17,02 Lei | |
| 139 | 562097-00 | 5 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 140 | 403121-01 | 1 | FLANGE | 14,2 Lei | |
| 143 | 562097-12 | 2 | SCREW DW840 | 4,57 Lei | |
| 144 | 562097-03 | 4 | SCREW | 4,57 Lei | |
| 145 | 945280-00 | 2 | Screw Self Drive For Brush Cover ( | 4,57 Lei | |
| 149 | 403123-01 | 1 | O ring DW840 | 4,57 Lei | |
| 150 | 402847-00 | 4 | Damper DW831 | 4,57 Lei | |
| 151 | 403148-00 | 1 | Washer DW831 | 4,57 Lei | |
| 152 | 403149-00 | 1 | O ring DW840 | 4,7 Lei | |
| 154 | 398909-00 | 1 | Retainer DW831 | 12,71 Lei | |
| 155 | 650937-00 | 1 | INSULATION,PAPER | 4,57 Lei | |
| 172 | 620051-00 | 2 | Pad DW831 | 4,57 Lei | |
| 173 | 632218-00 | 1 | SA CAPACITOR | 4,57 Lei | |
| 174 | 641893-00 | 1 | Seal Felt washer DW801 | 4,57 Lei | |
| 175 | 387746-00 | 4 | Switch Screw | 4,57 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei |
