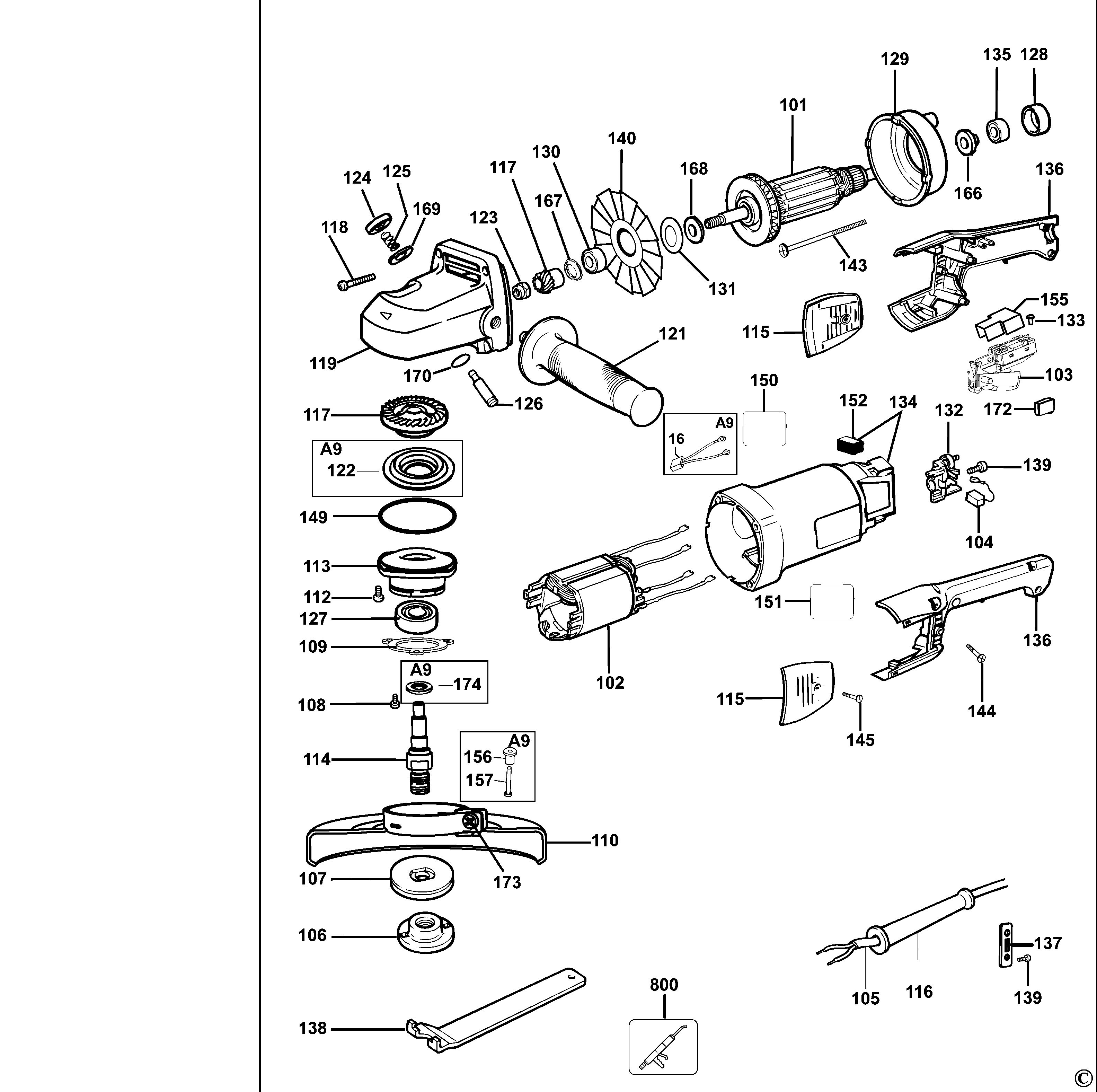

DEWALT ANGLE GRINDER (Type 4)
SKU Produs: DW830 /Type: 4
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | N865279 | 1 | ARMATURE | 196,2 Lei | |
| 107 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 112 | 330045-46 | 4 | SCREW | 4,57 Lei | |
| 118 | 562097-10 | 4 | SCREW | 4,57 Lei | |
| 119 | 569905-04 | 1 | SA Gear Case DW831 | 80,04 Lei | |
| 121 | 562211-00 | 1 | Handle Side(945597-00) DW803/801 | 17,02 Lei | |
| 123 | 393568-00 | 1 | Nut DW831 | 5,21 Lei | |
| 124 | 390705-00 | 1 | Lock Button DW831 | 4,57 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,57 Lei | |
| 126 | 390704-00 | 1 | Pin Lock DW831 | 6,23 Lei | |
| 128 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 130 | 605040-60 | 1 | Ball Bearing. CW DW831 | 19,95 Lei | |
| 131 | 930753-00 | 1 | Washer DW831 | 4,57 Lei | |
| 133 | 387746-00 | 4 | Switch Screw | 4,57 Lei | |
| 135 | 605040-03 | 1 | Ball Bearing. CW DW810 | 13,85 Lei | |
| 137 | 930103-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 139 | 562097-00 | 5 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 140 | 399032-01 | 1 | Flange Brg.DW831 | 13,85 Lei | |
| 143 | 562097-11 | 2 | Screw DW831 | 4,57 Lei | |
| 144 | 562097-03 | 4 | SCREW | 4,57 Lei | |
| 145 | 945280-00 | 2 | Screw Self Drive For Brush Cover ( | 4,57 Lei | |
| 149 | 403123-00 | 1 | Seal Ring DW831 | 4,57 Lei | |
| 151 | 398941-00 | 1 | IDENTITY LABEL | 4,57 Lei | |
| 152 | 402847-00 | 4 | Damper DW831 | 4,57 Lei | |
| 155 | 650937-00 | 1 | INSULATION,PAPER | 4,57 Lei | |
| 166 | 398985-00 | 1 | Slinger DW831 | 4,57 Lei | |
| 167 | 398909-00 | 1 | Retainer DW831 | 12,71 Lei | |
| 168 | 399052-00 | 1 | Washer (White) DW831 | 4,57 Lei | |
| 169 | 403148-00 | 1 | Washer DW831 | 4,57 Lei | |
| 170 | 050050-00 | 1 | O RING DW831 | 4,57 Lei | |
| 172 | 620051-00 | 2 | Pad DW831 | 4,57 Lei | |
| 173 | 631609-02 | 1 | SCREW | 4,57 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei |
