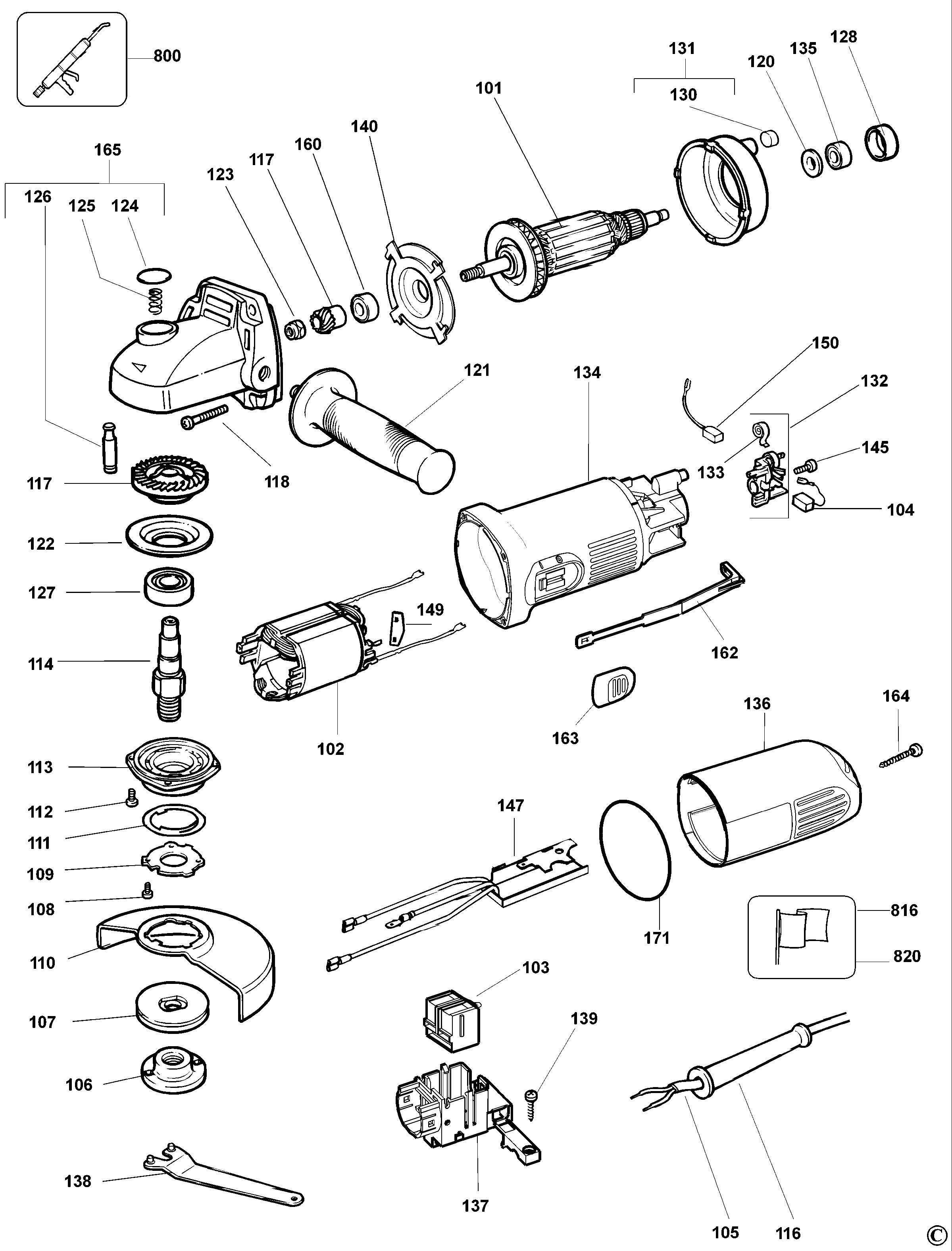

DEWALT SMALL ANGLE GRINDER (Type 4)
SKU Produs: DW822 /Type: 4
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 103 | 945614-00 | 1 | SWITCH | 38,6 Lei | |
| 104 | 939539-01 | 1 | BRUSH CUT OFF | 15,5 Lei | |
| 105 | 562226-08 | 1 | CABLE | 53,4 Lei | |
| 106 | 622613-02 | 1 | OUTER FLANGE | 22,4 Lei | |
| 107 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 14,2 Lei | |
| 108 | 562160-06 | 3 | SCREW | 4,7 Lei | |
| 110 | 944586-00 | 1 | GUARD | 20,4 Lei | |
| 111 | 393576-00 | 1 | Guard Spring | 5,3 Lei | |
| 113 | 945298-00 | 1 | GEARCASE COVER | 22,4 Lei | |
| 116 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 117 | 661243-00 | 1 | GEAR AND PINION | 56,4 Lei | |
| 117 | N490505 | 1 | GEAR AND PINION | 90,6 Lei | |
| 118 | 562097-01 | 4 | SCREW | 4,7 Lei | |
| 120 | 398906-00 | 1 | SPACER INSULATING | 4,7 Lei | |
| 121 | 573115-00 | 1 | SIDE HANDLE | 13 Lei | |
| 122 | 945299-00 | 1 | Gear Flange | 5,3 Lei | |
| 123 | 945292-00 | 1 | Nut (Pinion fixing) | 4,7 Lei | |
| 124 | 944574-00 | 1 | BUTTON | 4,7 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,7 Lei | |
| 126 | 944571-00 | 1 | LOCK PIN | 7,5 Lei | |
| 127 | 605040-22 | 1 | Bearing DW801 | 17,4 Lei | |
| 128 | 641823-00 | 1 | BOOT, RUBBER | 4,7 Lei | |
| 130 | 949638-01 | 1 | PLUG | 4,7 Lei | |
| 132 | 606574-01 | 2 | BRUSH HOLDER | 13 Lei | |
| 133 | 562204-00 | 2 | TORSION SPRING | 4,7 Lei | |
| 135 | 605040-02 | 1 | BEARING | 13 Lei | |
| 137 | 611540-00 | 1 | SUPPORT | 6,1 Lei | |
| 138 | 401680-00 | 1 | WRENCH DW831 | 17,4 Lei | |
| 139 | 562097-05 | 1 | Screw DW201,171 | 4,7 Lei | |
| 140 | 401622-01 | 1 | Fan Flange | 7,5 Lei | |
| 145 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
| 150 | 930151-00 | 1 | BRUSH 220V | 17,4 Lei | |
| 160 | N110359 | 1 | BALL BEARING | 8,8 Lei | |
| 162 | 611737-01 | 1 | LINK | 5,3 Lei | |
| 163 | 569624-01 | 1 | BUTTON | 5,3 Lei | |
| 164 | 562097-13 | 1 | SCREW | 4,7 Lei | |
| 171 | 393799-00 | 1 | O RING | 4,7 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 794,6 Lei | |
| 816 | 946194-00 | 1 | Logo Label DW801 | 4,7 Lei | |
| 820 | 569037-00 | 1 | RATING PLATE, DeWALT, BLANK | 17,4 Lei |
