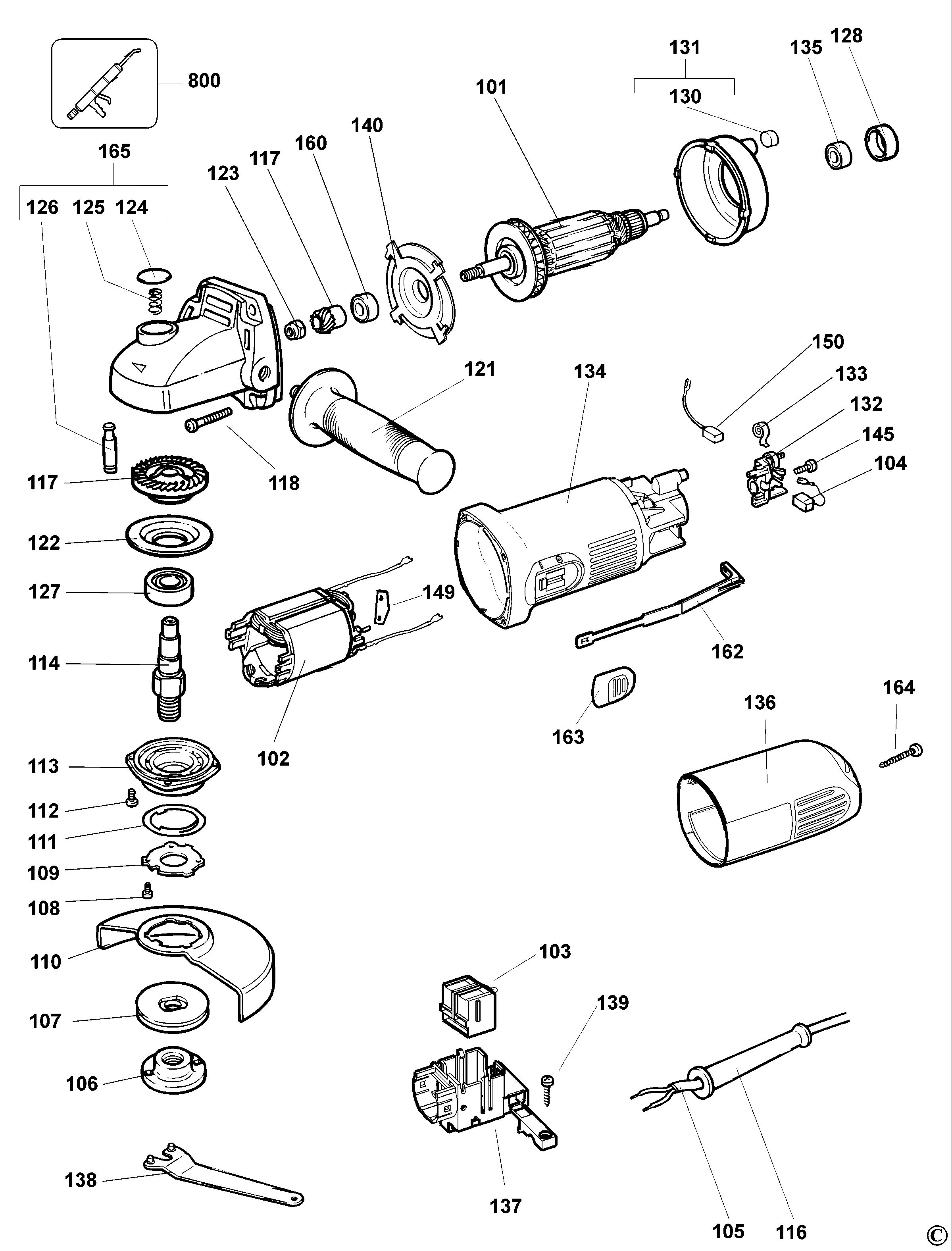

DEWALT SMALL ANGLE GRINDER (Type 3)
SKU Produs: DW818 /Type: 3
Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
---|---|---|---|---|---|
103 | 945614-00 | 1 | SWITCH | 38,6 Lei | |
104 | 939539-00 | 1 | BRUSH 115V | 20,4 Lei | |
106 | 622613-02 | 1 | OUTER FLANGE | 22,4 Lei | |
107 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 14,2 Lei | |
111 | 393576-00 | 1 | Guard Spring | 5,3 Lei | |
112 | 562160-01 | 4 | Screw For Gear Case Cover (M4 x 10) | 4,5 Lei | |
113 | 945298-00 | 1 | GEARCASE COVER | 22,4 Lei | |
116 | 401088-03 | 1 | CORD PROTECTOR | 6,4 Lei | |
117 | 661243-00 | 1 | GEAR AND PINION | 56,4 Lei | |
117 | N490505 | 1 | GEAR AND PINION | 90,6 Lei | |
118 | 562097-01 | 4 | SCREW | 4,7 Lei | |
121 | 573115-00 | 1 | SIDE HANDLE | 13 Lei | |
122 | 945299-00 | 1 | Gear Flange | 5,3 Lei | |
123 | 945292-00 | 1 | Nut (Pinion fixing) | 4,7 Lei | |
124 | 944574-00 | 1 | BUTTON | 4,7 Lei | |
125 | 562210-00 | 1 | SPRING | 4,7 Lei | |
126 | 944571-00 | 1 | LOCK PIN | 7,5 Lei | |
127 | 605040-22 | 1 | Bearing DW801 | 17,4 Lei | |
128 | 930275-00 | 1 | SLEEVE BEARING | 4,7 Lei | |
130 | 949638-01 | 2 | PLUG | 4,7 Lei | |
133 | 562204-00 | 2 | TORSION SPRING | 4,7 Lei | |
135 | 605040-02 | 1 | BEARING | 13 Lei | |
137 | 5140000-13 | 1 | SWITCH SUPPORT | 13,5 Lei | |
138 | 401680-00 | 1 | WRENCH DW831 | 17,4 Lei | |
139 | 562097-05 | 1 | Screw DW201,171 | 4,7 Lei | |
140 | 401622-01 | 1 | Fan Flange | 7,5 Lei | |
145 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
160 | N110359 | 1 | BALL BEARING | 8,8 Lei | |
162 | 611737-01 | 1 | LINK | 5,3 Lei | |
163 | 569624-01 | 1 | BUTTON | 5,3 Lei | |
164 | 562097-13 | 1 | SCREW | 4,7 Lei | |
800 | 286436-00 | 1 | RHEOLUBE 380 | 794,6 Lei |
