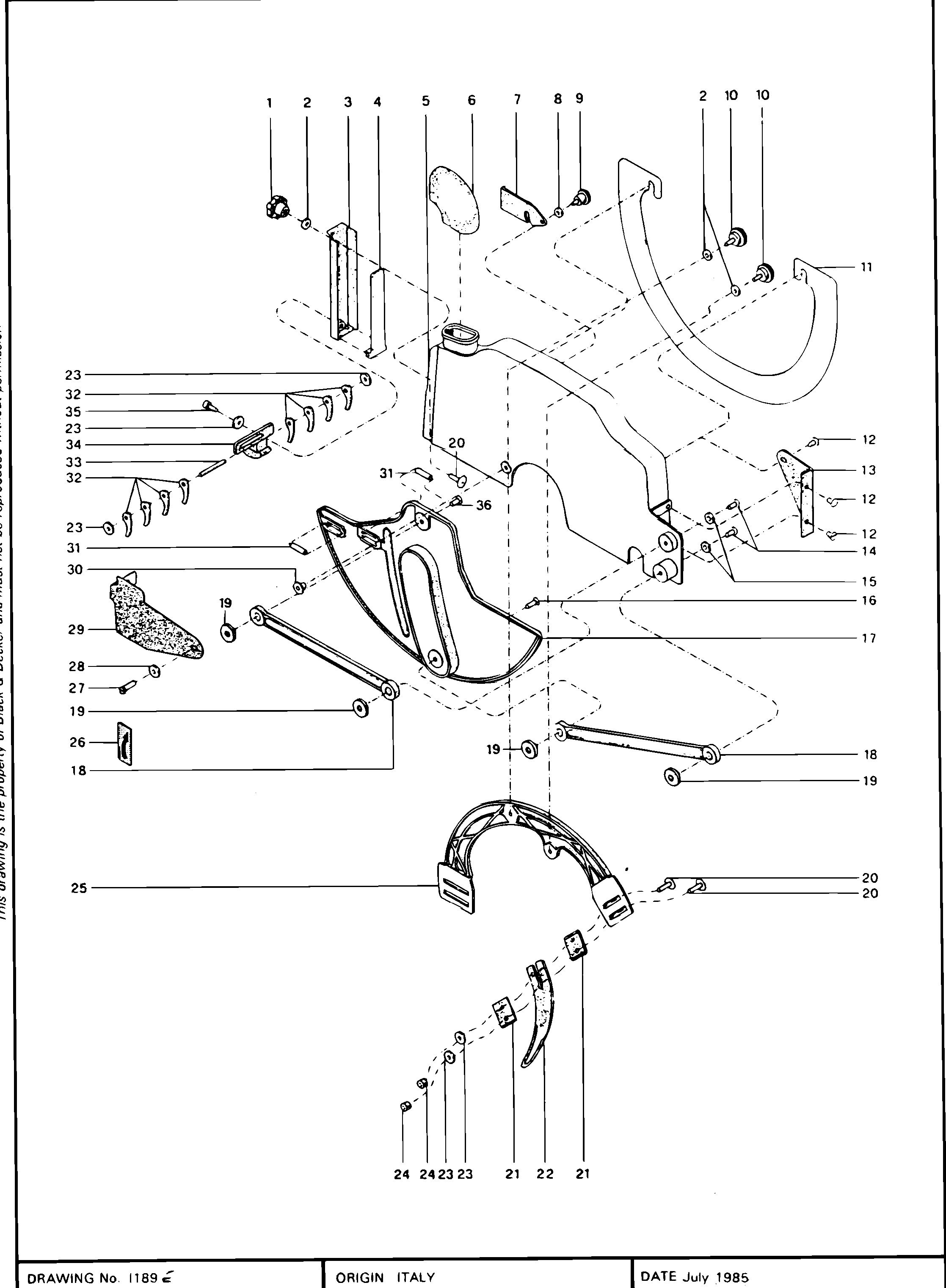

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW8103----F /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 946469-00 | 99 | KNOB | 5,3 Lei | |
| 2 | 720959-00 | 3 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 6 | 864095-00 | 1 | DUST SPOUT EUROG.D.250-300-350 | 31,6 Lei | |
| 7 | 863708-00 | 1 | ROTATING SQUARE | 72 Lei | |
| 8 | 860074-01 | 1 | WASHER,SPRING CON.D5.2X12X0.8 | 4,7 Lei | |
| 9 | 861842-01 | 1 | KNOB | 8,8 Lei | |
| 12 | 760273-00 | 3 | SCREW,FILL.HD M.5X8 UNI6107 | 4,7 Lei | |
| 13 | 863707-01 | 1 | GUIDE SQUARE | 31,6 Lei | |
| 14 | 760998-00 | 2 | SCREW M5X10 | 4,7 Lei | |
| 15 | 860073-01 | 2 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 16 | 949888-06 | 1 | FLAT COUNTERSUNK HD.SCREW | 4,7 Lei | |
| 17 | 862426-00 | 1 | PROTECTION | 59,2 Lei | |
| 19 | 864053-00 | 4 | WASHER FOR LEVER EUROG.250-300 | 17,4 Lei | |
| 20 | 860301-00 | 2 | SCREW,CUP SQUARE M6X20UNI5732 | 4,7 Lei | |
| 23 | 860074-02 | 2 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 24 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 27 | 941518-00 | 1 | SCREW,FLAT FILL.HD.M6X20 UNI61 | 4,7 Lei | |
| 28 | 860075-00 | 1 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 30 | 863705-00 | 1 | FRONT PROTECT.GUIDE BUSHING | 7,5 Lei | |
| 31 | 864054-00 | 2 | SLIDING ROLLER EUROG.D.250-300 | 8,8 Lei | |
| 35 | 760219-00 | 1 | SOCKET HEAD SCREW | 4,7 Lei | |
| 36 | 249412-20 | 1 | SCREW M5X10 | 4,7 Lei | |
| 39 | 863320-00 | 1 | LEVER | 17,4 Lei | |
| 40 | 863073-00 | 1 | CAP FOR LOCKING LEVER | 13 Lei | |
| 41 | 760483-00 | 1 | SPRING | 4,7 Lei | |
| 42 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 43 | 949891-03 | 1 | SQUARE HEAD BUTTON SCREW M8X50 | 4,7 Lei | |
| 44 | 860073-03 | 2 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 45 | 860085-03 | 1 | SCREW,HEX M.8X20 UNI 5739 | 4,7 Lei | |
| 46 | 860092-01 | 1 | NUT,ELAST.STOP M.8 UNI 7473 | 4,7 Lei |
