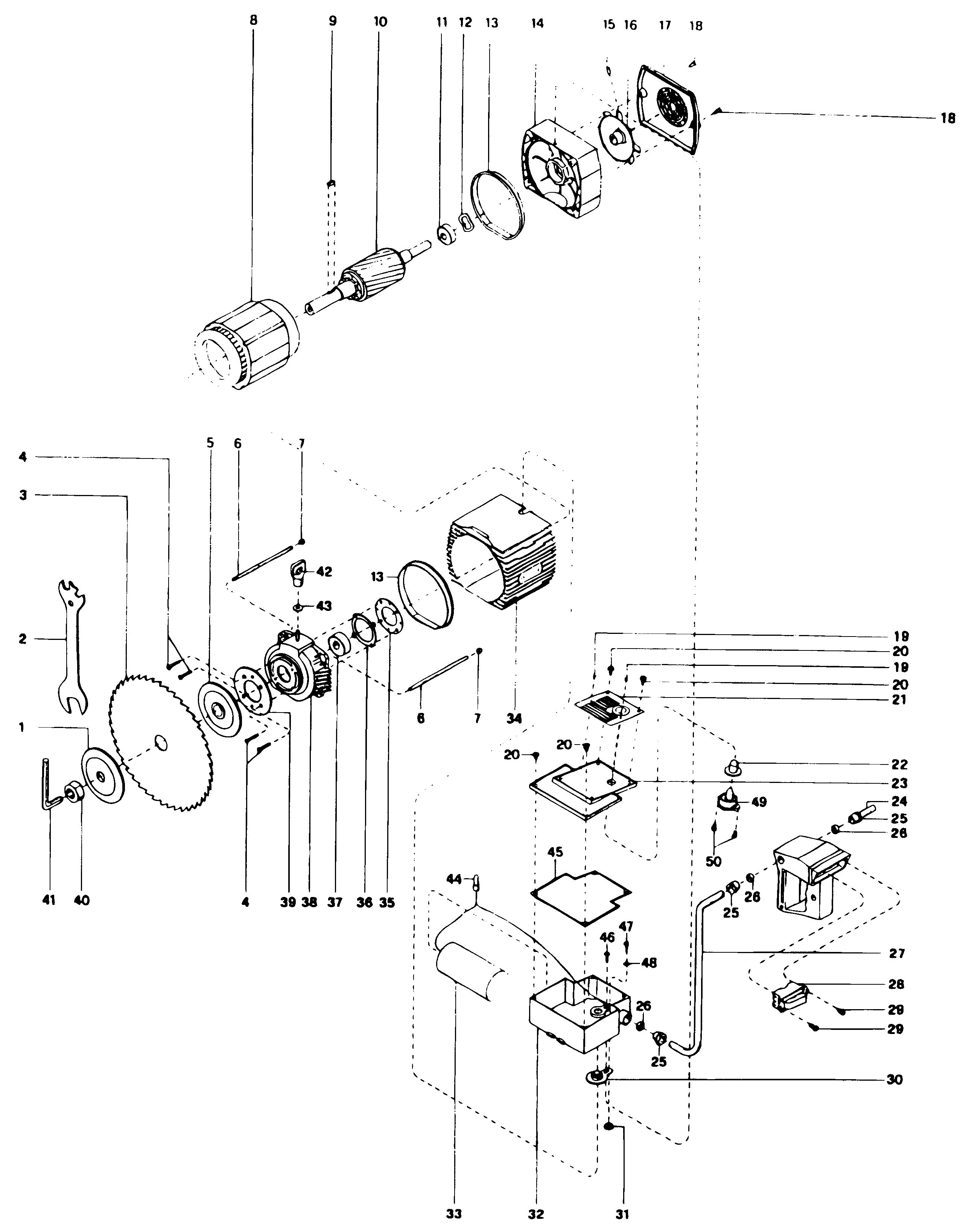

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW8003----D /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 944463-00 | 1 | SPANNER | 90,6 Lei | |
| 4 | 860538-00 | 4 | SCREW,FLAT HD M.4X25 UNI 6109 | 4,7 Lei | |
| 7 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 11 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
| 12 | 860080-02 | 1 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
| 13 | 860718-00 | 1 | GASKET FOR MOTOR BELL DW1150 | 22,4 Lei | |
| 15 | 860088-25 | 1 | SCREW,SET M.5X10 UNI 5929 | 4,7 Lei | |
| 18 | 860089-25 | 2 | SCREW,FIL.HD M.4X10 UNI6107 Z | 4,5 Lei | |
| 20 | 860094-03 | 2 | SCREW,PAN PH/TT M.4X10UNI8112 | 4,7 Lei | |
| 25 | 944654-00 | 3 | CLAMP,CABLE(NUT)G.3/8 HOLE 12 | 8,8 Lei | |
| 26 | 944590-00 | 3 | BUSHING,CABLE D.10XD.14X5 | 5,3 Lei | |
| 30 | 944652-00 | 1 | GASKET FOR CABLE DW 1150 | 123,6 Lei | |
| 31 | 944653-00 | 1 | GASKET,EARTH SCREW | 90,6 Lei | |
| 35 | 123302-01 | 1 | INNER MOTOR FLANGE | 42,9 Lei | |
| 36 | 863878-00 | 1 | GASKET FOR INTERNAL MOTOR FLAN | 81,9 Lei | |
| 37 | 868768-10 | 1 | BEARING,BALL ISO 6204-2RSL | 59,2 Lei | |
| 38 | 862162-00 | 1 | ARBOR END BELL DW1251-3 | 148,5 Lei | |
| 40 | 944460-00 | 1 | ARBOR NUT 1370-DW12-MC20 | 98,8 Lei | |
| 41 | 860098-05 | 1 | WRENCH,HEX 8 UNI 6753 | 14,2 Lei | |
| 43 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 46 | 860094-00 | 1 | SCREW,PAN PH/TT M.5X16UNI8112 | 4,7 Lei | |
| 47 | 860094-01 | 1 | SCREW,PAN PH/TT M.4X16UNI8112 | 4,7 Lei | |
| 48 | 944650-00 | 1 | CLAMP,WIRE ZINC PLATED | 4,7 Lei | |
| 50 | 860094-03 | 2 | SCREW,PAN PH/TT M.4X10UNI8112 | 4,7 Lei |
