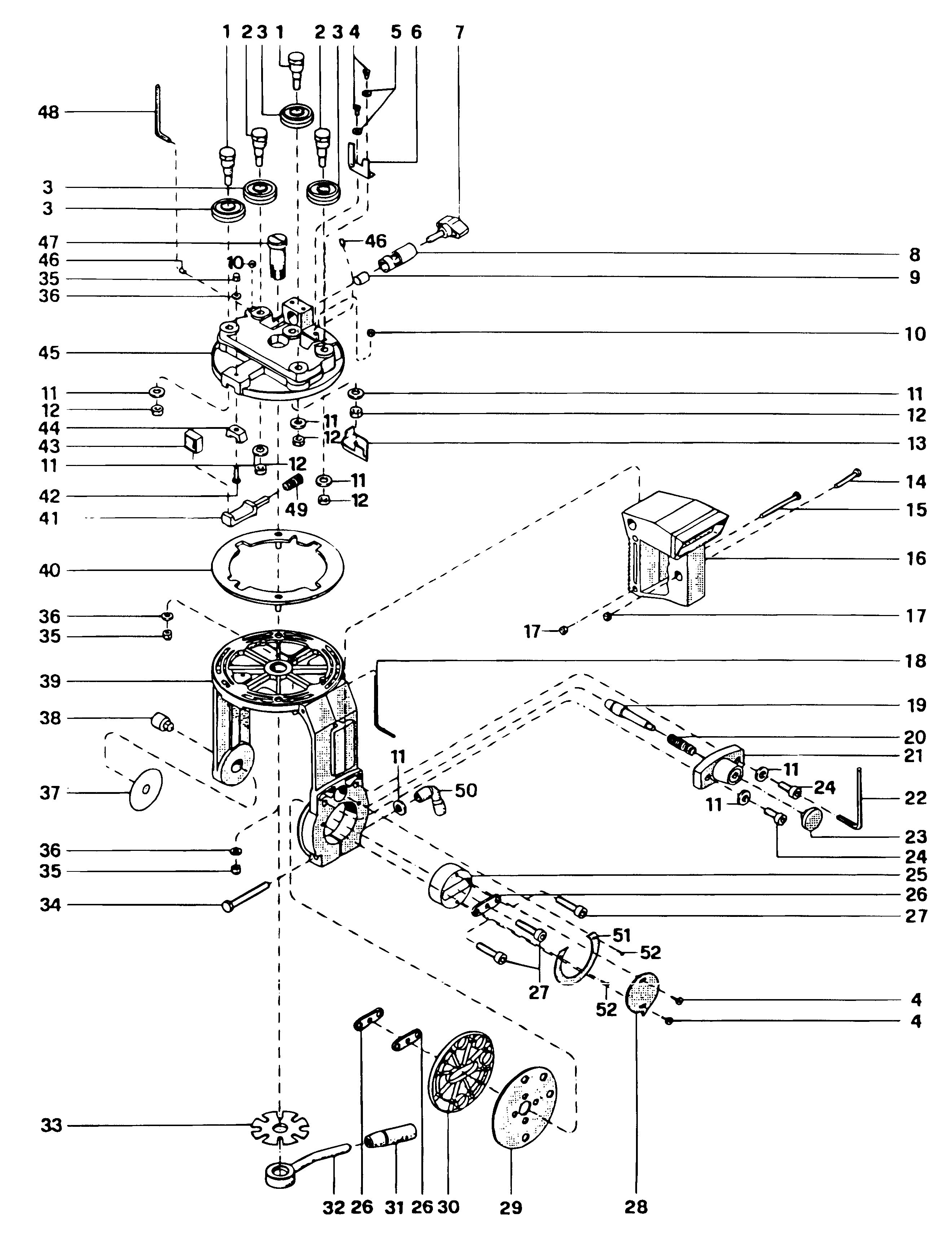

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW8003----C /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 760421-00 | 2 | SCREW,CONCENTRIC BEARING 1712 | 26,1 Lei | |
| 2 | 760417-00 | 1 | BEARING SHAFT-ECCENTRIC DW125- | 38,6 Lei | |
| 3 | 860154-00 | 4 | BEARING,SPECIAL SKF 614432-B | 199,6 Lei | |
| 4 | 860094-02 | 2 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,7 Lei | |
| 5 | 860094-02 | 4 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,7 Lei | |
| 7 | 862427-00 | 1 | KNOB D.40X16-M8X23-BLACK | 4,7 Lei | |
| 10 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 11 | 860074-03 | 5 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 12 | 860083-08 | 4 | NUT,HEX THICK M.8X1 UNI 5587 | 4,7 Lei | |
| 14 | 949701-12 | 1 | RD.HD.SCREW M.5X25 | 4,7 Lei | |
| 15 | 860089-39 | 1 | SCREW,FIL.HD M5X60 UNI 6107 | 4,7 Lei | |
| 17 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 18 | 949882-01 | 1 | WRENCH | 4,7 Lei | |
| 19 | 863977-00 | 1 | LOCATING PLUG | 109,5 Lei | |
| 20 | 860112-11 | 1 | SPRING,PUSHER D13XD1,2X39 | 13 Lei | |
| 22 | 860098-04 | 1 | WRENCH,HEX 6 UNI 6753 | 5,3 Lei | |
| 23 | 946469-00 | 1 | KNOB | 5,3 Lei | |
| 24 | 860093-07 | 2 | SCREW,SOCKET M.8X20 UNI 5931 | 4,7 Lei | |
| 25 | 860119-01 | 1 | HUB,FRONT YOKE D.54 BLANK | 325,7 Lei | |
| 26 | 860120-00 | 1 | PLATE FOR HUBE | 8,8 Lei | |
| 27 | 860093-02 | 3 | SCREW,SOCKET M.8X25 UNI 5931 | 4,7 Lei | |
| 30 | 860827-00 | 1 | GASKET FOR YOKE HUBE DW1251 | 123,6 Lei | |
| 34 | 860086-11 | 1 | SCREW,HEX M.8X75 UNI 5737 | 6,4 Lei | |
| 35 | 860092-03 | 2 | NUT M5 | 4,7 Lei | |
| 36 | 860073-01 | 2 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 37 | 864160-00 | 1 | DISC | 34,8 Lei | |
| 38 | 864058-00 | 1 | SUPPORT SCREW DW125-111-1370 | 34,8 Lei | |
| 40 | 860824-00 | 1 | THRUST RING + SCREWS | 230,5 Lei | |
| 46 | 941880-00 | 2 | SOCKET SCREW TYPE-E | 4,7 Lei | |
| 48 | 938539-00 | 1 | WRENCH,HEX 3 UNI 6753 | 4,7 Lei | |
| 51 | 860829-00 | 1 | SCALE,BEVEL DW1251 | 22,4 Lei | |
| 52 | 860205-06 | 2 | SCREW TSPPH | 4,7 Lei |
