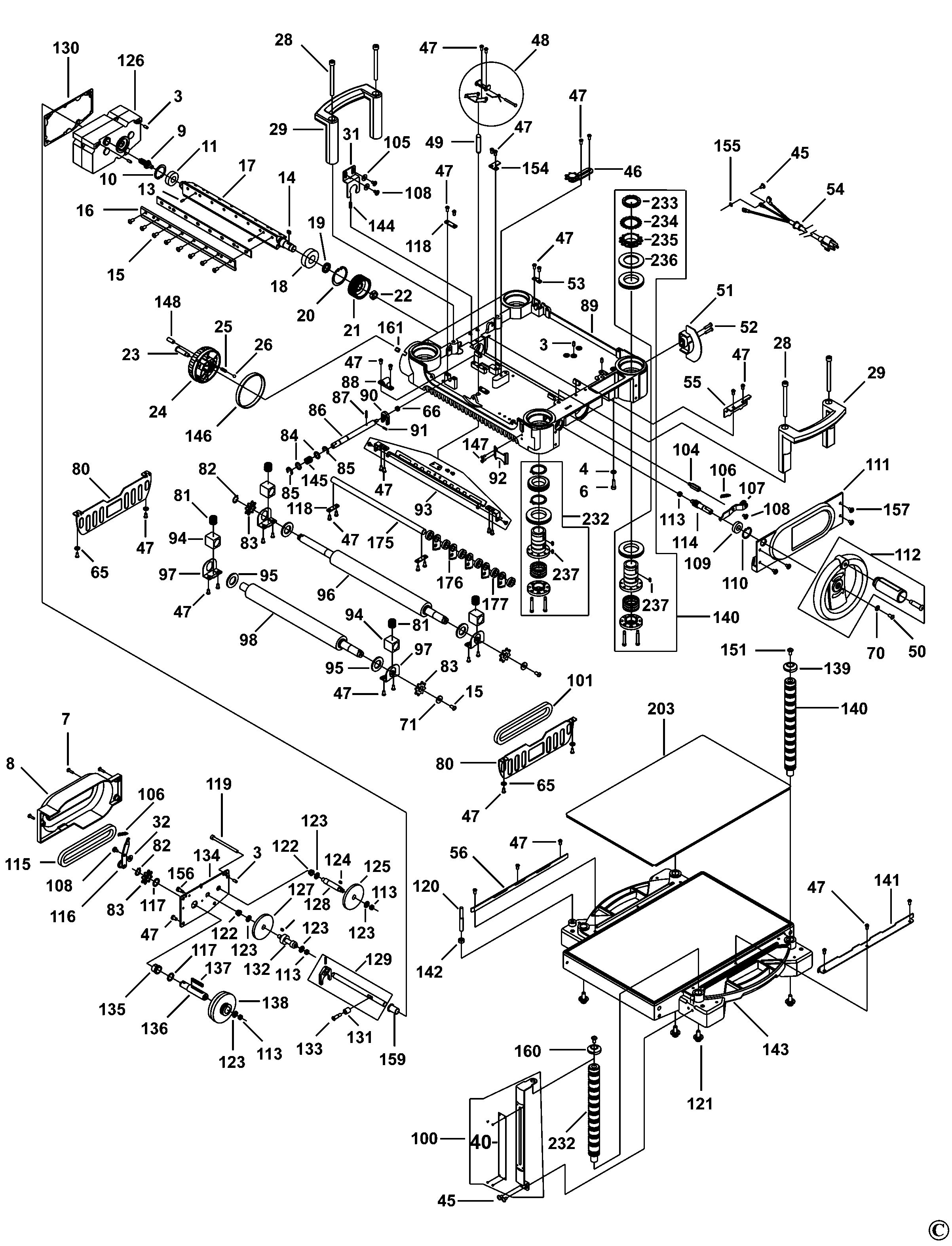

DEWALT PLANER THICKNESSER (Type 1)
SKU Produs: DW735 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 5140010-00 | 1 | DUST SHROUD includes pads 200 201 202 | 99,86 Lei | |
| 3 | 5140010-04 | 6 | PIN | 10,5 Lei | |
| 4 | 5140010-05 | 4 | LOCK WASHER 6.1X12.3 | 3,78 Lei | |
| 5 | 5140010-06 | 1 | LEAD | 14,07 Lei | |
| 6 | 5140010-07 | 4 | SCREW SELF TAPPING | 6,09 Lei | |
| 7 | 5140071-78 | 3 | SCREW | 3,78 Lei | |
| 8 | 5140010-09 | 1 | COVER LEFT SIDE | 34,65 Lei | |
| 9 | 5140010-10 | 1 | SHAFT AND GEAR | 119,91 Lei | |
| 10 | 5140010-11 | 1 | RETAINER | 5,21 Lei | |
| 11 | 285934-00 | 1 | BEARING | 52,22 Lei | |
| 13 | 5140010-14 | 6 | PIN | 6,09 Lei | |
| 14 | 5140010-15 | 1 | KEY | 7,37 Lei | |
| 15 | 5140067-11 | 1 | PARTS PACK(KIT) | 99,86 Lei | |
| 16 | 5140010-17 | 3 | BLADE HOLDER | 73,19 Lei | |
| 17 | 5140010-18 | 1 | CUTTER HEAD | 734,9 Lei | |
| 18 | 5140010-19 | 1 | BALL BEARING | 79,8 Lei | |
| 19 | 5140010-20 | 1 | BUSHING | 6,09 Lei | |
| 20 | 5140010-21 | 1 | RETAINING RING | 11,45 Lei | |
| 21 | 5140010-22 | 1 | PULLEY | 52,22 Lei | |
| 22 | 5140010-23 | 1 | NUT | 12,5 Lei | |
| 23 | 5140010-24 | 1 | SHAFT | 12,5 Lei | |
| 24 | 5140010-25 | 1 | TURRET | 107,73 Lei | |
| 25 | 5140011-69 | 1 | SPRING | 5,15 Lei | |
| 26 | 5140010-27 | 1 | BALL | 3,78 Lei | |
| 27 | 5140010-28 | 1 | V Belt | 252,58 Lei | |
| 28 | 5140010-29 | 4 | SCREW CAP, M8X1.25X80 | 14,07 Lei | |
| 29 | 5140010-30 | 2 | HANDLE | 79,8 Lei | |
| 30 | 5140010-31 | 1 | CHAIN | 99,86 Lei | |
| 31 | 5140010-32 | 1 | BRACKET | 16,49 Lei | |
| 32 | 5140007-75 | 1 | WASHER | 34,65 Lei | |
| 37 | 5140010-38 | 3 | BOLT | 28,14 Lei | |
| 45 | 5140010-46 | 8 | SCREW | 3,78 Lei | |
| 46 | 5140010-47 | 1 | WHEEL ASSEMBLY TENSION | 28,14 Lei | |
| 47 | 5140010-48 | 38 | SCREW M5X0.8X10 | 3,78 Lei | |
| 48 | 5140010-49 | 1 | INDICATOR ASSY | 21,11 Lei | |
| 49 | 5140010-50 | 1 | PIN | 14,07 Lei | |
| 50 | 5140010-51 | 1 | SCREW M6X1 | 4,31 Lei | |
| 52 | 5140010-53 | 4 | SCREW M5X0.8X20 | 34,65 Lei | |
| 53 | 5140010-54 | 1 | CORD CLAMP | 5,15 Lei | |
| 55 | 5140010-55 | 1 | BRACKET | 14,07 Lei | |
| 56 | 5140010-56 | 1 | PLATE GUIDE , LEFT | 18,06 Lei | |
| 57 | 5140010-57 | 1 | LEVER SPEED SHIFT | 10,5 Lei | |
| 58 | 5140010-58 | 2 | SCREW M5X0.8X10 | 3,78 Lei | |
| 59 | 5140010-59 | 4 | SCREW M4X1.59X10 | 3,78 Lei | |
| 61 | 5140010-61 | 1 | FRONT COVER | 66,15 Lei | |
| 64 | 5140007-78 | 1 | CIRCUIT BREAKER | 47,78 Lei | |
| 65 | 5140007-79 | 4 | SCREW&LOCKWASH | 34,65 Lei | |
| 66 | 429989-07 | 1 | NUT M6 | 3,78 Lei | |
| 67 | 5140007-80 | 1 | SCREW | 34,65 Lei | |
| 68 | 5140010-67 | 1 | MICRO SWITCH | 31,19 Lei | |
| 69 | 5140010-68 | 2 | CAP SCREW | 10,5 Lei | |
| 70 | 5140010-69 | 1 | WASHER 6.3X13X1.0 | 3,78 Lei | |
| 71 | 5140010-70 | 2 | WASHER 6.7X19X2.0 | 3,78 Lei | |
| 72 | 5140078-32 | 4 | SCREW | 4,31 Lei | |
| 73 | 5140010-72 | 2 | PLATE SKID | 73,19 Lei | |
| 75 | 5140010-74 | 1 | TOP COVER | 186,17 Lei | |
| 76 | 5140010-75 | 1 | COVER ASSY | 119,91 Lei | |
| 78 | 5140010-76 | 2 | COVER PLATE ASSY | 21,11 Lei | |
| 80 | 5140010-78 | 2 | COVER SIDE | 31,19 Lei | |
| 81 | 5140010-79 | 4 | SPRING | 11,45 Lei | |
| 82 | 5140010-80 | 2 | RETAINING RING | 3,78 Lei | |
| 83 | 5140010-81 | 4 | SPROCKET | 18,06 Lei | |
| 84 | 5140010-82 | 2 | WASHER | 3,78 Lei | |
| 85 | 5140010-83 | 2 | RETAINING RING | 3,78 Lei | |
| 86 | 5140010-84 | 1 | ROD SPEED SHIFT | 58,17 Lei | |
| 87 | 5140010-85 | 1 | PIN 3X20 | 34,65 Lei | |
| 88 | 5140010-86 | 1 | HOLDER | 16,49 Lei | |
| 89 | 5140010-87 | 1 | CARRIAGE | 1,7 Lei | |
| 90 | 5140010-88 | 1 | PAWL SPEED SHIFT | 11,45 Lei | |
| 91 | 5140010-89 | 1 | PIN 3X12 | 3,78 Lei | |
| 92 | 5140010-90 | 1 | INDICATOR | 16,49 Lei | |
| 93 | 5140010-91 | 1 | PLATE CONTACT | 43,16 Lei | |
| 94 | 5140010-92 | 4 | BUSHING | 28,14 Lei | |
| 95 | 5140010-93 | 4 | FELT | 16,49 Lei | |
| 96 | 5140010-94 | 1 | REAR ROLLER | 330,12 Lei | |
| 97 | 5140019-90 | 4 | BRACKET | 11,45 Lei | |
| 98 | 5140010-96 | 1 | ROLLER FRONT | 273,95 Lei | |
| 99 | 5140010-97 | 1 | LEAD | 14,07 Lei | |
| 101 | 5140010-99 | 1 | CHAIN | 25,52 Lei | |
| 102 | 5140011-00 | 1 | SWITCH COVER | 18,06 Lei | |
| 103 | 5140011-01 | 1 | SWITCH PLATE | 14,07 Lei | |
| 104 | 5140011-02 | 1 | SHAFT | 18,06 Lei | |
| 105 | 5140011-03 | 2 | WASHER 6.5X16X0.8 | 3,78 Lei | |
| 106 | 5140011-04 | 2 | SPRING | 5,15 Lei | |
| 107 | 5140011-05 | 1 | IDLER SHAFT RIGHT | 21,11 Lei | |
| 108 | 5140011-06 | 4 | SCREW SHOULDER | 4,31 Lei | |
| 109 | 5140011-07 | 1 | BALL BEARING | 34,65 Lei | |
| 110 | 5140011-08 | 1 | RETAINING RING | 4,31 Lei | |
| 111 | 5140011-09 | 1 | COVER RIGHT SIDE | 34,65 Lei | |
| 112 | 5140011-10 | 1 | CRANK HANDLE | 130,52 Lei | |
| 113 | 5140011-11 | 4 | BUSHING | 6,09 Lei | |
| 114 | 5140011-12 | 1 | Gear | 99,86 Lei | |
| 115 | 5140011-13 | 1 | CHAIN | 21,11 Lei | |
| 116 | 5140011-14 | 1 | IDLER SHAFT LEFT | 18,06 Lei | |
| 117 | 5140011-15 | 2 | WASHER | 4,31 Lei | |
| 118 | 5140011-16 | 3 | PLATE | 6,09 Lei | |
| 119 | 5140011-17 | 3 | CAP SCREW M6X1.0X85 | 6,09 Lei | |
| 120 | 5140011-18 | 1 | SHAFT | 12,5 Lei | |
| 121 | 5140011-19 | 4 | CAP SCREW | 11,45 Lei | |
| 122 | 5140011-20 | 2 | BUSHING | 5,15 Lei | |
| 123 | 5140007-82 | 1 | WASHER | 3,78 Lei | |
| 124 | 5140011-22 | 2 | KEY 4X4X7 | 6,09 Lei | |
| 125 | 5140011-23 | 1 | Gear | 119,91 Lei | |
| 126 | 5140011-24 | 1 | GEAR CASE | 263,03 Lei | |
| 127 | 5140011-25 | 1 | Gear | 150,05 Lei | |
| 128 | 5140011-26 | 1 | Gear | 88,41 Lei | |
| 129 | 5140011-27 | 1 | PAWL ASSY, SPEED SHIFT | 79,8 Lei | |
| 130 | 5140011-28 | 1 | SHIM | 25,52 Lei | |
| 131 | 5140011-29 | 1 | SPACER | 5,15 Lei | |
| 132 | 5140011-30 | 1 | Gear | 130,52 Lei | |
| 133 | 5140011-31 | 1 | SCREW SHOULDER | 5,15 Lei | |
| 134 | 5140011-32 | 1 | GEAR CASE COVER | 31,19 Lei | |
| 135 | 5140011-33 | 1 | BUSHING | 12,5 Lei | |
| 136 | 5140011-34 | 1 | ROD | 99,86 Lei | |
| 137 | 5140011-35 | 1 | KEY 5X5X40 | 8,51 Lei | |
| 138 | 5140011-36 | 1 | Gear | 263,03 Lei | |
| 139 | 5140011-37 | 3 | CAP POST | 7,37 Lei | |
| 140 | 5140011-93 | 3 | POST AASY, DRIVEN SCREW | 677,67 Lei | |
| 141 | 5140011-39 | 1 | PLATE GUIDE LEFT | 16,49 Lei | |
| 142 | 429989-57 | 1 | NUT | 4,57 Lei | |
| 143 | 5140014-58 | 1 | BASE | 1786,07 Lei | |
| 144 | 5140011-43 | 1 | SPRING | 5,15 Lei | |
| 145 | 5140011-44 | 1 | SPRING | 6,09 Lei | |
| 146 | 5140007-83 | 1 | SCALE | 18,06 Lei | |
| 147 | 5140011-46 | 2 | SCREW M4X0.7X6 | 3,78 Lei | |
| 148 | 5140011-47 | 1 | SET SCREW M8X1.25X25 | 6,09 Lei | |
| 149 | 5140011-48 | 1 | ADAPTER | 34,65 Lei | |
| 150 | 5140011-49 | 1 | DUST CHUTE | 73,19 Lei | |
| 151 | 5140007-84 | 4 | SCREW & WASHER | 6,09 Lei | |
| 154 | 5140011-51 | 1 | PLATE | 6,09 Lei | |
| 155 | 5140011-52 | 2 | LOCK WASHER EXTERNAL TOO TH | 3,78 Lei | |
| 156 | 5140011-53 | 1 | SCREW SHOULDER | 4,31 Lei | |
| 157 | 5140011-54 | 4 | SCREW | 6,09 Lei | |
| 159 | 5140011-55 | 1 | BUSHING | 34,65 Lei | |
| 160 | 5140011-56 | 1 | CAP POST | 6,09 Lei | |
| 161 | 5140011-57 | 1 | INDICATOR | 6,09 Lei | |
| 163 | 5140007-85 | 1 | SCALE PLATE | 34,65 Lei | |
| 164 | 5140011-60 | 4 | SCREW M3X0.5X10 | 3,78 Lei | |
| 165 | 5140011-61 | 1 | PLATE | 11,45 Lei | |
| 166 | 5140011-62 | 2 | RETAINING RING | 3,78 Lei | |
| 175 | 5140007-86 | 1 | SHAFT | 99,86 Lei | |
| 176 | 5140007-87 | 33 | ANTI-KICKBACK | 28,14 Lei | |
| 177 | 5140007-88 | 34 | COLLAR | 4,31 Lei | |
| 178 | 5140006-47 | 1 | CAPACITOR | 139,97 Lei | |
| 200 | 5140010-01 | 1 | PAD | 3,78 Lei | |
| 201 | 5140010-02 | 1 | PAD | 3,78 Lei | |
| 202 | 5140010-03 | 1 | PAD | 3,78 Lei | |
| 203 | 5140014-58 | 1 | BASE | 1786,07 Lei | |
| 204 | 5140011-64 | 1 | PIN | 6,09 Lei | |
| 205 | 5140011-65 | 4 | WASHER LOCK | 4,57 Lei | |
| 206 | 5140011-66 | 4 | WASHER | 3,78 Lei | |
| 207 | 5140011-67 | 1 | FAN HOUSING LEFT | 34,65 Lei | |
| 208 | 5140011-68 | 1 | RETAINING RING | 3,78 Lei | |
| 209 | 5140011-69 | 1 | SPRING | 5,15 Lei | |
| 210 | 5140011-70 | 3 | SPRING CLIP | 6,09 Lei | |
| 211 | 5140010-48 | 4 | SCREW M5X0.8X10 | 3,78 Lei | |
| 212 | 5140103-77 | 1 | HOUSING | 99,86 Lei | |
| 213 | 5140011-72 | 1 | NUT NYLON | 3,78 Lei | |
| 214 | 5140007-89 | 1 | WASHER | 3,78 Lei | |
| 215 | 5140011-74 | 1 | FAN ASSEMBLY | 47,78 Lei | |
| 216 | 5140011-75 | 1 | CAP MOTOR | 119,91 Lei | |
| 217 | 5140011-76 | 2 | BALL BEARING | 43,16 Lei | |
| 218 | 5140011-77 | 2 | SCREW | 3,78 Lei | |
| 219 | 1004481-01 | 1 | FIELD | 186,17 Lei | |
| 221 | 5140007-99 | 1 | ARMATURE | 471,87 Lei | |
| 222 | 5140011-81 | 1 | MOTOR HOUSING | 139,97 Lei | |
| 223 | 5140011-52 | 3 | LOCK WASHER EXTERNAL TOO TH | 3,78 Lei | |
| 224 | 5140011-83 | 4 | SCREW M5X0.8X20 | 3,78 Lei | |
| 225 | 5140011-84 | 2 | BRUSH CAP | 6,09 Lei | |
| 227 | 5140011-86 | 2 | BRUSH HOLDER | 28,14 Lei | |
| 228 | 5140011-87 | 2 | SCREW | 4,57 Lei | |
| 229 | 5140011-88 | 1 | PULLEY | 66,15 Lei | |
| 230 | 5140011-89 | 1 | STRAIN RELIEF | 6,09 Lei | |
| 231 | 5140071-78 | 1 | SCREW | 3,78 Lei | |
| 232 | 5140011-92 | 1 | POST | 734,9 Lei | |
| 233 | 5140010-34 | 4 | NUT | 25,52 Lei | |
| 234 | 5140010-35 | 4 | WASHER LOCK | 6,09 Lei | |
| 235 | 5140010-36 | 4 | SPROCKET | 28,14 Lei | |
| 236 | 5140011-58 | 4 | PLATE | 6,09 Lei | |
| 237 | 5140010-39 | 3 | KEY | 6,09 Lei |
