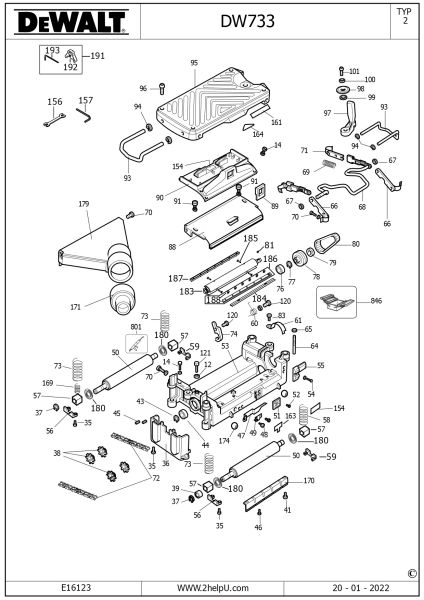

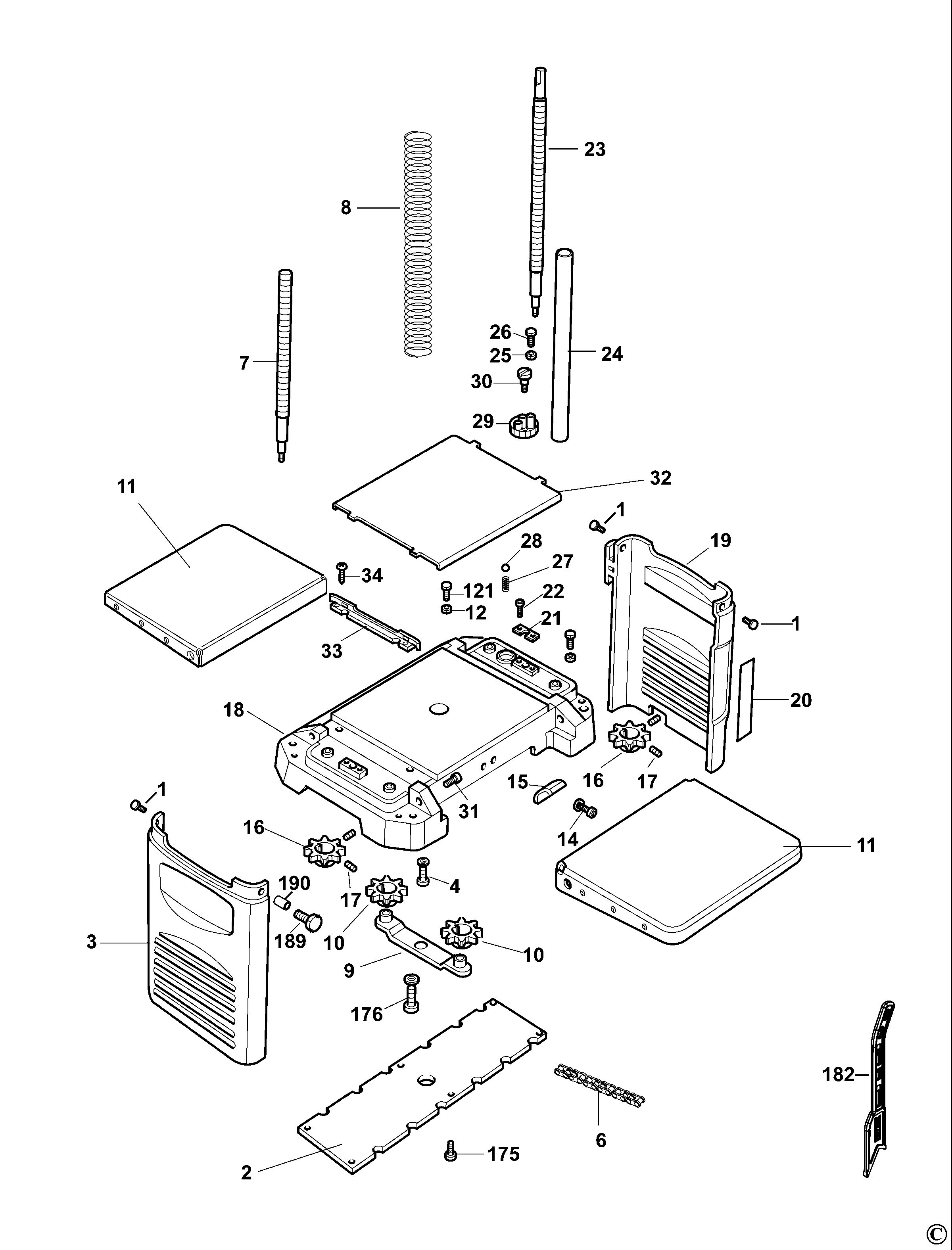

DEWALT PLANER THICKNESSER (Type 2)
SKU Produs: DW733 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004514-00 | 3 | SCREW | 4,57 Lei | |
| 2 | 285895-00 | 1 | PLATE | 37,73 Lei | |
| 3 | 285896-00 | 1 | SIDE LH | 57,81 Lei | |
| 4 | 429699-00 | 4 | SCREW SPECIAL dw733 | 4,57 Lei | |
| 6 | 285898-00 | 1 | CHAIN | 57,81 Lei | |
| 7 | 285899-00 | 1 | SCREW | 41,93 Lei | |
| 8 | 285900-00 | 2 | SPRING | 15,12 Lei | |
| 9 | 285901-00 | 1 | PLATE | 57,81 Lei | |
| 10 | 285902-00 | 2 | SPROCKET | 17,02 Lei | |
| 11 | 285903-00 | 2 | TABLE | 264,01 Lei | |
| 12 | 286256-00 | 6 | NUT M6 | 4,57 Lei | |
| 14 | 429669-00 | 15 | SCREW | 4,57 Lei | |
| 15 | 285907-00 | 2 | PLATE | 10,29 Lei | |
| 16 | 285908-00 | 2 | SPROCKET | 21,85 Lei | |
| 17 | 285909-00 | 4 | SCREW | 4,57 Lei | |
| 18 | 285910-00 | 1 | BASE | 776,53 Lei | |
| 19 | 285911-00 | 1 | SIDE RH | 52,22 Lei | |
| 20 | 285912-00 | 1 | SCALE | 17,02 Lei | |
| 21 | 285913-00 | 2 | PLATE | 8,64 Lei | |
| 22 | 285914-00 | 4 | SCREW | 4,57 Lei | |
| 23 | 285915-00 | 1 | SCREW | 41,93 Lei | |
| 24 | 285916-00 | 4 | STRUT | 70,39 Lei | |
| 25 | 285917-00 | 1 | NUT M5 | 4,57 Lei | |
| 26 | 098022-25 | 1 | SCREW | 4,57 Lei | |
| 27 | 285918-00 | 1 | SPRING | 4,57 Lei | |
| 28 | 285919-00 | 1 | BALL STEEL | 4,57 Lei | |
| 29 | 429613-00 | 1 | TURRET | 41,93 Lei | |
| 30 | 285921-00 | 1 | SCREW | 7,37 Lei | |
| 31 | 285922-00 | 4 | SCREW | 6,23 Lei | |
| 32 | 285923-00 | 1 | COVERPLATE | 130,35 Lei | |
| 33 | 285924-00 | 2 | GUIDE | 15,12 Lei | |
| 34 | 285925-00 | 4 | SCREW | 4,57 Lei | |
| 35 | 429735-00 | 10 | SCREW DW733 | 4,57 Lei | |
| 36 | 285926-00 | 1 | COVER | 17,02 Lei | |
| 37 | 285927-00 | 4 | RETAINER | 5,21 Lei | |
| 38 | 285928-00 | 4 | SPROCKET | 13,85 Lei | |
| 39 | 285929-00 | 1 | COLLAR | 6,23 Lei | |
| 40 | 285930-00 | 2 | PIN | 4,57 Lei | |
| 41 | 429670-00 | 2 | SCREW.SPECIAL | 4,57 Lei | |
| 44 | 285934-00 | 1 | BEARING | 52,22 Lei | |
| 45 | 285935-00 | 2 | SCREW | 4,57 Lei | |
| 46 | 285936-00 | 2 | SCREW | 5,21 Lei | |
| 47 | 285937-00 | 1 | INDICATOR | 13,85 Lei | |
| 48 | 285938-00 | 1 | SCREW | 7,37 Lei | |
| 49 | 285939-00 | 1 | CONTACT PLATE | 19,95 Lei | |
| 50 | 285940-00 | 2 | ROLLER | 195,02 Lei | |
| 50 | N467842 | 2 | ROLLER | 195,02 Lei | |
| 50 | NA172783 | 2 | ROLLER | 252,58 Lei | |
| 51 | 429612-00 | 1 | COVER | 25,54 Lei | |
| 52 | 330024-00 | 3 | SCREW | 4,57 Lei | |
| 53 | 285942-00 | 1 | HEAD DW733 | 667,9 Lei | |
| 54 | 429671-00 | 2 | SCREW SPECIAL | 4,57 Lei | |
| 55 | 285943-00 | 1 | LENS | 88,55 Lei | |
| 56 | 285944-00 | 2 | BRACKET | 7,37 Lei | |
| 56 | NA172788 | 1 | BRACKET SA | 17,4 Lei | |
| 57 | 285945-00 | 4 | BUSH | 15,12 Lei | |
| 57 | N467840 | 4 | BUSHING | 15,12 Lei | |
| 58 | 285946-00 | 1 | SPRING | 7,37 Lei | |
| 59 | 285944-00 | 2 | BRACKET | 7,37 Lei | |
| 59 | NA172788 | 1 | BRACKET SA | 17,4 Lei | |
| 60 | 285948-00 | 1 | SPRING | 5,21 Lei | |
| 61 | 285949-00 | 1 | COVER | 13,85 Lei | |
| 64 | 285952-00 | 1 | STUD | 8,64 Lei | |
| 65 | 285953-00 | 1 | NUT | 4,57 Lei | |
| 66 | 285954-00 | 2 | BRACKET | 34,05 Lei | |
| 67 | 285955-00 | 2 | CIRCLIP | 4,57 Lei | |
| 68 | 285956-00 | 1 | CON ROD SA | 181,55 Lei | |
| 69 | 285957-00 | 2 | SPRING | 7,37 Lei | |
| 70 | 429673-00 | 7 | SCREW.SPECIAL | 4,57 Lei | |
| 71 | 285959-00 | 2 | BRACKET | 30,87 Lei | |
| 72 | 285960-00 | 2 | CHAIN | 21,85 Lei | |
| 73 | 285961-00 | 3 | SPRING | 8,64 Lei | |
| 74 | 285962-00 | 1 | PLATE | 8,64 Lei | |
| 76 | 285964-00 | 1 | BEARING | 70,39 Lei | |
| 77 | 285965-00 | 1 | CIRCLIP | 7,37 Lei | |
| 78 | 285966-00 | 1 | PULLEY | 41,93 Lei | |
| 79 | 285967-00 | 1 | NUT | 7,37 Lei | |
| 80 | 285968-00 | 1 | BELT | 145,09 Lei | |
| 81 | 285969-00 | 1 | KEY | 6,23 Lei | |
| 88 | 285976-00 | 1 | DEFLECTOR | 96,56 Lei | |
| 89 | 285977-00 | 1 | SEAL | 4,57 Lei | |
| 90 | 285978-00 | 1 | TOOL TRAY | 52,22 Lei | |
| 91 | 429674-00 | 2 | SCREW | 4,57 Lei | |
| 93 | 285981-00 | 2 | HANDLE | 57,81 Lei | |
| 94 | 285982-00 | 4 | CLIP | 4,57 Lei | |
| 95 | 285983-00 | 1 | COVER HOUSING | 252,58 Lei | |
| 96 | 285984-00 | 4 | SCREW | 6,23 Lei | |
| 97 | 285985-00 | 1 | HANDLE SA | 57,81 Lei | |
| 98 | 429611-00 | 1 | SCALE | 7,37 Lei | |
| 99 | 285987-00 | 1 | GASKET | 4,57 Lei | |
| 100 | 285988-00 | 1 | WASHER | 4,57 Lei | |
| 101 | 285989-00 | 1 | SCREW | 5,21 Lei | |
| 102 | 429692-00 | 1 | SWITCH SA | 181,55 Lei | |
| 104 | 429605-00 | 1 | SWITCH COVER | 7,37 Lei | |
| 106 | 285994-00 | 2 | SCREW | 4,57 Lei | |
| 107 | 285995-00 | 1 | WASHER | 4,57 Lei | |
| 110 | 285998-00 | 1 | HOUSING SWITCH | 96,56 Lei | |
| 111 | 285999-00 | 3 | PIN | 4,57 Lei | |
| 112 | 286000-00 | 1 | PLATE | 7,37 Lei | |
| 113 | 286001-00 | 1 | SEAL | 4,57 Lei | |
| 114 | 286002-00 | 1 | BEARING | 41,93 Lei | |
| 116 | 286003-00 | 1 | GEARCASE SA | 169,36 Lei | |
| 117 | 286004-00 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 118 | 286005-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 119 | 429607-00 | 1 | CIRCUIT BREAKER | 30,87 Lei | |
| 120 | 429672-00 | 3 | SCREW SPECIAL | 4,57 Lei | |
| 121 | 286260-00 | 6 | SCREW | 4,57 Lei | |
| 122 | 286009-00 | 1 | SCREW | 4,57 Lei | |
| 123 | 286010-00 | 3 | SCREW | 4,57 Lei | |
| 124 | 286011-00 | 1 | SPINDLE | 52,22 Lei | |
| 125 | 286012-00 | 1 | WOODRUFF KEY | 7,37 Lei | |
| 126 | 286013-00 | 1 | BEARING | 57,81 Lei | |
| 127 | 286014-00 | 1 | Gear | 70,39 Lei | |
| 128 | 286015-00 | 1 | SPINDLE | 57,81 Lei | |
| 129 | 286020-00 | 1 | WOODRUFF KEY | 6,23 Lei | |
| 130 | 286017-00 | 1 | Gear | 70,39 Lei | |
| 132 | 286018-00 | 2 | BUSHING | 4,57 Lei | |
| 134 | 286019-00 | 1 | SPINDLE | 52,22 Lei | |
| 135 | 286016-00 | 1 | WOODRUFF KEY | 6,23 Lei | |
| 136 | 286021-00 | 1 | Gear | 96,56 Lei | |
| 137 | 286022-00 | 1 | CLAMP | 4,57 Lei | |
| 138 | 286023-00 | 1 | GEARCASE COVER | 70,39 Lei | |
| 139 | 286024-00 | 1 | BEARING | 41,93 Lei | |
| 140 | 429610-00 | 1 | ARMATURE SA | 613,14 Lei | |
| 141 | 286026-00 | 2 | SCREW | 5,21 Lei | |
| 142 | 286027-00 | 1 | BEARING | 37,73 Lei | |
| 143 | 286028-00 | 1 | BAFFLE | 41,93 Lei | |
| 144 | 429609-00 | 1 | FIELD SA | 240,38 Lei | |
| 145 | 286030-00 | 1 | FIELDCASE | 130,35 Lei | |
| 146 | 286031-00 | 2 | BRUSH CAP | 4,57 Lei | |
| 147 | 429608-00 | 2 | BRUSH | 30,87 Lei | |
| 148 | 286033-00 | 2 | BRUSH HOLDER | 34,05 Lei | |
| 149 | 286034-00 | 2 | SCREW | 4,57 Lei | |
| 150 | 286035-00 | 1 | PULLEY | 34,05 Lei | |
| 151 | 286036-00 | 1 | IDENTITY LABEL | 19,95 Lei | |
| 152 | 429626-00 | 1 | CABLE AND PLUG | 130,35 Lei | |
| 154 | 429620-00 | 2 | WARNING LABEL | 6,23 Lei | |
| 156 | 286039-00 | 1 | WRENCH | 15,12 Lei | |
| 157 | 497570-02 | 1 | KEY kc1440 | 4,57 Lei | |
| 160 | 1004514-17 | 1 | RATING PLATE | 7,37 Lei | |
| 161 | 429621-00 | 1 | LABEL | 5,21 Lei | |
| 163 | 429619-00 | 1 | LABEL | 6,23 Lei | |
| 164 | 429618-00 | 1 | LABEL | 6,23 Lei | |
| 165 | 94593-03 | 1 | TERMINAL | 4,57 Lei | |
| 169 | 286425-00 | 1 | SPRING | 4,57 Lei | |
| 170 | 429616-00 | 1 | ANTI KICK BACK | 195,02 Lei | |
| 171 | 429615-00 | 1 | VACUUM ADAPTOR | 30,87 Lei | |
| 173 | 1004514-14 | 1 | CAPACITOR | 181,55 Lei | |
| 174 | 429676-00 | 2 | BUMPER | 6,23 Lei | |
| 175 | 286052-00 | 6 | SCREW | 4,57 Lei | |
| 175 | 330045-13 | 6 | SCREW | 4,57 Lei | |
| 176 | 429701-00 | 1 | SCREW SPECIAL dw733 | 4,57 Lei | |
| 177 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 178 | 429708-00 | 1 | LEAD | 17,02 Lei | |
| 179 | 429614-00 | 1 | DUST EXTRACTOR | 181,55 Lei | |
| 182 | 1004514-01 | 1 | PUSHROD | 34,05 Lei | |
| 183 | 1004514-02 | 1 | CUTTER BLOCK | 750,36 Lei | |
| 184 | 1004540-00 | 1 | BLADE PAIR | 300,47 Lei | |
| 184 | N887854 | 1 | BLADE PAIR | 667,9 Lei | |
| 185 | 1004514-04 | 4 | SCREW | 6,23 Lei | |
| 186 | 1004514-05 | 2 | CLAMP SA | 88,55 Lei | |
| 187 | 1004514-06 | 2 | BLADE CLAMP | 70,39 Lei | |
| 188 | 1004514-07 | 14 | SCREW | 4,57 Lei | |
| 189 | 1004514-08 | 1 | SCREW | 4,57 Lei | |
| 190 | 1004514-09 | 1 | BUSHING | 13,85 Lei | |
| 191 | 1004514-10 | 1 | PARTS PACK | 34,05 Lei | |
| 192 | 1004514-11 | 1 | GUIDE | 34,05 Lei | |
| 193 | 1004514-12 | 1 | HEX KEY 2.5 MM | 4,57 Lei | |
| 800 | 286445-00 | 1 | GREASE | 1378,75 Lei | |
| 801 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei |
