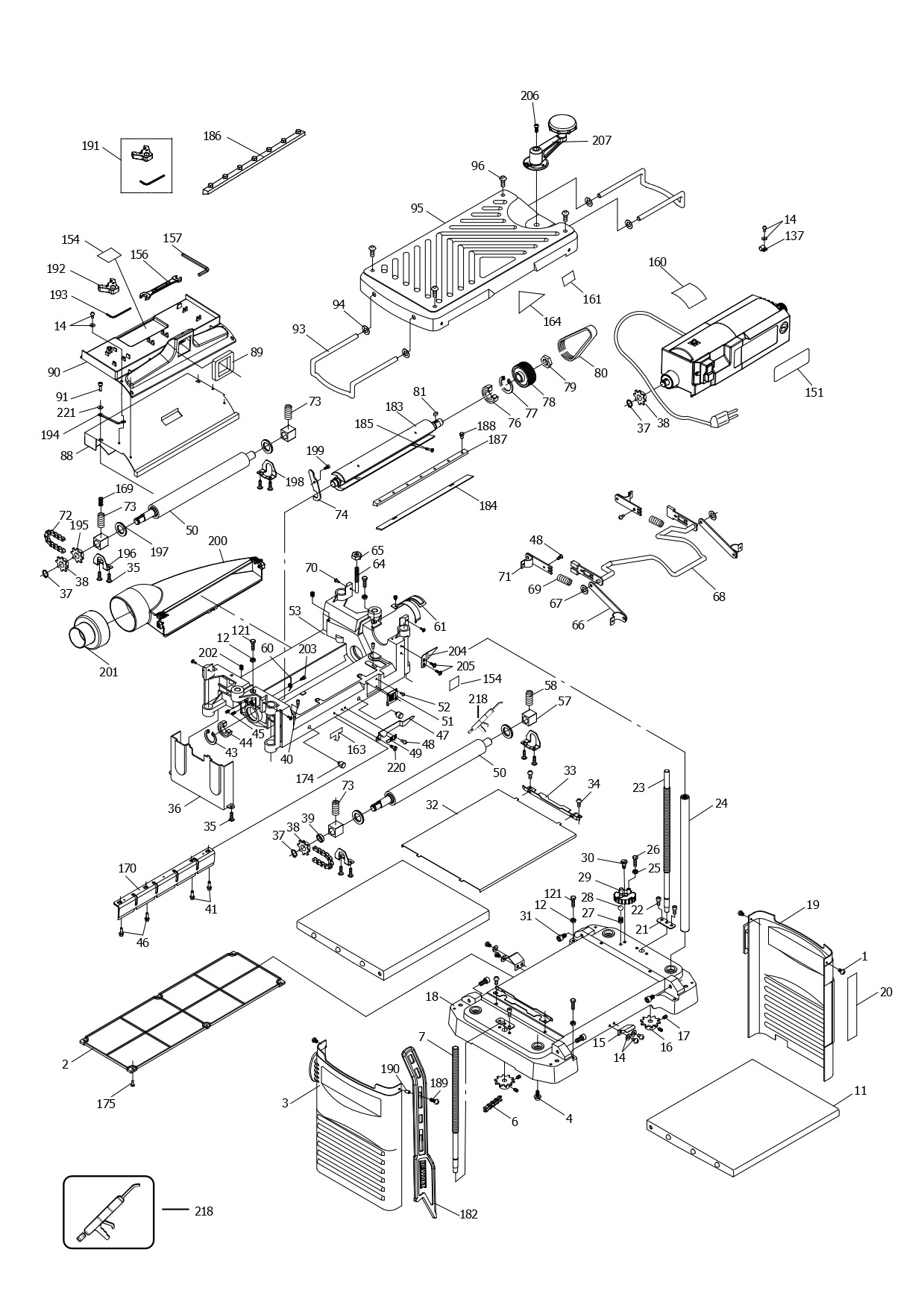

DEWALT PLANER THICKNESSER (Type 11)
SKU Produs: DW733 /Type: 11
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N467888 | 3 | SCREW | 4,57 Lei | |
| 2 | N887869 | 1 | BOTTOM PLATE | 106,98 Lei | |
| 3 | N467889 | 1 | COVER | 130,35 Lei | |
| 4 | N467890 | 4 | SCREW SPECIAL | 13,85 Lei | |
| 6 | N467912 | 1 | CHAIN | 145,09 Lei | |
| 11 | N470337 | 2 | TABLE ASSEMBLY | 195,02 Lei | |
| 12 | N467874 | 6 | NUT | 4,57 Lei | |
| 15 | N467910 | 2 | PLATE | 10,29 Lei | |
| 16 | N467911 | 2 | SPROCKET | 19,95 Lei | |
| 18 | N907186 | 1 | BASE | 1947,04 Lei | |
| 19 | N467891 | 1 | COVER | 130,35 Lei | |
| 20 | 382590-00 | 1 | LABEL - SCALE | 5,21 Lei | |
| 23 | N467908 | 1 | DRIVING ROD | 52,22 Lei | |
| 24 | N467883 | 4 | STRUT | 96,56 Lei | |
| 25 | N467887 | 1 | NUT | 4,57 Lei | |
| 27 | N467878 | 1 | SPRING | 4,57 Lei | |
| 28 | N467881 | 1 | BALL STEEL | 4,57 Lei | |
| 29 | N887827 | 1 | TURRET | 25,54 Lei | |
| 30 | N467885 | 1 | TURRET SCREW | 5,21 Lei | |
| 31 | N467905 | 1 | SCREW | 13,85 Lei | |
| 32 | N467882 | 1 | PLATE | 106,98 Lei | |
| 33 | N467880 | 2 | PLATE GUIDE | 10,29 Lei | |
| 36 | N467875 | 1 | CHAIN COVER | 19,95 Lei | |
| 37 | N467846 | 4 | RETAINING RING | 4,57 Lei | |
| 38 | N467844 | 3 | SPROCKET | 8,64 Lei | |
| 39 | N467848 | 1 | COLLAR | 5,21 Lei | |
| 40 | N470447 | 2 | SCREW | 4,57 Lei | |
| 43 | N467839 | 1 | RETAINING RING | 4,57 Lei | |
| 44 | N467841 | 1 | BEARING | 21,85 Lei | |
| 45 | N467868 | 2 | SCREW | 4,57 Lei | |
| 47 | N467864 | 1 | INDICATOR | 7,37 Lei | |
| 49 | N471077 | 1 | SPRING PLATE | 8,64 Lei | |
| 50 | N467842 | 2 | ROLLER | 195,02 Lei | |
| 51 | N887866 | 1 | COVER | 17,02 Lei | |
| 53 | N907194 | 1 | HEAD | 850,09 Lei | |
| 57 | N467840 | 4 | BUSHING | 15,12 Lei | |
| 58 | N467849 | 1 | SPRING | 4,57 Lei | |
| 60 | N467853 | 1 | SPRING | 4,57 Lei | |
| 64 | N467859 | 1 | STUD | 12,71 Lei | |
| 65 | N467860 | 1 | NUT | 4,57 Lei | |
| 66 | N468242 | 2 | BRACKET | 5,21 Lei | |
| 67 | N468243 | 2 | RETAINING RING | 4,57 Lei | |
| 68 | N468241 | 1 | ROD ASSEMBLY | 145,09 Lei | |
| 69 | N467706 | 2 | SPRING | 4,57 Lei | |
| 71 | N468240 | 2 | BRACKET | 5,21 Lei | |
| 72 | N467852 | 2 | CHAIN | 37,73 Lei | |
| 73 | N467850 | 3 | CHAIN WHEEL SPRING | 4,57 Lei | |
| 74 | N467854 | 1 | LOCK LEVER | 5,21 Lei | |
| 77 | N467724 | 1 | RETAINING RING | 4,57 Lei | |
| 78 | N893621 | 1 | PULLEY | 96,56 Lei | |
| 79 | N467725 | 1 | NUT | 4,57 Lei | |
| 80 | N467726 | 1 | BELT | 264,01 Lei | |
| 81 | N467728 | 1 | KEY | 4,57 Lei | |
| 88 | N468248 | 1 | DEFLECTOR ASSY. | 96,56 Lei | |
| 89 | N467956 | 1 | SEAL | 6,23 Lei | |
| 90 | N887830 | 1 | TRAY | 34,05 Lei | |
| 93 | N467693 | 2 | HANDLE | 37,73 Lei | |
| 94 | N467694 | 4 | CIRCLIP | 10,29 Lei | |
| 95 | N907191 | 1 | COVER HOUSING | 331,47 Lei | |
| 102 | N885757 | 1 | SWITCH | 130,35 Lei | |
| 104 | N888418 | 1 | SWITCH COVER | 5,21 Lei | |
| 107 | N467957 | 1 | SCREW | 4,57 Lei | |
| 110 | N467914 | 1 | HOUSING-SWITCH | 130,35 Lei | |
| 113 | N470369 | 1 | DUST SEAL | 4,57 Lei | |
| 114 | N467930 | 1 | BALL BEARING | 17,02 Lei | |
| 116 | N470357 | 1 | GEAR CASE ASSY. | 106,98 Lei | |
| 117 | N467959 | 1 | STRAIN RELIEF | 4,57 Lei | |
| 118 | N467962 | 1 | CORD CLAMP | 4,57 Lei | |
| 119 | NA072173 | 1 | CIRCUIT BREAKER | 34,05 Lei | |
| 120 | N467931 | 1 | SCREW | 4,57 Lei | |
| 122 | N467934 | 1 | SCREW | 4,57 Lei | |
| 123 | N467931 | 3 | SCREW | 4,57 Lei | |
| 124 | N467932 | 1 | SPINDLE | 30,87 Lei | |
| 125 | N467728 | 1 | KEY | 4,57 Lei | |
| 126 | N467841 | 1 | BEARING | 21,85 Lei | |
| 127 | N467939 | 1 | Gear | 96,56 Lei | |
| 128 | N467938 | 1 | GEAR SHAFT | 41,93 Lei | |
| 129 | N467937 | 1 | KEY | 4,57 Lei | |
| 130 | N467940 | 1 | Gear | 57,81 Lei | |
| 132 | N467941 | 2 | PIN | 4,57 Lei | |
| 134 | N467943 | 1 | GEAR SHAFT | 41,93 Lei | |
| 135 | N467944 | 1 | KEY | 4,57 Lei | |
| 136 | N467942 | 1 | Gear | 57,81 Lei | |
| 137 | N467963 | 1 | CLAMP | 4,57 Lei | |
| 138 | N470363 | 1 | GEAR CASE COVER | 37,73 Lei | |
| 139 | N467917 | 1 | BALL BEARING | 21,85 Lei | |
| 140 | N888136 | 1 | ARMATURE | 472,24 Lei | |
| 141 | N467915 | 2 | SCREW | 4,57 Lei | |
| 142 | N467922 | 1 | BALL BEARING | 19,95 Lei | |
| 143 | N467921 | 1 | BAFFLE | 4,57 Lei | |
| 144 | N888137 | 1 | FIELD SA | 433,24 Lei | |
| 144 | N888162 | 1 | TURRET | 51 Lei | |
| 145 | N467916 | 1 | FIELD CASE | 157,92 Lei | |
| 146 | N467923 | 2 | BRUSH CAP | 4,57 Lei | |
| 147 | N885811 | 2 | BRUSH | 41,93 Lei | |
| 148 | N467925 | 2 | BRUSH HOLDER | 13,85 Lei | |
| 154 | 390085-00 | 2 | WARNING LABEL | 5,21 Lei | |
| 156 | N467698 | 1 | WRENCH | 30,87 Lei | |
| 157 | N887868 | 1 | KEY | 13,85 Lei | |
| 161 | 390084-00 | 1 | LABEL | 4,57 Lei | |
| 165 | N467930 | 1 | BALL BEARING | 17,02 Lei | |
| 169 | N467851 | 1 | SPRING | 4,57 Lei | |
| 170 | N887860 | 1 | ANTI KICK BACK | 106,98 Lei | |
| 174 | N467870 | 2 | BUMPER | 5,21 Lei | |
| 182 | N887825 | 1 | PUSHROD | 57,81 Lei | |
| 183 | N887852 | 1 | CUTTER BLOCK | 750,36 Lei | |
| 184 | N887854 | 1 | BLADE PAIR | 667,9 Lei | |
| 186 | N922921 | 2 | CLAMP SA | 130,35 Lei | |
| 187 | N887853 | 2 | BLADE CLAMP | 106,98 Lei | |
| 190 | N887826 | 1 | BUSHING | 4,57 Lei | |
| 191 | N922947 | 1 | PARTS PACK | 30,87 Lei | |
| 192 | N887859 | 1 | GUIDE | 30,87 Lei | |
| 193 | N887867 | 1 | HEX KEY | 5,21 Lei | |
| 194 | N887834 | 2 | CONNECTOR | 4,57 Lei | |
| 195 | N467845 | 1 | SHORT SPROCKET | 7,37 Lei | |
| 196 | N467843 | 2 | BRACKET RH | 8,64 Lei | |
| 197 | N467838 | 4 | WASHER | 13,85 Lei | |
| 198 | N467847 | 2 | BRACKET LH | 8,64 Lei | |
| 199 | N467855 | 1 | SCREW | 4,57 Lei | |
| 200 | NA073155 | 1 | DUST PORT | 130,35 Lei | |
| 201 | N467717 | 1 | VACUUM ADAPTOR | 15,12 Lei | |
| 202 | N535059 | 2 | COIL | 7,37 Lei | |
| 203 | N536396 | 1 | SCREW | 4,57 Lei | |
| 204 | N467863 | 1 | POINTER | 6,23 Lei | |
| 205 | N470208 | 2 | SCREW | 4,57 Lei | |
| 206 | N887843 | 2 | SCREW | 4,57 Lei | |
| 207 | N893619 | 1 | HANDLE SA | 52,22 Lei | |
| 208 | N467926 | 2 | SCREW | 4,57 Lei | |
| 209 | N470365 | 1 | SEAL | 5,21 Lei | |
| 210 | N467955 | 2 | SCREW | 4,57 Lei | |
| 211 | N470433 | 2 | WASHER | 4,57 Lei | |
| 212 | N894413 | 1 | PROTECTOR | 4,57 Lei | |
| 213 | N470434 | 6 | PLUG | 4,57 Lei | |
| 214 | N470435 | 6 | SLEEVE | 4,57 Lei | |
| 215 | N467957 | 2 | SCREW | 4,57 Lei | |
| 216 | N894412 | 1 | WASHER | 4,57 Lei | |
| 217 | N894409 | 1 | WASHER SPRING | 4,57 Lei | |
| 218 | N470364 | 1 | GREASE | 4,57 Lei | |
| 219 | N885790 | 1 | CAPACITOR | 375,31 Lei | |
| 220 | N467866 | 1 | INDICATOR SCREW | 4,57 Lei | |
| 221 | NA114663 | 1 | WASHER | 13,85 Lei |
