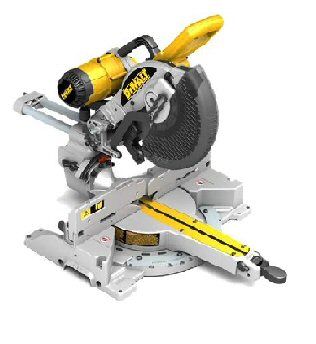

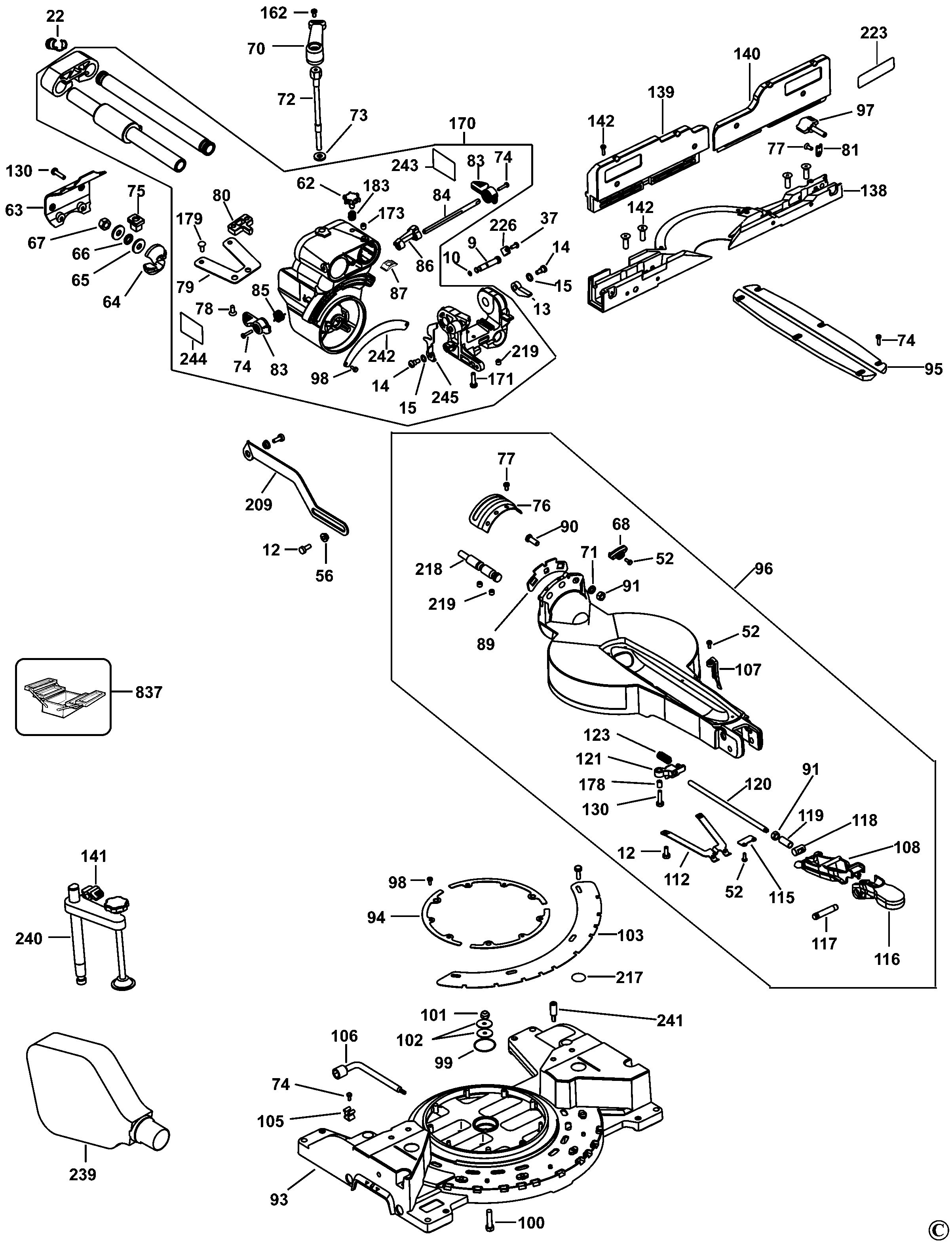

DEWALT MITRE SAW (Type 5)
SKU Produs: DW717XPS /Type: 5
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N819417 | 1 | SA ARM DW717 EU SERVICE | 570,96 Lei | |
| 2 | 641445-00 | 1 | BELT COVER | 52,22 Lei | |
| 3 | 330045-14 | 9 | SCREW M5X16 T25 | 4,57 Lei | |
| 4 | 146751-00 | 1 | SHAFT,PIVOT | 17,02 Lei | |
| 5 | 146732-00 | 2 | SPACER | 5,21 Lei | |
| 6 | N039404 | 1 | SPRING | 70,39 Lei | |
| 7 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 8 | 148296-00 | 2 | PLASTIC WASHER | 5,21 Lei | |
| 9 | 387130-00 | 1 | PIN, LOCKING | 17,02 Lei | |
| 10 | 34158-00 | 1 | GASKET | 4,57 Lei | |
| 12 | 330045-23 | 5 | SCREW | 4,57 Lei | |
| 13 | 153603-01 | 1 | STOP, PAWL | 7,37 Lei | |
| 14 | 153639-00 | 1 | SHOULDER SCREW | 4,57 Lei | |
| 15 | 153655-00 | 1 | WAVY WASHER | 4,57 Lei | |
| 16 | N185664 | 1 | SCREW | 15,12 Lei | |
| 17 | 150718-00 | 1 | NUT WING | 4,57 Lei | |
| 19 | 385915-02 | 4 | SCREW | 4,57 Lei | |
| 20 | 618198-00 | 1 | SCREW | 6,23 Lei | |
| 22 | 615851-00 | 1 | INSULATED BUSHING [POLYONE LM-318-G001] | 19,95 Lei | |
| 23 | 647776-00 | 1 | BLADE BOLT SC | 6,23 Lei | |
| 24 | 151962-01 | 1 | CLAMP,OUTER | 19,95 Lei | |
| 25 | 604770-00 | 1 | ADAPTOR | 17,02 Lei | |
| 26 | 644999-00 | 1 | BUSHING,ARBOR | 30,87 Lei | |
| 28 | 641465-00 | 1 | GEAR AND SPINDLE SA | 240,38 Lei | |
| 29 | 330003-66 | 1 | BEARING,BALL | 41,93 Lei | |
| 30 | 391616-00 | 1 | BEARING NEEDLE | 15,12 Lei | |
| 34 | N066269 | 1 | SHAFT SA | 195,02 Lei | |
| 35 | 860079-03 | 1 | RING,SPRING SHAFT D12 UNI7435 | 4,57 Lei | |
| 36 | 616726-00 | 1 | CIRCLIPD.40 7437 | 4,57 Lei | |
| 37 | 330045-49 | 1 | SCREW | 4,57 Lei | |
| 45 | 641459-00 | 1 | GASKET | 15,12 Lei | |
| 47 | N767583 | 1 | BELT | 80,04 Lei | |
| 48 | N004510 | 1 | DRIVE PULLEY | 41,93 Lei | |
| 49 | 153561-00 | 1 | LOCKING PIN | 7,37 Lei | |
| 50 | 448176-00 | 1 | SPRING | 4,57 Lei | |
| 51 | 393071-00 | 1 | PLATE | 4,57 Lei | |
| 52 | 330045-45 | 5 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 53 | 153559-00 | 1 | WASHER | 4,57 Lei | |
| 56 | 146740-00 | 2 | SLEEVE | 4,57 Lei | |
| 57 | 641470-00 | 1 | SCREW | 4,57 Lei | |
| 60 | 330045-15 | 5 | Screw Metal | 4,57 Lei | |
| 62 | 618156-00 | 1 | LOCK KNOB | 15,12 Lei | |
| 63 | 641455-00 | 1 | SUPPORT PLATE | 17,02 Lei | |
| 64 | 618145-00 | 2 | BUSHING | 15,12 Lei | |
| 65 | 153781-00 | 2 | LAP WASHER | 6,23 Lei | |
| 66 | 153451-00 | 1 | BEARING THRUST | 5,21 Lei | |
| 67 | 625393-00 | 1 | LOCK NUT | 4,57 Lei | |
| 68 | 641425-00 | 1 | POINTER | 6,23 Lei | |
| 70 | 618236-00 | 1 | HANDLE | 17,02 Lei | |
| 71 | 330016-03 | 3 | WASHER, PLAIN. STEEL, 8X16X1.6 THICK | 4,57 Lei | |
| 72 | 618148-00 | 1 | ROD | 17,4 Lei | |
| 73 | 153792-00 | 2 | LAP WASHER | 4,57 Lei | |
| 74 | 330045-06 | 11 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 75 | 618160-00 | 1 | BLOCK | 21,85 Lei | |
| 76 | 626440-00 | 1 | SECTOR BEVEL | 17,02 Lei | |
| 77 | 098103-18 | 4 | Screw Thread Forming | 4,57 Lei | |
| 78 | 330045-23 | 1 | SCREW | 4,57 Lei | |
| 79 | 641466-00 | 1 | SPRING | 21,85 Lei | |
| 80 | 641467-00 | 1 | PAWL | 17,02 Lei | |
| 81 | 641484-00 | 2 | PLATE | 5,21 Lei | |
| 83 | N019349 | 2 | LEVER | 7,37 Lei | |
| 84 | 618153-00 | 1 | ROD | 14,2 Lei | |
| 85 | 618259-00 | 1 | SPRING TORSION | 4,57 Lei | |
| 86 | N059591 | 1 | CAM | 6,4 Lei | |
| 89 | N091092 | 1 | PLATE | 24,9 Lei | |
| 90 | 98130-25 | 3 | CARRIAGE BOLT | 5,21 Lei | |
| 91 | 330015-03 | 4 | NUT,HEX | 4,57 Lei | |
| 93 | 641486-00SV | 1 | BASE SA | 1673,25 Lei | |
| 94 | 641416-00 | 3 | PLATE | 7,37 Lei | |
| 95 | 641453-00 | 2 | PLATE | 21,85 Lei | |
| 96 | N713720 | 1 | SA TABLE DW717, SERVICE | 1527,6 Lei | |
| 97 | 147107-07 | 2 | SA BEVEL KNOB | 8,64 Lei | |
| 98 | 330045-05 | 8 | SCREW.TEMP | 4,57 Lei | |
| 99 | 49787-00 | 1 | RING | 4,57 Lei | |
| 100 | 98025-35 | 1 | SCREW TE M8X35 | 5,1 Lei | |
| 101 | N074448 | 1 | NUT | 4,57 Lei | |
| 102 | 153792-00 | 2 | LAP WASHER | 4,57 Lei | |
| 103 | 641443-00 | 1 | DETENT PLATE DW717 | 145,09 Lei | |
| 105 | 391358-01 | 1 | HOLDER | 7,37 Lei | |
| 106 | N040940 | 1 | WRENCH | 25,54 Lei | |
| 107 | 641452-00 | 1 | POINTER | 4,57 Lei | |
| 108 | 641446-00 | 1 | ACTUATOR | 13,85 Lei | |
| 110 | 330045-44 | 4 | SCREW, METAL THD FORM, M4X8 T20 | 4,57 Lei | |
| 112 | 397070-00 | 1 | BLOCK SPRING | 21,85 Lei | |
| 115 | 641448-00 | 1 | RETAINER | 5,21 Lei | |
| 116 | 641456-00 | 1 | LEVER | 30,87 Lei | |
| 117 | 659090-00 | 1 | PIN | 12,71 Lei | |
| 118 | 624460-00 | 1 | PIN | 6,23 Lei | |
| 119 | 624461-00 | 1 | SLEEVE | 6,23 Lei | |
| 120 | 641447-00 | 1 | ROD | 17,02 Lei | |
| 121 | 641424-00 | 1 | BLOCK | 25,54 Lei | |
| 123 | 618253-00 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 124 | 624730-00 | 1 | HANDLE SA | 130,35 Lei | |
| 125 | 330045-18 | 4 | SCREW | 4,57 Lei | |
| 126 | 330019-32 | 5 | SCREW,PLASTITE | 4,57 Lei | |
| 128 | N548978V | 1 | SWITCH BGV1115 | 80,04 Lei | |
| 129 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,57 Lei | |
| 130 | 330045-23 | 3 | SCREW | 4,57 Lei | |
| 131 | N458818 | 1 | MOTOR CABLE | 52,22 Lei | |
| 132 | 330120-23 | 1 | CORDSET (EURO) | 145,09 Lei | |
| 133 | 641438-00 | 1 | HANDLE CARRYING | 21,85 Lei | |
| 134 | 330019-22 | 1 | SCREW (CARRY HANDLE) | 4,57 Lei | |
| 136 | N467585 | 1 | CABLE SA | 31,6 Lei | |
| 137 | 641430-00 | 1 | COVER | 4,57 Lei | |
| 138 | 641411-01 | 1 | FENCE | 213,19 Lei | |
| 139 | 641474-01 | 1 | FENCE LH | 145,09 Lei | |
| 140 | 641475-01SV | 1 | FENCE RH | 399,45 Lei | |
| 141 | 147107-07 | 1 | SA BEVEL KNOB | 8,64 Lei | |
| 143 | 391317-00 | 1 | FIELDCASE | 57,81 Lei | |
| 144 | N284339 | 1 | SA ARMATURE 230V.,SERVICE | 613,14 Lei | |
| 145 | N503672 | 1 | FIELD 240V. DW717, SERVICE | 213,19 Lei | |
| 146 | 394036-00 | 1 | PLATE | 70,39 Lei | |
| 147 | 394034-00 | 1 | SCREW | 6,23 Lei | |
| 148 | 605040-32 | 1 | BEARING | 25,54 Lei | |
| 149 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 150 | 930098-00 | 1 | RING,SPRING SHAFT D15 UNI7435 | 4,57 Lei | |
| 151 | 145312-00 | 1 | RUBBER PLUG | 4,57 Lei | |
| 152 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 153 | N187409 | 1 | SA END CAP + LABEL | 21,85 Lei | |
| 154 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 155 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 156 | 391375-00 | 1 | BAFFLE | 12,71 Lei | |
| 157 | N458123 | 1 | SA BRUSH HOLDER DW777 | 88,55 Lei | |
| 159 | N467742 | 1 | NAMEPLATE DW717XPS-QS T.5 | 12,71 Lei | |
| 160 | 153783-00 | 1 | O RING | 4,57 Lei | |
| 162 | 330045-13 | 3 | SCREW | 4,57 Lei | |
| 163 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 170 | 641496-00 | 1 | SA SUPP.HOUSING+RAILS DW717 | 1565,13 Lei | |
| 171 | 603390-00 | 8 | SCREW | 4,57 Lei | |
| 173 | 153576-04 | 1 | SCREW M8X10 | 13,85 Lei | |
| 178 | 641444-00 | 1 | SLEEVE | 6,23 Lei | |
| 179 | 330045-24 | 2 | SCREW | 4,57 Lei | |
| 180 | 385915-04 | 2 | SCREW S | 4,57 Lei | |
| 183 | 659919-00 | 1 | SPRING | 6,23 Lei | |
| 193 | 645746-00 | 2 | BUSHING NYLINER 10L7-5/8 D27111 | 8,64 Lei | |
| 200 | 395021-00 | 1 | LABEL | 15,12 Lei | |
| 202 | 148608-00 | 1 | INSERT | 4,57 Lei | |
| 203 | 386780-00 | 2 | BEARING | 13,85 Lei | |
| 204 | 641434-01 | 1 | GUARD LOWER | 120,82 Lei | |
| 205 | 641433-00 | 1 | GUARD PLATE | 51 Lei | |
| 205 | N592582 | 1 | PLATE | 52,22 Lei | |
| 206 | 385915-04 | 4 | SCREW S | 4,57 Lei | |
| 207 | N041988 | 1 | PLATE | 34,05 Lei | |
| 208 | 146768-00 | 1 | BUMPER | 4,57 Lei | |
| 209 | 641436-00 | 1 | LINK | 19,95 Lei | |
| 212 | 146750-03 | 1 | RETAINING PLATE | 13,85 Lei | |
| 213 | N040005 | 1 | SPRING | 17,4 Lei | |
| 214 | 148295-00 | 1 | SLEEVE | 7,37 Lei | |
| 215 | 625825-00 | 2 | ROLLER | 5,21 Lei | |
| 216 | 142273-00 | 5 | RING | 4,57 Lei | |
| 217 | 610707-00 | 2 | WARNING LABEL | 4,57 Lei | |
| 218 | 618234-00 | 1 | STUD | 21,85 Lei | |
| 219 | 153666-00 | 4 | SCREW | 4,57 Lei | |
| 221 | 145332-00 | 4 | CONTACT | 4,57 Lei | |
| 222 | 450212-00 | 1 | TERMINAL | 7,37 Lei | |
| 223 | 610710-00 | 2 | WARNING LABEL | 5,21 Lei | |
| 224 | 381028-08 | 2 | BRUSH AND LEAD (single unit) | 57,81 Lei | |
| 225 | 395716-00 | 3 | TERMINAL | 4,57 Lei | |
| 226 | 153669-00 | 2 | BUSH | 4,57 Lei | |
| 228 | 682149-00 | 1 | BUSHING STR.RLF | 13,85 Lei | |
| 230 | 152852-00 | 1 | UNLOCKING LEVER SCREW | 7,37 Lei | |
| 231 | 386196-00 | 1 | SPRING | 7,37 Lei | |
| 236 | 618159-01 | 1 | LEAD SA | 57,81 Lei | |
| 237 | 656549-00 | 1 | TERMINAL BLOCK | 8,64 Lei | |
| 239 | 147734-06 | 1 | DUST BAG DW708 | 30,87 Lei | |
| 240 | N109525 | 1 | CLAMP SA | 88,55 Lei | |
| 241 | 641442-00 | 2 | SCREW | 7,37 Lei | |
| 242 | 641426-00 | 1 | BEVEL SCALE | 17,02 Lei | |
| 243 | 618277-00 | 1 | LABEL PIVOT | 6,23 Lei | |
| 244 | 618278-00 | 1 | LABEL PIVOT | 6,23 Lei | |
| 245 | 641427-00 | 1 | LINK | 10,29 Lei | |
| 248 | 641482-00 | 1 | DEFLECTOR | 12,71 Lei | |
| 255 | N175841 | 1 | Duct Dust | 41,93 Lei | |
| 256 | 330019-02 | 3 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 259 | 330019-05 | 2 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 260 | N174417 | 1 | WARNING LABEL | 5,21 Lei | |
| 261 | 661663-00 | 1 | PADDLE | 19,95 Lei | |
| 262 | 661662-00 | 1 | GUARD | 13,85 Lei | |
| 263 | 330019-11 | 2 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 266 | 627271-00 | 1 | SWITCH LOCK OFF | 4,57 Lei | |
| 267 | 604407-01 | 1 | HEX KEY 2.5 MM | 6,23 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 837 | 559626-99 | 1 | SERVICE TOOL | 526,5 Lei | |
| 837 | 559627-99 | 1 | SERVICE TOOL | 105,8 Lei |
