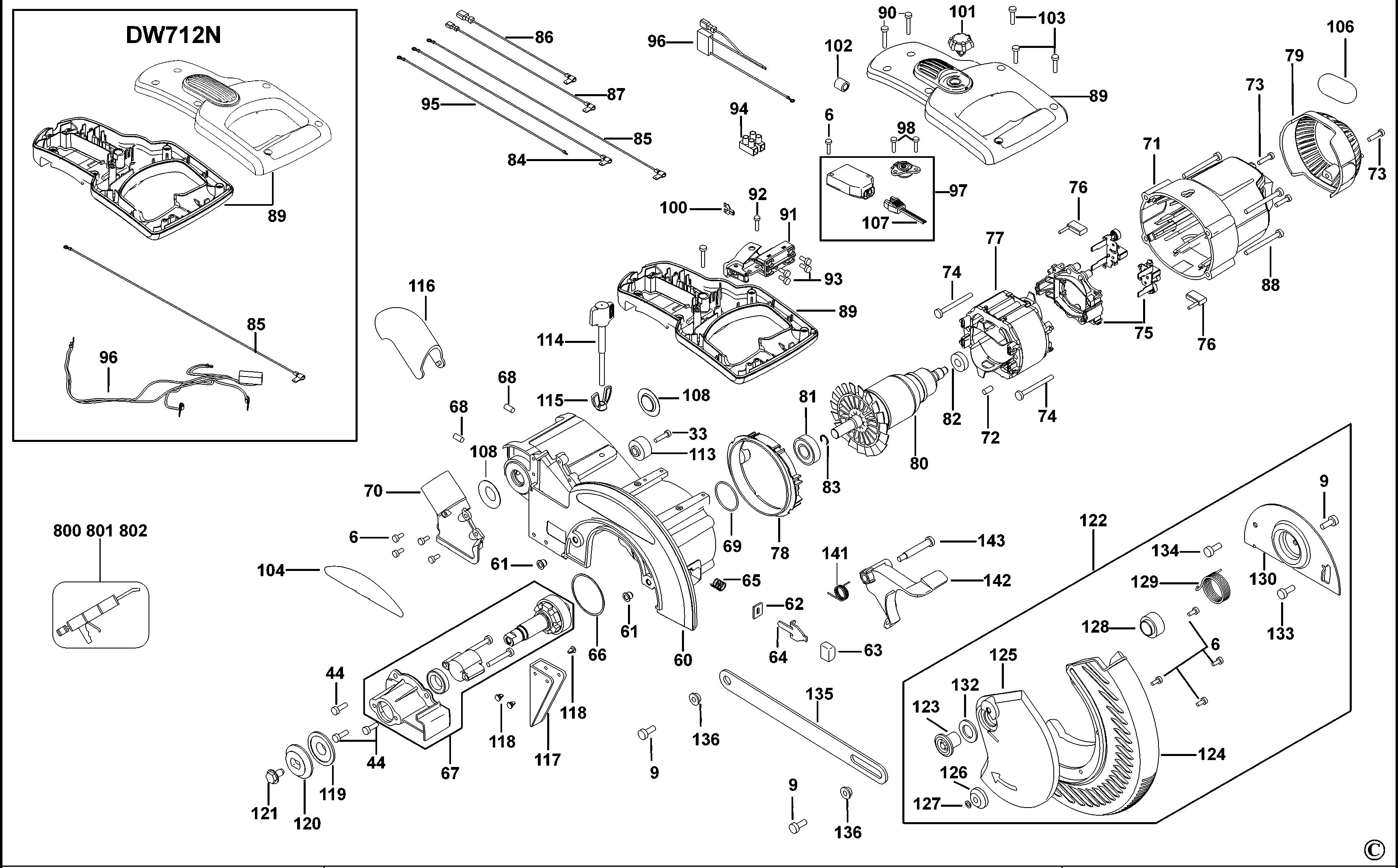

DEWALT MITRE SAW (Type 3)
SKU Produs: DW712 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 869349-00 | 1 | BASE DW712N/TTMS SERVICE | 850,09 Lei | |
| 2 | 153612-00 | 5 | RUBBER FEET | 4,57 Lei | |
| 3 | N690033 | 1 | SCALE | 130,35 Lei | |
| 4 | 604987-00 | 4 | SHOULDER SCREW | 4,7 Lei | |
| 6 | 330045-05 | 22 | SCREW.TEMP | 4,57 Lei | |
| 6 | 330045-05 | 25 | SCREW.TEMP | 4,57 Lei | |
| 9 | 330045-23 | 1 | SCREW | 4,57 Lei | |
| 10 | 869350-00 | 1 | SA TABLE DW712N/TTMS EURO,SERVICE | 713,77 Lei | |
| 11 | 638875-00 | 1 | SCREW,HEX 10x80 DIN 933 LH | 15,12 Lei | |
| 12 | 397062-00 | 1 | LOCK PLATE | 17,02 Lei | |
| 13 | 330045-55 | 4 | SCREW | 4,57 Lei | |
| 14 | 397070-00 | 1 | BLOCK SPRING | 21,85 Lei | |
| 15 | 397073-00 | 1 | LEVER | 5,21 Lei | |
| 16 | 397075-00 | 1 | LEVER LOCK PLATE | 15,12 Lei | |
| 17 | 397065-00 | 1 | LOCK LEVER | 15,12 Lei | |
| 19 | 629395-00 | 1 | KIT MITER LOCK DW712 | 52,22 Lei | |
| 21 | 397063-00 | 1 | DRIVE PIN | 7,37 Lei | |
| 22 | 153576-03 | 3 | SCREW M8X30 | 8,64 Lei | |
| 23 | 397048-00 | 1 | MITER POINTER | 7,37 Lei | |
| 24 | 397090-00 | 1 | BEVEL INDEX | 13,85 Lei | |
| 25 | 605153-00 | 1 | LABEL | 6,23 Lei | |
| 26 | 249233-00 | 2 | WASHER | 4,57 Lei | |
| 27 | 860085-19 | 1 | SCREW,HEX M.8X25 UNI 5739 | 4,57 Lei | |
| 28 | 860092-05 | 1 | NUT,SELF LOCKING M.8 | 4,57 Lei | |
| 29 | 153781-00 | 2 | LAP WASHER | 6,23 Lei | |
| 30 | 613270-00 | 2 | WASHER | 5,21 Lei | |
| 31 | N714363 | 2 | INSERT | 25,54 Lei | |
| 32 | 641363-00 | 1 | FIXED FENCE D27111 | 331,47 Lei | |
| 33 | 330045-33 | 4 | SCREW, TRIL | 5,21 Lei | |
| 35 | 605699-00 | 1 | SA SLIDE BEVEL MECH | 1947,04 Lei | |
| 36 | 397084-00 | 1 | BEVEL SCALE | 12,71 Lei | |
| 37 | 397118-00 | 4 | WEAR GUIDE | 10,29 Lei | |
| 38 | 153586-00 | 2 | RUBBER WASHER | 5,21 Lei | |
| 39 | 616001-00 | 2 | SCREW SHOULDER M5X12 T25 | 4,57 Lei | |
| 40 | 153576-04 | 1 | SCREW M8X10 | 13,85 Lei | |
| 41 | 397088-00 | 2 | BEVEL STOP SPRING | 4,57 Lei | |
| 42 | 397083-00 | 1 | PIN | 41,93 Lei | |
| 43 | 397086-00 | 1 | BEVEL STOP KNOB | 12,71 Lei | |
| 44 | 330045-14 | 5 | SCREW M5X16 T25 | 4,57 Lei | |
| 45 | 606014-00 | 1 | COMPRESSION SPRING | 4,57 Lei | |
| 46 | 147107-06 | 2 | KNOB | 15,12 Lei | |
| 48 | 153603-01 | 1 | STOP, PAWL | 7,37 Lei | |
| 49 | 153655-00 | 1 | WAVY WASHER | 4,57 Lei | |
| 50 | 153639-00 | 1 | SHOULDER SCREW | 4,57 Lei | |
| 51 | 391358-01 | 1 | HOLDER | 7,37 Lei | |
| 54 | 397089-00 | 1 | BEVEL NUT | 19,95 Lei | |
| 55 | 397080-00 | 1 | LOCK LEVER | 12,71 Lei | |
| 56 | 608563-01 | 1 | WRENCH | 22,4 Lei | |
| 57 | 387130-00 | 1 | PIN, LOCKING | 17,02 Lei | |
| 58 | 34158-00 | 1 | GASKET | 4,57 Lei | |
| 59 | 330120-00 | 1 | S/A CORDSET | 70,39 Lei | |
| 60 | 869351-00 | 1 | SA ARM DW712N,SERVICE | 750,36 Lei | |
| 61 | 148608-03 | 2 | INSERT | 13,85 Lei | |
| 62 | 387732-00 | 1 | FELT | 12,71 Lei | |
| 63 | 145350-00 | 1 | BUTTON | 4,57 Lei | |
| 64 | 397135-00 | 1 | UNLOCK LEVER | 13,85 Lei | |
| 65 | 941586-00 | 1 | SPRING | 4,57 Lei | |
| 66 | 616979-00 | 1 | O RING 47,35X1,78 | 4,57 Lei | |
| 67 | 397210-00 | 1 | S/A GEARCASE | 331,47 Lei | |
| 68 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 69 | 696519-00 | 1 | O-RING FOR FA AND BEARING | 4,57 Lei | |
| 70 | 603726-00 | 1 | DUST CHUTE [LM-318-G001] | 5,21 Lei | |
| 71 | 391317-04 | 1 | FIELD CASE [BASF_ULTRAMID_B3EG6] | 41,93 Lei | |
| 72 | 145312-00 | 1 | RUBBER PLUG | 4,57 Lei | |
| 73 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 74 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 75 | 389512-08 | 1 | SA BRUSH HOLDER DW777 | 96,56 Lei | |
| 76 | 381028-07 | 2 | BRUSH 12,5X6,3 105S DW777 | 19,95 Lei | |
| 77 | 869045-00 | 1 | STATORE 230/240V G95 MM | 289,04 Lei | |
| 78 | 391375-00 | 1 | BAFFLE | 12,71 Lei | |
| 79 | 391933-00 | 1 | END CAP [BASF_TERLURAN_GP-22] | 15,12 Lei | |
| 80 | 869071-00 | 1 | ARMATURE 230V.G95 DW712 | 451,79 Lei | |
| 81 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 82 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 83 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 84 | 145371-00 | 1 | YELLOW WIRE [16-18 AWG-RATED 105,600V] | 13,85 Lei | |
| 85 | 398832-00 | 1 | RED WIRE [16-18 AWG-RATED 105,600V) | 13,85 Lei | |
| 86 | 398823-00 | 1 | LEAD BLACK | 17,02 Lei | |
| 87 | 398828-00 | 1 | LEAD WHITE | 15,12 Lei | |
| 88 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 89 | 397177-01 | 1 | HANDLE DW712 EURO | 80,04 Lei | |
| 90 | 330045-08 | 3 | SCREW | 4,57 Lei | |
| 91 | N548978V | 1 | SWITCH BGV1115 | 80,04 Lei | |
| 92 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 93 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,57 Lei | |
| 94 | 326057-00 | 1 | TERMINAL BLOCK [RATED 25A 600V] | 6,23 Lei | |
| 95 | 660071-00 | 1 | SA RED LEAD AWG16 | 6,23 Lei | |
| 96 | 612322-00 | 1 | CAPACITOR DW712 | 25,54 Lei | |
| 97 | N033992 | 1 | S/A MODULE 230V. DW712 SERVICE KIT | 331,47 Lei | |
| 98 | 90611830 | 2 | SCREW | 4,57 Lei | |
| 99 | 640146-00 | 1 | SLIDE ROLLER | 6,23 Lei | |
| 100 | 394046-00 | 1 | ADAPTOR | 6,23 Lei | |
| 101 | 392131-00 | 1 | CONTROL KNOB | 7,37 Lei | |
| 102 | 388414-01 | 1 | FERRITE BEAD | 10,29 Lei | |
| 103 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 104 | 397134-00 | 1 | DEWALT LABEL | 10,29 Lei | |
| 107 | 609138-00 | 1 | CONNECTION | 37,73 Lei | |
| 108 | 148296-00 | 2 | PLASTIC WASHER | 5,21 Lei | |
| 109 | 397130-00 | 1 | TORSION SPRING | 34,05 Lei | |
| 110 | 397129-00 | 2 | PLASTIC BASE | 4,57 Lei | |
| 111 | 397128-00 | 1 | JOINT AXLE | 19,95 Lei | |
| 112 | 605155-00 | 1 | RELIEF, STRAIN HEYCO SR7P-2 | 4,57 Lei | |
| 113 | 146753-00 | 1 | DAMPER | 4,57 Lei | |
| 114 | 147107-05 | 1 | STOP KNOB | 8,64 Lei | |
| 115 | 613365-00 | 1 | WING NUT | 4,57 Lei | |
| 116 | 148520-00 | 1 | DEFLECTOR | 7,37 Lei | |
| 117 | 612788-00 | 1 | DUST CONVEYOR | 7,37 Lei | |
| 118 | 607491-00 | 4 | PUSH RIVET | 4,57 Lei | |
| 119 | 397138-00 | 1 | BLADE INNER DW712 | 17,02 Lei | |
| 120 | 397136-00 | 1 | OUTER FLANGE DW 712 | 10,29 Lei | |
| 121 | 145344-01 | 1 | LOCKING SCREW BLADE | 5,3 Lei | |
| 121 | 869245-00 | 1 | SCREW | 5,21 Lei | |
| 122 | N164918 | 1 | S/A PROTECTION | 225,26 Lei | |
| 123 | 399182-00 | 1 | RETAINING PLATE SPRING S | 17,02 Lei | |
| 124 | N164683 | 1 | BLADE PROTECTION | 70,39 Lei | |
| 125 | 613460-00 | 1 | PROTECTION PLATE | 57,81 Lei | |
| 126 | 146774-00 | 1 | ROLLER | 7,37 Lei | |
| 127 | 604728-00 | 1 | SEAL RING | 4,57 Lei | |
| 128 | 603440-00 | 1 | GUIDE SLEEVE | 4,57 Lei | |
| 129 | 603439-00 | 1 | TORSION SPRING SC | 7,37 Lei | |
| 130 | 399181-00 | 1 | SWINGING ROTATION PLATE | 17,02 Lei | |
| 132 | 612923-00 | 1 | PLASTIC WASHER | 4,57 Lei | |
| 133 | 641470-00 | 1 | SCREW | 4,57 Lei | |
| 134 | 641470-00 | 1 | SCREW | 4,57 Lei | |
| 135 | 397159-00 | 1 | LINK | 30,87 Lei | |
| 136 | 146740-02 | 2 | SYNT. BUSHING | 4,57 Lei | |
| 137 | 640349-00 | 1 | SLIDING FENCE D27111 | 106,98 Lei | |
| 141 | 398472-00 | 1 | TORSION SPRING | 4,57 Lei | |
| 142 | 397150-00 | 1 | UNLOCK LEVER | 8,64 Lei | |
| 143 | 152852-00 | 1 | UNLOCKING LEVER SCREW | 7,37 Lei | |
| 144 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 146 | 613497-00 | 1 | FRICTION DISC | 4,57 Lei | |
| 147 | 615851-00 | 1 | INSULATED BUSHING [POLYONE LM-318-G001] | 19,95 Lei | |
| 162 | 653947-00 | 1 | KNOB M6 D27112 | 7,37 Lei | |
| 163 | 653948-00 | 1 | SCREW, SPECIAL, FENCE CLAMP D27111 | 17,02 Lei | |
| 164 | 634736-00 | 1 | FENCE,SLIDING RH D27111 | 34,05 Lei | |
| 166 | 860094-02 | 1 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,57 Lei | |
| 304 | 621135-00 | 1 | WARNING LABEL | 7,37 Lei | |
| 800 | 610817-00 | 1 | GREASE | 451,79 Lei | |
| 801 | 5140061-28 | 1 | GREASE | 169,36 Lei | |
| 802 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 96,56 Lei |
