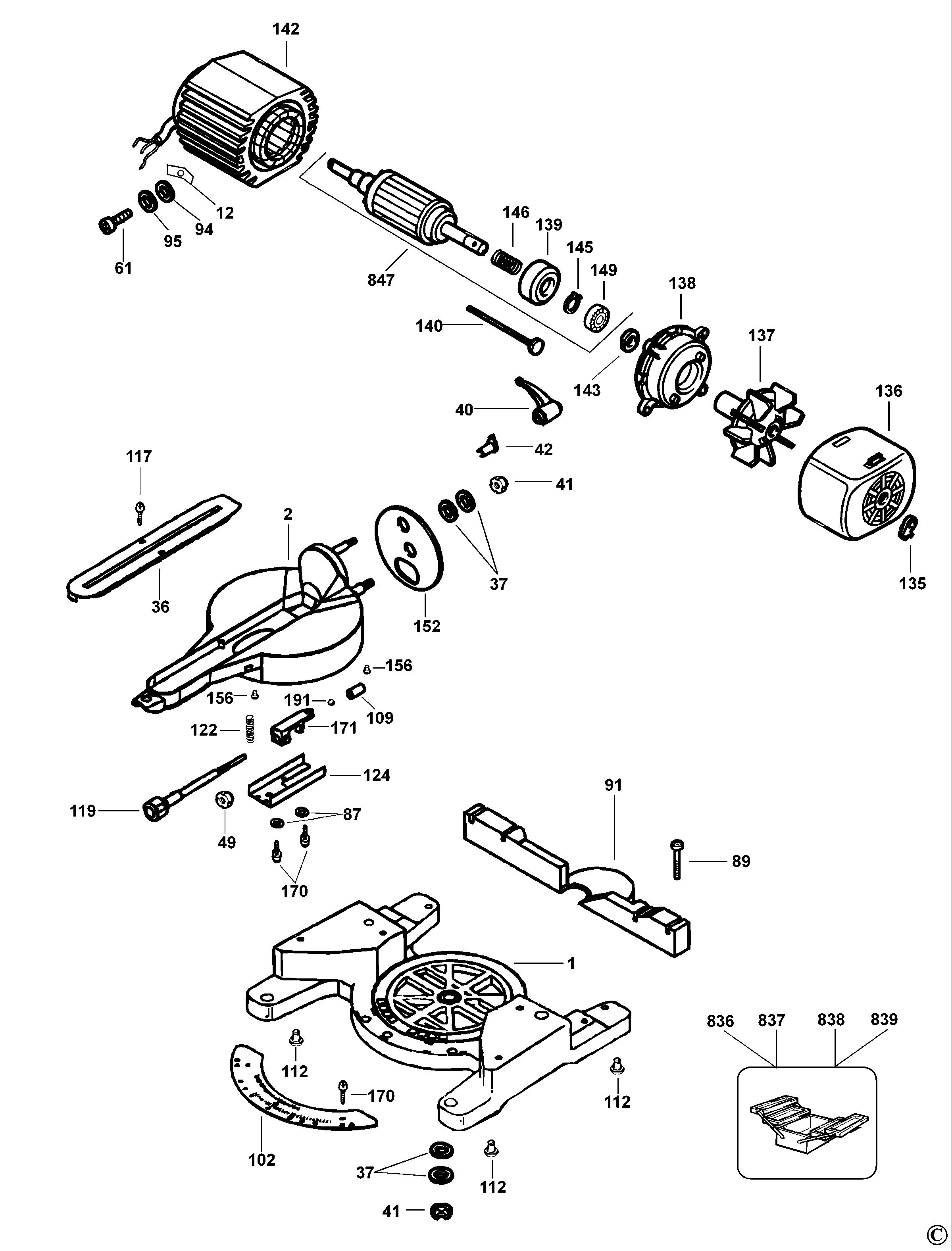

DEWALT MITRE SAW (Type 2)
SKU Produs: DW709 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 861057-01 | 1 | Inner Flange | 42,9 Lei | |
| 4 | 861056-00 | 1 | OUTER FLANGE TGS273 | 31,6 Lei | |
| 5 | 949886-21 | 1 | SOCKET HEAD SCREW SX | 31,6 Lei | |
| 6 | 864693-04 | 1 | SA SWINGING PROTECTION DW711 | 205,7 Lei | |
| 7 | 863039-02 | 1 | MOZZO PROT OSCILL.DW711 | 7,5 Lei | |
| 8 | 860205-01 | 2 | SCREW,CTSK PH/TT M5X12UNI8113 | 4,7 Lei | |
| 10 | 860093-14 | 1 | SCREW,SOCKET M.8X12 UNI 5931 | 4,7 Lei | |
| 11 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 12 | 949761-01 | 2 | WASHER FOR SCREW | 5,3 Lei | |
| 13 | 861918-04 | 1 | FIXED PROTECTION DW711 | 38,6 Lei | |
| 15 | 860079-03 | 1 | RING,SPRING SHAFT D12 UNI7435 | 4,7 Lei | |
| 24 | 861953-00 | 1 | CLAMP LEVER PUSH DW711 | 26,1 Lei | |
| 25 | 863610-00 | 1 | HEAD BLOCKING PLATE DW250-DW25 | 22,4 Lei | |
| 29 | 939072-00 | 1 | WRENCH | 38,6 Lei | |
| 31 | N060327 | 1 | SWITCH | 90,6 Lei | |
| 32 | 861692-00 | 1 | CLAMP SOM 2124149 | 8,8 Lei | |
| 33 | 949889-02 | 2 | SCREW | 4,7 Lei | |
| 34 | 868320-00 | 1 | SWITCH COVER | 17,4 Lei | |
| 36 | 868688-01 | 1 | YELLOW TABLE BASE INSERT | 15,5 Lei | |
| 37 | 949705-01 | 4 | WASHER | 4,7 Lei | |
| 38 | 860085-09 | 1 | SCREW,HEX M.6X20 UNI5739 BLCK | 4,7 Lei | |
| 39 | 860083-12 | 2 | NUT M6 | 4,7 Lei | |
| 40 | 861840-03 | 1 | LEVER SC | 20,4 Lei | |
| 41 | 860092-07 | 1 | NUT,LOCKING M12X1,25 | 4,7 Lei | |
| 42 | 868680-00 | 1 | BEVEL CLAMP DW777 | 14,2 Lei | |
| 46 | 860084-21 | 3 | SELF TAPPING SCREW 4 | 4,7 Lei | |
| 47 | 860073-01 | 3 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 48 | 865410-00 | 3 | PLATE NUT | 4,7 Lei | |
| 49 | 868943-02 | 1 | LOCKING DEVICE | 38,6 Lei | |
| 57 | 861920-00 | 1 | FRONT BOX DW711,BLACK | 17,4 Lei | |
| 58 | 949761-02 | 1 | SHIM | 4,7 Lei | |
| 59 | 949759-01 | 1 | LOCK NUT FOR PIVOT PIN DW250-D | 26,1 Lei | |
| 60 | 860085-07 | 1 | SCREW | 4,7 Lei | |
| 61 | 930076-00 | 2 | SELF TAPPING SCREW 4,2X16 | 4,7 Lei | |
| 62 | 863606-00 | 1 | LEFT TORSIONAL SPRING DW250-DW | 38,6 Lei | |
| 63 | 863590-00 | 1 | RIGHT TORSIONAL SPRING DW250-D | 38,6 Lei | |
| 64 | 863611-00 | 1 | HEAD SHIM DW250-DW252 | 15,5 Lei | |
| 65 | 863602-00 | 1 | HEAD BLOCKING PIN | 15,5 Lei | |
| 68 | 863607-00 | 1 | JOINT AXLE DW250 | 53,4 Lei | |
| 71 | 860094-02 | 1 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,7 Lei | |
| 77 | 863605-00 | 1 | STUD,LOCKING HEAD DW250 | 14,2 Lei | |
| 78 | 946469-00 | 1 | KNOB | 5,3 Lei | |
| 79 | 863026-00 | 1 | GASKET | 4,7 Lei | |
| 81 | 944650-00 | 1 | CLAMP,WIRE ZINC PLATED | 4,7 Lei | |
| 82 | 863573-00 | 1 | CABLE INLET RING DW250-DW252 | 7,5 Lei | |
| 83 | 862429-05 | 1 | HANDLE DW711 | 109,5 Lei | |
| 87 | 860074-00 | 2 | WASHER,SPRING CON.D4.2X10X0.6 | 4,7 Lei | |
| 89 | 330045-26 | 1 | SCREW | 6,4 Lei | |
| 93 | 860084-09 | 1 | SCREW,PAN PHAB 4.2X22 UNI6954 | 4,7 Lei | |
| 94 | 863025-00 | 1 | RUBBER FOR SCREW-DW250-252 | 7,5 Lei | |
| 95 | 860075-00 | 1 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 98 | 949772-23 | 1 | CAPACITOR | 72 Lei | |
| 102 | 868677-00 | 1 | SCALE | 53,4 Lei | |
| 109 | 868707-01 | 1 | SPACER FOR LOCKING SYSTEM DW777 | 4,7 Lei | |
| 112 | 868777-00 | 4 | FOOT | 4,7 Lei | |
| 117 | 860205-08 | 2 | SCREW,PAN PH/TT M.4X14 UNI8112 | 4,7 Lei | |
| 119 | 868943-02 | 1 | LOCKING DEVICE | 38,6 Lei | |
| 122 | 868778-00 | 1 | SPRING | 4,7 Lei | |
| 130 | 862180-08 | 1 | SUPPORT BRACKET DW711 A3 | 270,1 Lei | |
| 135 | 863112-00 | 1 | CAP FOR FAN COVER GUARD DW320 | 4,7 Lei | |
| 136 | 860445-00 | 1 | COVER,FAN MOTOR DW 250 | 26,1 Lei | |
| 137 | 945841-00 | 1 | FAN | 17,4 Lei | |
| 138 | 861345-00 | 1 | END CAP | 72 Lei | |
| 139 | 861336-02 | 1 | CAP D.50+BUSHING | 31,6 Lei | |
| 140 | 863015-00 | 1 | MOTOR TIE ROD-DW320 | 4,7 Lei | |
| 142 | 868412-04 | 1 | STATOR SA 230V | 1185,2 Lei | |
| 143 | 860080-02 | 1 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
| 145 | 861349-00 | 1 | CIRCLIP | 4,7 Lei | |
| 146 | 861338-00 | 1 | SPRING | 4,7 Lei | |
| 147 | 949894-12 | 2 | SCREW | 4,7 Lei | |
| 149 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
| 150 | 861721-12 | 1 | BEARING 6203 2RS ISB | 17,4 Lei | |
| 152 | 947614-00 | 1 | RING D.100 | 13 Lei | |
| 156 | 760298-01 | 5 | PAD, WEAR | 4,7 Lei | |
| 161 | 860084-03 | 1 | SCREW,PAN.PHAB 4.2X9.5UNI6954 | 4,7 Lei | |
| 162 | 123106-00 | 1 | STRAP,CABLE 1/4 H NYLON | 4,7 Lei | |
| 168 | 861257-00 | 1 | CLAMP E25 | 5,3 Lei | |
| 170 | 330045-05 | 7 | SCREW.TEMP | 4,7 Lei | |
| 171 | 868943-02 | 1 | LOCKING DEVICE | 38,6 Lei | |
| 175 | 946862-01 | 1 | SCALE | 14,2 Lei | |
| 191 | 868708-00 | 1 | BALL 6,3 mm | 4,7 Lei | |
| 196 | 949743-02 | 2 | SCREW | 4,7 Lei | |
| 838 | 559570-99 | 1 | SERVICE TOOL | 243,1 Lei | |
| 847 | 868411-01 | 1 | ROTOR DW711+SPRING+RING 8618 | 683,4 Lei |
