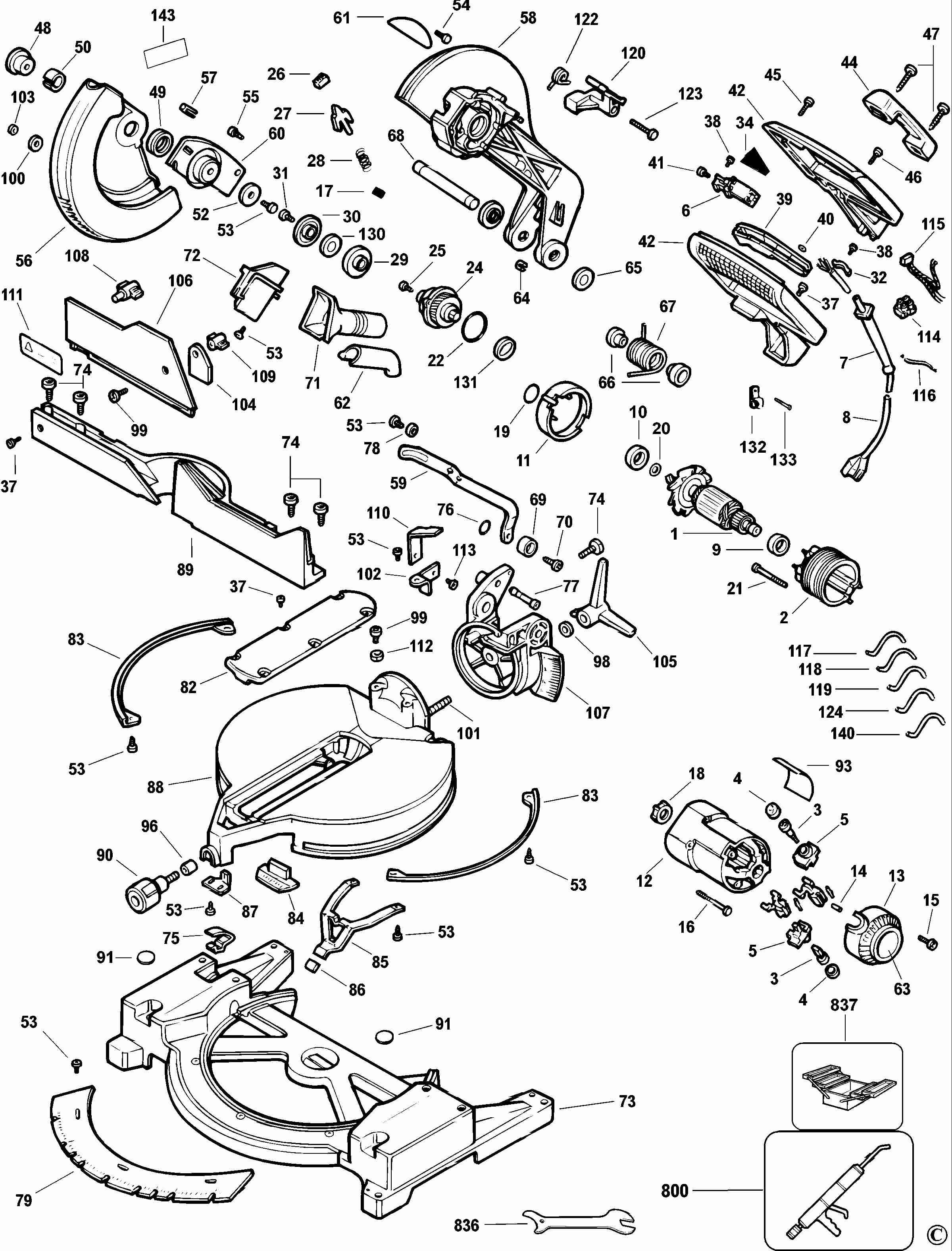

DEWALT MITRE SAW (Type 2-3)
SKU Produs: DW705 /Type: 2-3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 145323-06 | 2 | BRUSH SA | 21,85 Lei | |
| 5 | 147097-09 | 2 | BRUSH HOLDER SA | 96,56 Lei | |
| 7 | 445338-00 | 1 | CORD PROTECTOR | 8,64 Lei | |
| 9 | 605040-20 | 1 | Ball Brg | 17,02 Lei | |
| 10 | 868768-07 | 1 | BEARING 6202 | 34,05 Lei | |
| 13 | 387678-00 | 1 | END CAP DW705 TYPE 2.3 | 165,3 Lei | |
| 14 | 87205-00 | 2 | PIN | 4,5 Lei | |
| 15 | 330019-20 | 2 | SCREW | 4,57 Lei | |
| 16 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 17 | 387732-00 | 1 | FELT | 12,71 Lei | |
| 18 | 137382-01 | 1 | SLEEVE | 5,1 Lei | |
| 19 | 701297-00 | 1 | SEAL | 4,57 Lei | |
| 20 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 21 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 24 | 386824-03SV | 1 | GEAR AND SPINDLE SA | 957,3 Lei | |
| 25 | 330045-14 | 2 | SCREW M5X16 T25 | 4,57 Lei | |
| 26 | 145350-00 | 1 | BUTTON | 4,57 Lei | |
| 27 | 146714-00 | 1 | LOCK | 8,64 Lei | |
| 28 | 58698-00 | 1 | SPRING | 4,7 Lei | |
| 31 | 145344-01 | 1 | LOCKING SCREW BLADE | 5,3 Lei | |
| 31 | 869245-00 | 1 | SCREW | 5,21 Lei | |
| 32 | 003618-00 | 1 | CORD CLAMP | 8,64 Lei | |
| 37 | 330045-05 | 8 | SCREW.TEMP | 4,57 Lei | |
| 38 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 41 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,57 Lei | |
| 42 | 380452-00 | 1 | CLAMSHELL | 157,92 Lei | |
| 45 | 330019-14 | 4 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 46 | 330045-08 | 4 | SCREW | 4,57 Lei | |
| 47 | 330019-22 | 2 | SCREW (CARRY HANDLE) | 4,57 Lei | |
| 48 | 146750-03 | 1 | RETAINING PLATE | 13,85 Lei | |
| 49 | 661454-00 | 1 | SPRING | 8,64 Lei | |
| 50 | 148295-00 | 1 | SLEEVE | 7,37 Lei | |
| 53 | 151891-00 | 16 | SCREW | 4,57 Lei | |
| 54 | 148608-00 | 2 | INSERT | 4,57 Lei | |
| 55 | 394589-01 | 2 | SCREW | 5,21 Lei | |
| 57 | 146768-00 | 1 | BUMPER | 4,57 Lei | |
| 62 | 148520-00 | 1 | DEFLECTOR | 7,37 Lei | |
| 64 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 65 | 148296-00 | 2 | PLASTIC WASHER | 5,21 Lei | |
| 66 | 146732-00 | 2 | SPACER | 5,21 Lei | |
| 67 | N039404 | 1 | SPRING | 70,39 Lei | |
| 68 | 146751-00 | 1 | SHAFT,PIVOT | 17,02 Lei | |
| 69 | 146753-00 | 1 | DAMPER | 4,57 Lei | |
| 70 | 330045-32 | 1 | SCREW | 5,21 Lei | |
| 74 | 330045-33 | 4 | SCREW, TRIL | 5,21 Lei | |
| 76 | 34158-00 | 1 | GASKET | 4,57 Lei | |
| 77 | 387130-00 | 1 | PIN, LOCKING | 17,02 Lei | |
| 78 | 146740-01 | 1 | BUSH | 30,87 Lei | |
| 82 | 146726-02 | 1 | PLATE | 30,87 Lei | |
| 86 | 148611-00 | 1 | COVER | 6,23 Lei | |
| 91 | 394976-00 | 2 | LABEL | 10,29 Lei | |
| 98 | 330016-04 | 1 | WASHER, PLAIN, STEEL,10 * 20 * 2.0 THIC | 4,57 Lei | |
| 99 | 149368-00 | 3 | SCREW | 4,7 Lei | |
| 100 | 146774-00 | 1 | ROLLER | 7,37 Lei | |
| 103 | 142273-00 | 1 | RING | 4,57 Lei | |
| 108 | 147107-02 | 1 | KNOB LOWER | 8,64 Lei | |
| 112 | 99368-04 | 2 | NUT | 4,7 Lei | |
| 114 | 320078-00 | 1 | BLOCK TERMINAL | 4,57 Lei | |
| 122 | 386196-00 | 1 | SPRING | 7,37 Lei | |
| 123 | 152852-00 | 1 | UNLOCKING LEVER SCREW | 7,37 Lei | |
| 130 | 152636-00 | 1 | BLADE HOLDER 2.3 | 12,71 Lei | |
| 131 | 386780-00 | 1 | BEARING | 13,85 Lei | |
| 132 | 153669-00 | 1 | BUSH | 4,57 Lei | |
| 133 | 330045-13 | 1 | SCREW | 4,57 Lei | |
| 160 | 330045-06 | 1 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 800 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 96,56 Lei | |
| 836 | 145378-01 | 1 | WRENCH | 10,29 Lei | |
| 837 | 559626-99 | 1 | SERVICE TOOL | 526,5 Lei | |
| 837 | 559627-99 | 1 | SERVICE TOOL | 105,8 Lei |
