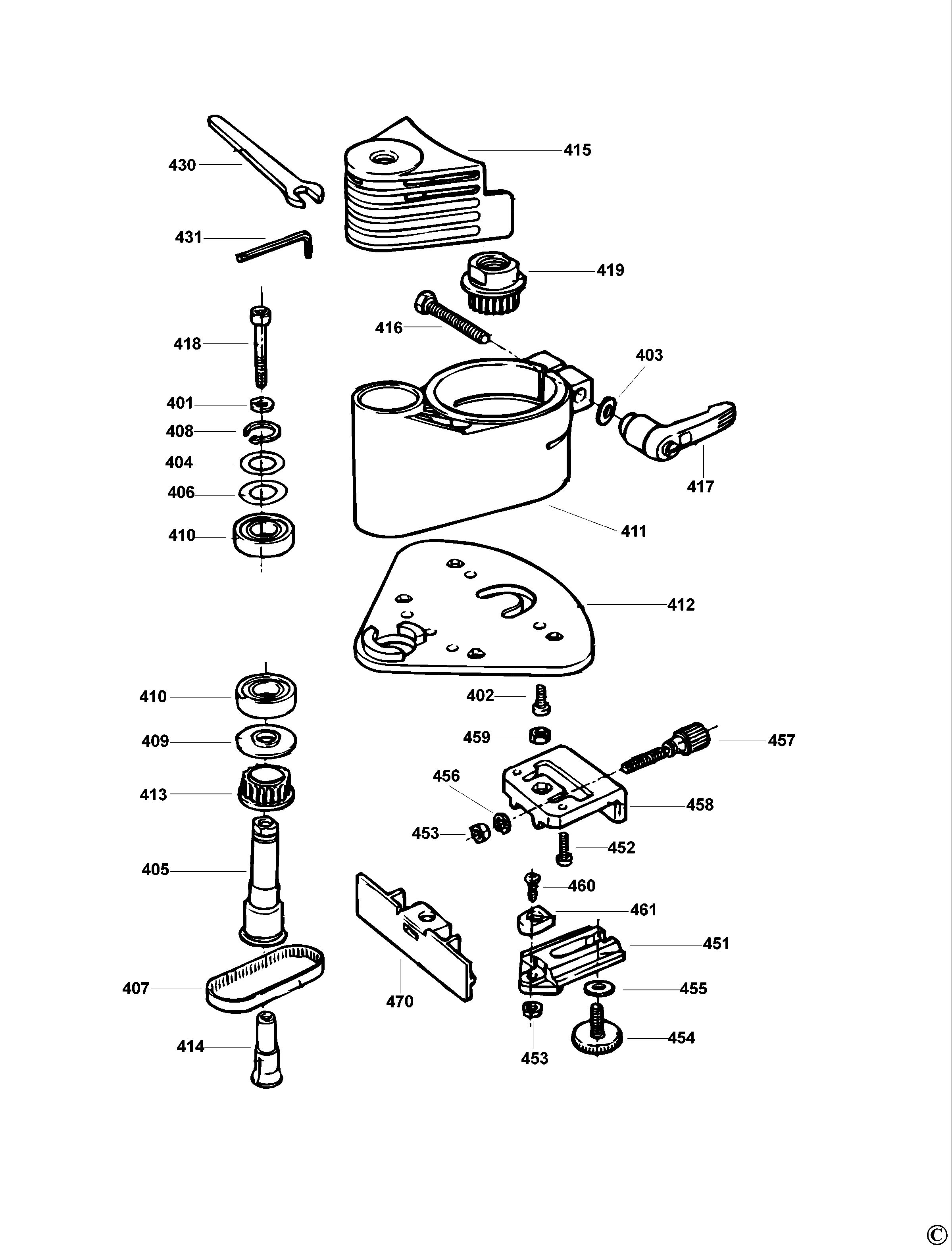

DEWALT OFFSET BASE - TRIMMER (Type 1A)
SKU Produs: DW6707 /Type: 1A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 401 | 860073-01 | 1 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 402 | 249424-02 | 3 | SCREW | 4,7 Lei | |
| 403 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 404 | 932309-00 | 1 | WASHER | 4,7 Lei | |
| 408 | 860079-03 | 1 | RING,SPRING SHAFT D12 UNI7435 | 4,7 Lei | |
| 430 | 868148-00 | 1 | KEY,8MM | 15,5 Lei | |
| 431 | 949882-01 | 1 | WRENCH | 4,7 Lei | |
| 453 | 860083-10 | 2 | NUT,HEX MEAN M.4 UNI5588 ZINC | 4,7 Lei | |
| 455 | 860073-01 | 1 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 459 | 930244-00 | 1 | NUT | 4,7 Lei | |
| 460 | 249424-02 | 1 | SCREW | 4,7 Lei |
