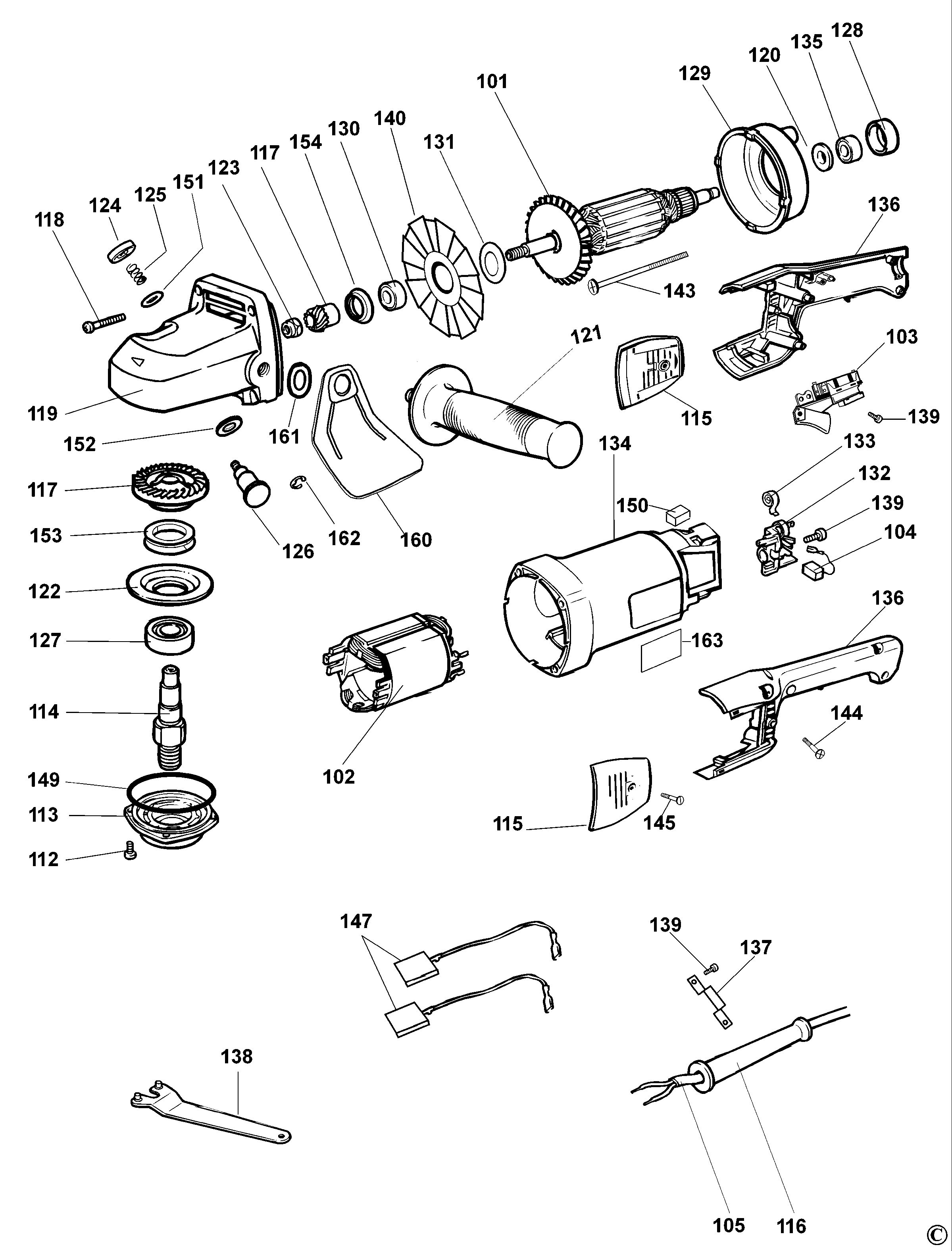

DEWALT SANDER/GRINDER (Type 2)
SKU Produs: DW630 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 104 | N088934 | 1 | BRUSH PAIR 230V | 37,73 Lei | |
| 113 | N072241 | 1 | GEARCASE COVER | 21,3 Lei | |
| 115 | 402849-00 | 2 | Brush Shield(Brush Cover) DW831 | 6,23 Lei | |
| 116 | 401088-01 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 118 | 562097-10 | 4 | SCREW | 4,57 Lei | |
| 120 | 398985-00 | 1 | Slinger DW831 | 4,57 Lei | |
| 121 | 573115-00 | 1 | SIDE HANDLE | 12,71 Lei | |
| 122 | 398813-00 | 1 | FLANGE | 7,5 Lei | |
| 123 | 945292-00 | 1 | Nut (Pinion fixing) | 4,57 Lei | |
| 124 | 944575-00 | 1 | LOCK BUTTON | 4,57 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,57 Lei | |
| 126 | 391018-00 | 1 | SPINDLE LOCK | 10,5 Lei | |
| 127 | 605040-22 | 1 | Bearing DW801 | 17,02 Lei | |
| 128 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 130 | 605040-60 | 1 | Ball Bearing. CW DW831 | 19,95 Lei | |
| 131 | 930753-00 | 1 | Washer DW831 | 4,57 Lei | |
| 135 | 605040-03 | 1 | Ball Bearing. CW DW810 | 13,85 Lei | |
| 136 | 402844-11 | 1 | Handle DW831 | 41,93 Lei | |
| 137 | 930103-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 138 | 401680-00 | 1 | WRENCH DW831 | 17,02 Lei | |
| 139 | 562097-00 | 5 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 140 | 403121-01 | 1 | FLANGE | 14,2 Lei | |
| 143 | 562097-12 | 2 | SCREW DW840 | 4,57 Lei | |
| 144 | 562097-03 | 4 | SCREW | 4,57 Lei | |
| 145 | 945280-00 | 2 | Screw Self Drive For Brush Cover ( | 4,57 Lei | |
| 149 | 403123-01 | 1 | O ring DW840 | 4,57 Lei | |
| 150 | 402847-00 | 4 | Damper DW831 | 4,57 Lei | |
| 151 | 403148-00 | 1 | Washer DW831 | 4,57 Lei | |
| 152 | 403149-00 | 1 | O ring DW840 | 4,7 Lei |
