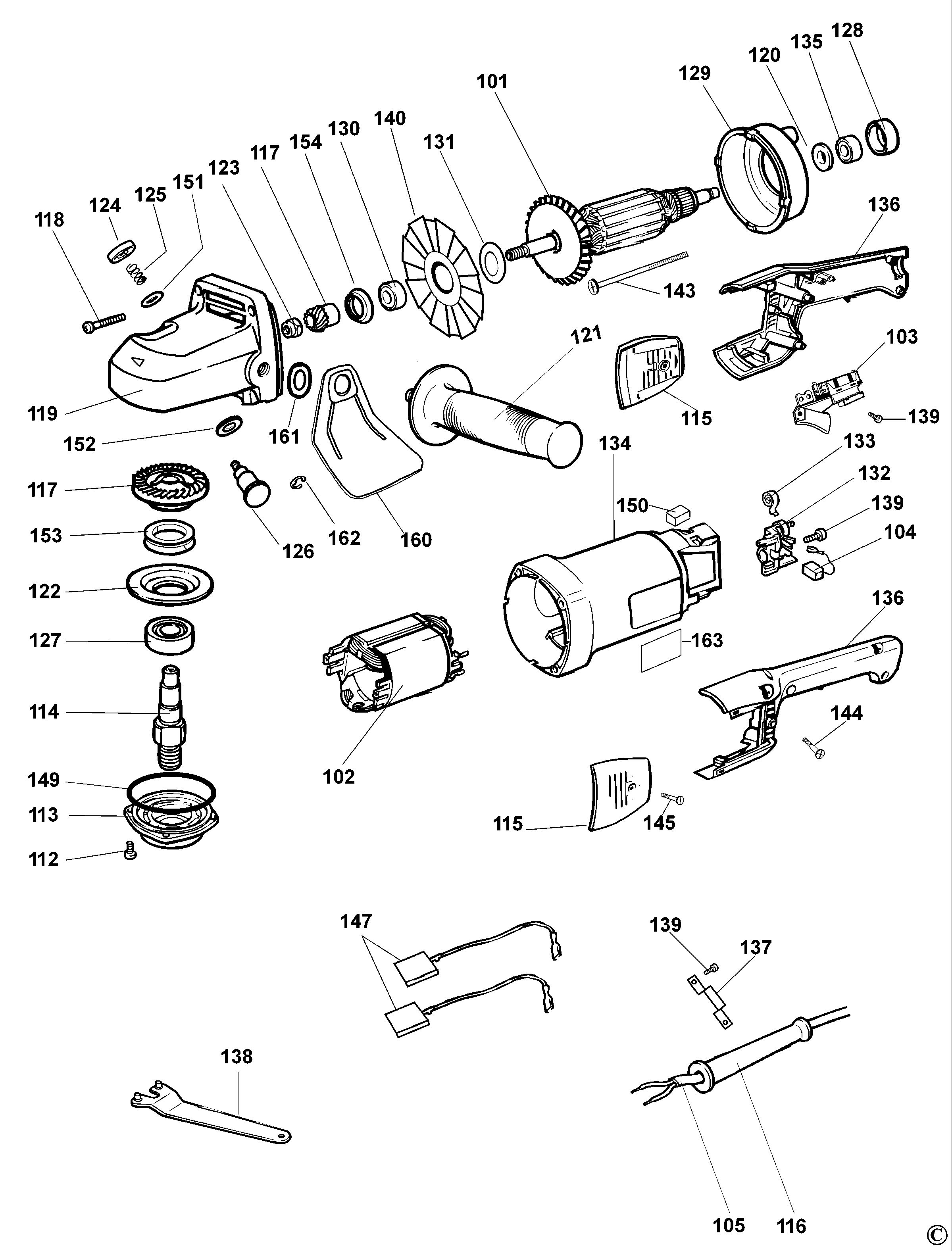

DEWALT SANDER/GRINDER (Type 1)
SKU Produs: DW630 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 104 | N088934 | 1 | BRUSH PAIR 230V | 38,6 Lei | |
| 113 | N072241 | 1 | GEARCASE COVER | 21,3 Lei | |
| 115 | 402849-00 | 1 | Brush Shield(Brush Cover) DW831 | 6,4 Lei | |
| 116 | 401088-01 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 118 | 562097-10 | 4 | SCREW | 4,7 Lei | |
| 121 | 573115-00 | 1 | SIDE HANDLE | 13 Lei | |
| 123 | 393568-00 | 1 | Nut DW831 | 5,3 Lei | |
| 124 | 944575-00 | 1 | LOCK BUTTON | 4,7 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,7 Lei | |
| 126 | 391018-00 | 1 | SPINDLE LOCK | 10,5 Lei | |
| 127 | 605040-22 | 1 | Bearing DW801 | 17,4 Lei | |
| 128 | 930275-00 | 1 | SLEEVE BEARING | 4,7 Lei | |
| 130 | 605040-60 | 1 | Ball Bearing. CW DW831 | 20,4 Lei | |
| 131 | 930753-00 | 1 | Washer DW831 | 4,7 Lei | |
| 135 | 605040-02 | 1 | BEARING | 13 Lei | |
| 136 | 402844-11 | 1 | Handle DW831 | 42,9 Lei | |
| 137 | 930103-00 | 1 | CORD CLAMP | 4,7 Lei | |
| 138 | 401680-00 | 1 | WRENCH DW831 | 17,4 Lei | |
| 139 | 562097-00 | 5 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
| 143 | 562097-12 | 2 | SCREW DW840 | 4,7 Lei | |
| 144 | 562097-03 | 4 | SCREW | 4,7 Lei | |
| 145 | 945280-00 | 2 | Screw Self Drive For Brush Cover ( | 4,7 Lei | |
| 149 | 403123-01 | 1 | O ring DW840 | 4,7 Lei | |
| 150 | 402847-00 | 4 | Damper DW831 | 4,7 Lei | |
| 151 | 403148-00 | 1 | Washer DW831 | 4,7 Lei | |
| 152 | 403149-00 | 1 | O ring DW840 | 4,7 Lei |
