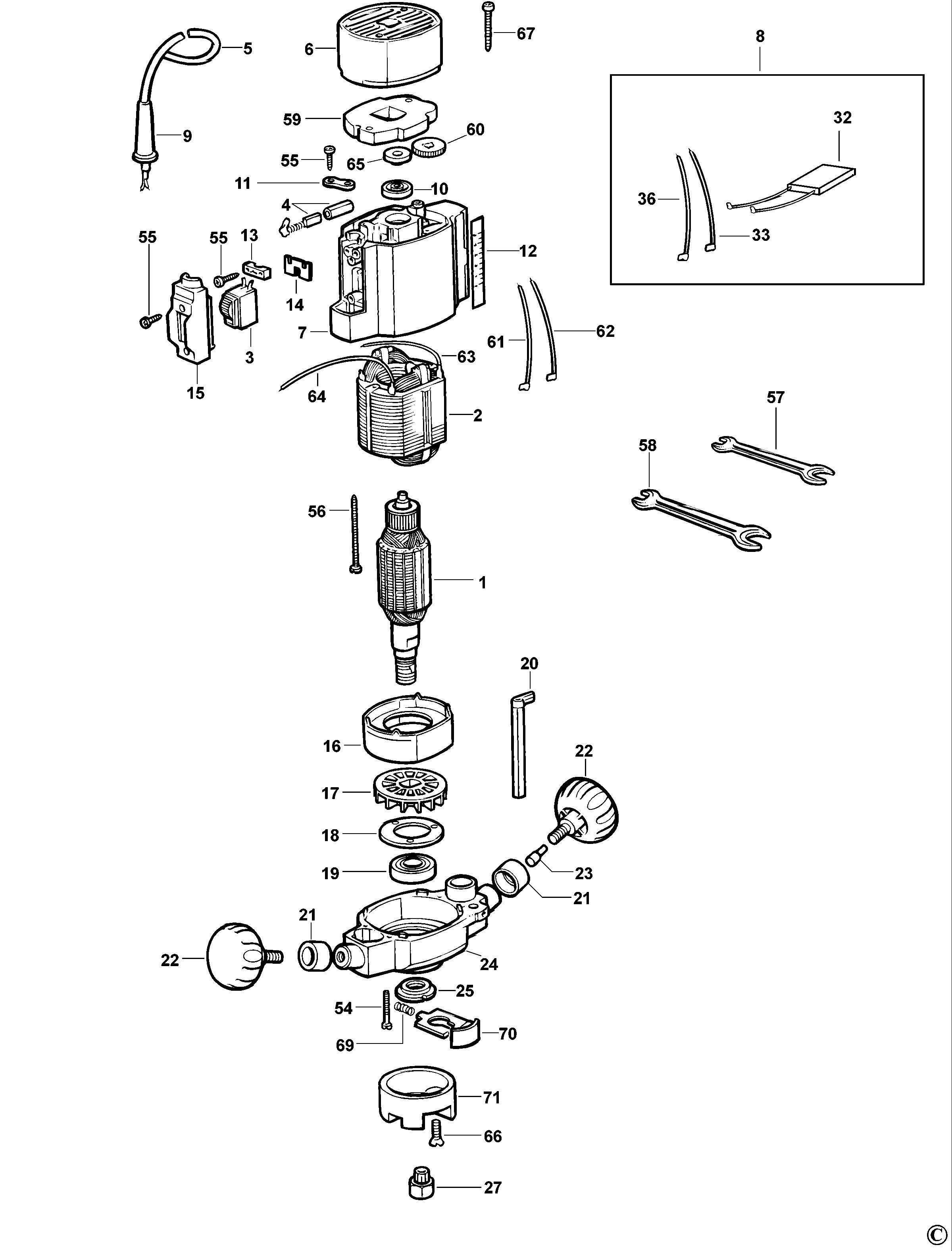

DEWALT ROUTER (Type 1)
SKU Produs: DW6141 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 5 | 868536-00 | 1 | CABLE H05RN | 59,2 Lei | |
| 6 | 247699-00 | 1 | ENDKAPPE | 22,4 Lei | |
| 9 | 868520-00 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 10 | 868768-14 | 1 | BEARING | 22,4 Lei | |
| 11 | 868069-00 | 2 | PLATE | 4,7 Lei | |
| 12 | 249278-01 | 1 | GRADUATE SCALE | 4,7 Lei | |
| 13 | 576118-00 | 1 | CABLE COVER | 4,7 Lei | |
| 14 | 868521-00 | 1 | GUIDE | 4,7 Lei | |
| 15 | 247700-01 | 1 | COVER | 13 Lei | |
| 17 | 943054-00 | 1 | DW615 FAN | 20,4 Lei | |
| 18 | 868047-00 | 1 | PLATE,BEARING | 17,4 Lei | |
| 19 | 868768-16 | 1 | BEARING | 26,1 Lei | |
| 20 | 868523-01 | 1 | DEPTH GAUGE DW615 | 26,1 Lei | |
| 22 | 869284-05 | 2 | S/A HANDLE DW615 | 26,1 Lei | |
| 23 | 869284-23 | 1 | S/A HANDLE DW615 | 53,4 Lei | |
| 24 | 248954-00 | 1 | HOUSING LOWER | 339,2 Lei | |
| 25 | 868052-00 | 1 | RING | 20,4 Lei | |
| 27 | 326286-00 | 1 | COLLECT AND NUT SA | 161,6 Lei | |
| 55 | 949896-12 | 8 | SCREW | 4,7 Lei | |
| 57 | 868148-00 | 1 | KEY,8MM | 15,5 Lei | |
| 58 | 941580-00 | 1 | FIXED WRENCH 13X17 | 26,1 Lei | |
| 59 | 868529-04 | 1 | SPEED CONTROL V.230 | 205,7 Lei | |
| 60 | 249067-01 | 1 | ROLLER DW625 | 14,2 Lei | |
| 65 | 868141-00 | 1 | POLE PIECE | 26,1 Lei | |
| 66 | 249413-03 | 4 | SCREW | 4,7 Lei | |
| 67 | 949896-11 | 2 | SCREW | 4,7 Lei | |
| 69 | N406641 | 1 | SPRING D.6-0,75 | 4,7 Lei | |
| 70 | 943114-00 | 1 | S/A STOP DW615 | 31,6 Lei | |
| 71 | 943057-00 | 1 | COVER | 26,1 Lei |
