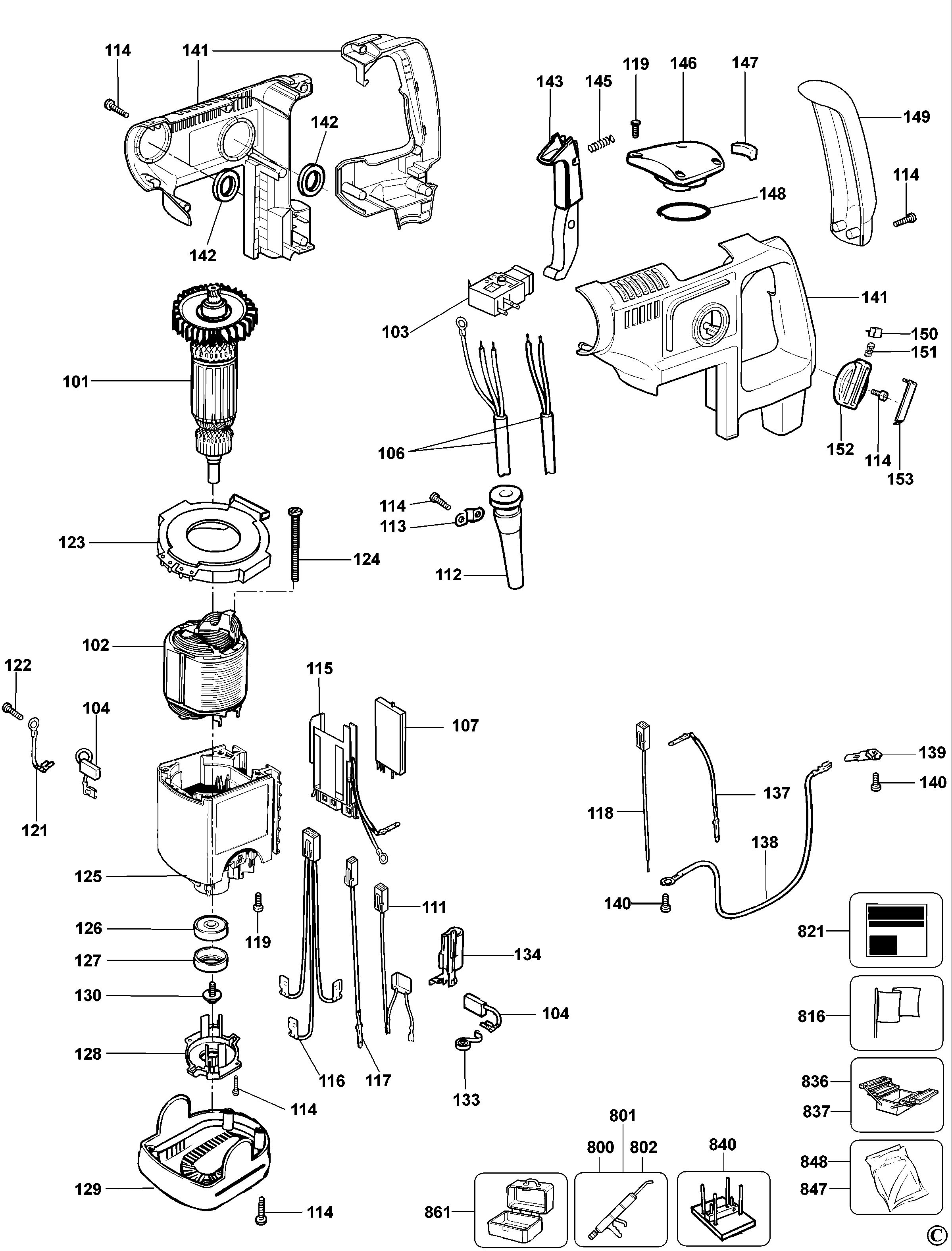

DEWALT ROTARY HAMMER (Type 1)
SKU Produs: DW568K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 112 | 323091-01 | 1 | CORD PROTECTOR | 7,5 Lei | |
| 113 | 821070 | 1 | CLAMP, CORD | 4,7 Lei | |
| 114 | 330065-08 | 20 | SCREW M4X18 | 4,7 Lei | |
| 119 | 324007-11 | 13 | SCREW, PAN HEAD M5X18 | 5,3 Lei | |
| 124 | 330065-21 | 2 | SCREW, PLASTIC THREAD FORM M4*50 | 4,7 Lei | |
| 126 | N542566 | 1 | BEARING.BALL 102608 (SERVICE) | 53,4 Lei | |
| 130 | 324119-02 | 1 | SCREW, M5 X 12 | 6,4 Lei | |
| 133 | 326667-00 | 2 | SPRING, SPIRAL | 6,4 Lei | |
| 134 | 326933-01 | 2 | SA CHOKE HOLDER | 14,8 Lei | |
| 148 | 323711-15 | 1 | O RING, 43 X 2.5 | 4,7 Lei | |
| 184 | 330003-39 | 1 | BEARING, BALL | 17,4 Lei | |
| 185 | 487074-49 | 1 | SA CRANK AND BEARING PACKED, ( SERVICE | 282,1 Lei | |
| 192 | 327141-03 | 1 | RING, SEALING 24 7 14 | 59,2 Lei | |
| 193 | 327575-00 | 1 | SLEEVE | 5,3 Lei | |
| 200 | 323489-00 | 1 | CAP | 7,5 Lei | |
| 204 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,5 Lei | |
| 205 | 871690 | 1 | SPRING BEVEL | 4,7 Lei | |
| 207 | 487118-00 | 1 | SPRING, CONICAL | 6,4 Lei | |
| 229 | 487037-00 | 1 | SEAL, BEATPIECE | 42,9 Lei | |
| 230 | 323711-10 | 1 | O RING 19 X 3.5 | 8,8 Lei | |
| 231 | 325905-01 | 1 | RING, PISTON D=21.6 | 7,5 Lei | |
| 232 | 327520-00 | 1 | PISTON | 42,9 Lei | |
| 251 | 327493-00 | 1 | COLLAR, BAND | 19,5 Lei | |
| 802 | 328771-07 | 1 | GREASE, THERMOPLEX 0.05KG TUBE | 31,6 Lei |
