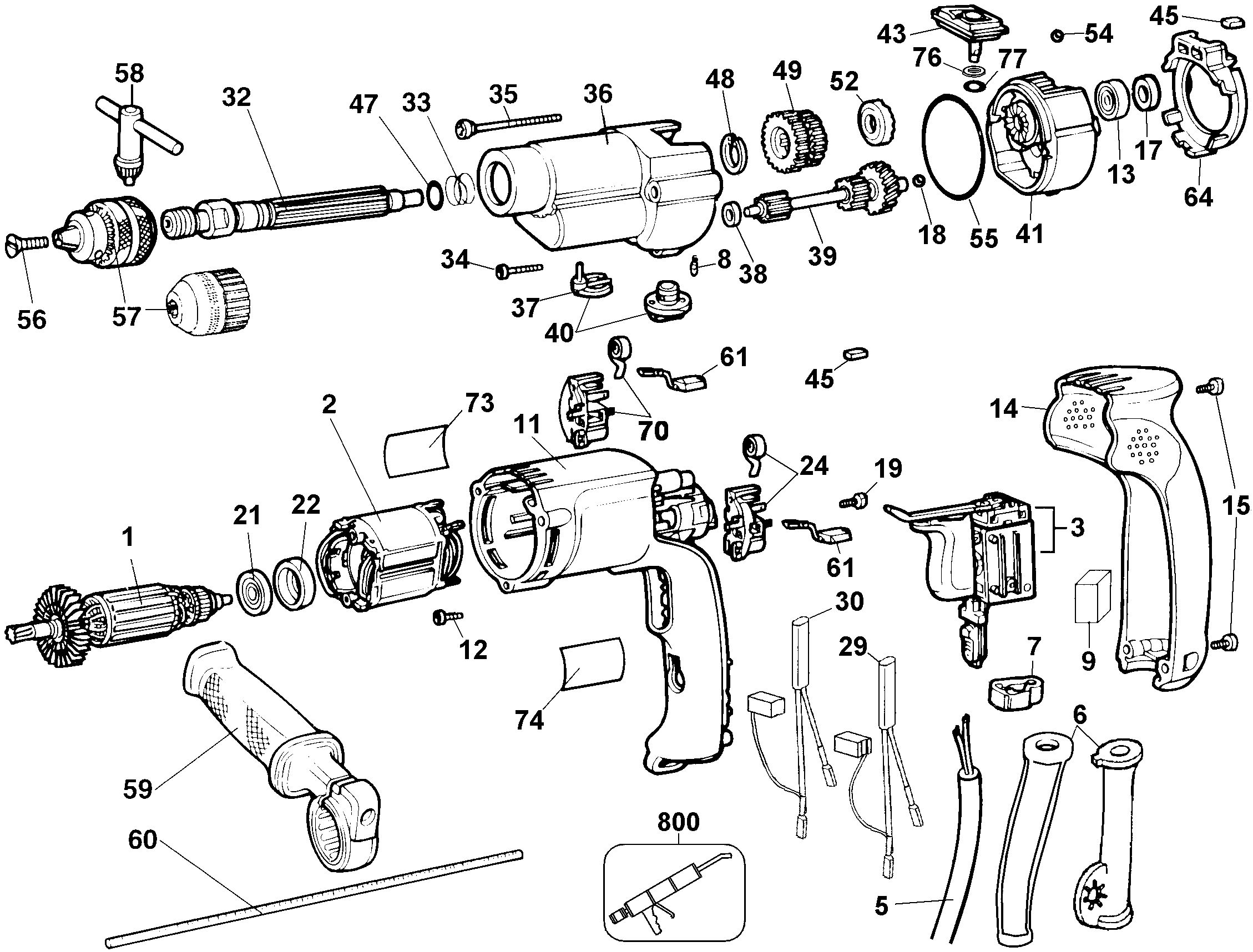

DEWALT NORTHSTAR DRILL Type 2
SKU Produs: DW505KS
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 6 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 8 | 326467-00 | 2 | DETENT | 4,7 Lei | |
| 9 | 930026-01 | 1 | BUMPER SPONGE | 4,7 Lei | |
| 11 | NA065846 | 1 | FIELD CASE | 56,4 Lei | |
| 12 | 390198-00 | 2 | SCREW | 4,7 Lei | |
| 13 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 15 | 330065-08 | 3 | SCREW M4X18 | 4,7 Lei | |
| 18 | 936840-00 | 1 | BALL STEEL | 4,5 Lei | |
| 19 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
| 21 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 34 | 330065-13 | 1 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,7 Lei | |
| 35 | 330065-10 | 2 | SCREW, PLASTIC 4X55 | 4,7 Lei | |
| 37 | 628891-00 | 1 | SELECTOR FORK | 72 Lei | |
| 40 | 628891-00 | 1 | SELECTOR FORK | 72 Lei | |
| 45 | 949638-02 | 2 | SMALL RUBBER | 4,7 Lei | |
| 47 | 930028-00 | 1 | O-RING | 4,7 Lei | |
| 48 | 144803-00 | 1 | SEAL RING | 4,7 Lei | |
| 49 | 397239-01 | 1 | GEAR, DOUBLE | 34,8 Lei | |
| 52 | 945706-00 | 1 | MOVING CLUTCH | 10,5 Lei | |
| 54 | 000903-00 | 1 | BALL | 38,6 Lei | |
| 55 | 401847-00 | 1 | RING, OR | 4,7 Lei | |
| 58 | 330034-08 | 1 | CHUCK KEY | 5,3 Lei | |
| 60 | 940357-00 | 1 | DEPTH STOP | 6,4 Lei | |
| 64 | 176811-00 | 1 | FAN BAFFLE | 7,5 Lei | |
| 72 | 061145-00 | 1 | RING, O | 4,7 Lei | |
| 74 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,7 Lei | |
| 76 | 176659-00 | 1 | WASHER DW505 TYPE 2 | 4,7 Lei | |
| 77 | 050050-00 | 1 | O RING DW831 | 4,7 Lei |
