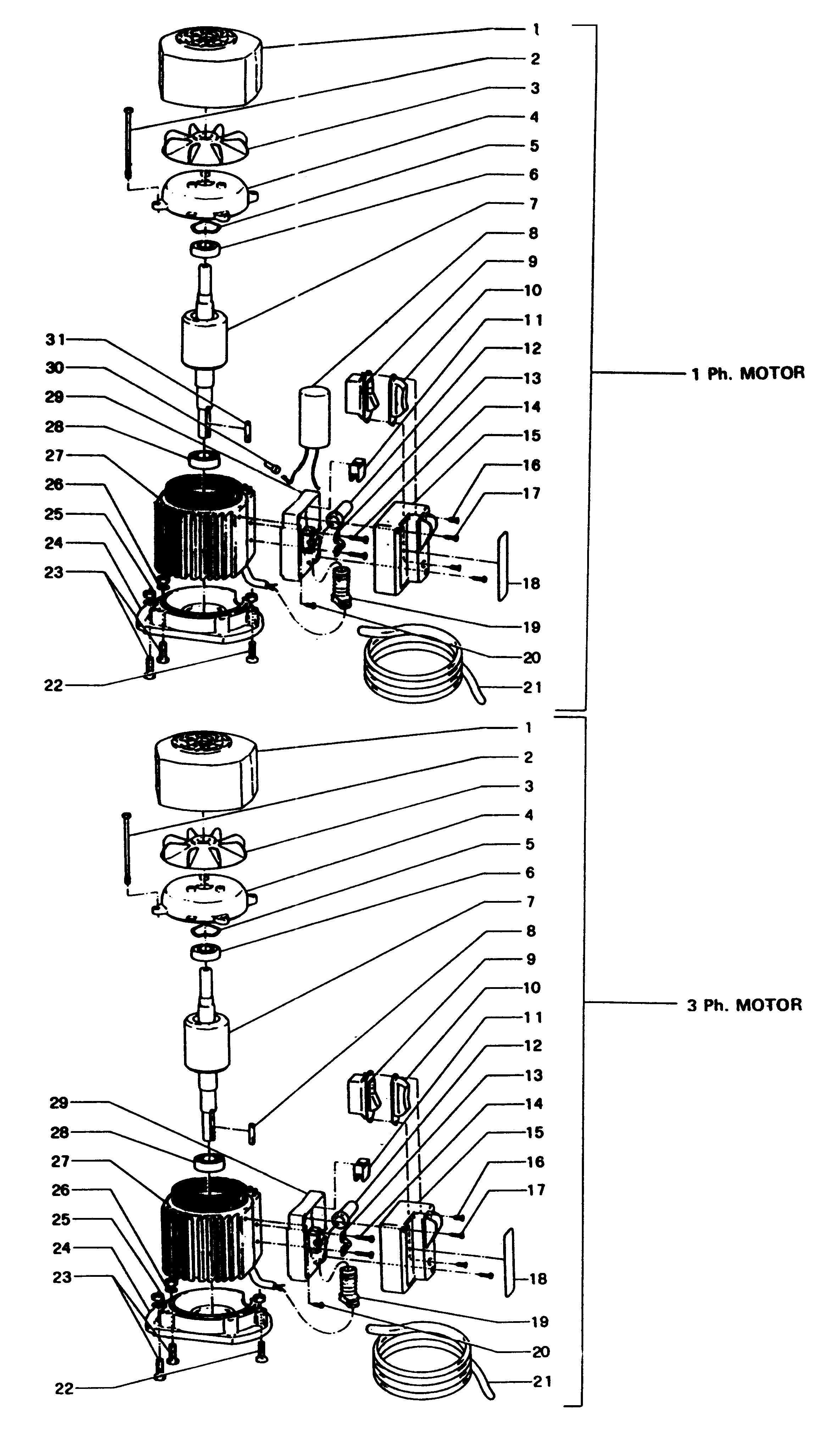

DEWALT CHIP COLLECTOR (Type 1)
SKU Produs: DW503-----B /Type: 1
Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
---|---|---|---|---|---|
1 | 860445-00 | 1 | COVER,FAN MOTOR DW 250 | 26,1 Lei | |
2 | 863119-00 | 2 | TIE ROD......................D | 26,1 Lei | |
3 | 860444-00 | 1 | FAN | 20,4 Lei | |
4 | 860443-00 | 1 | BELL,REAR END MOTOR DW 250 | 59,2 Lei | |
5 | 860080-02 | 1 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
6 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
14 | 330045-05 | 2 | SCREW.TEMP | 4,7 Lei | |
20 | 949894-06 | 1 | FILLISTER HEAD SCREW | 4,7 Lei | |
23 | 860085-19 | 2 | SCREW,HEX M.8X25 UNI 5739 | 4,7 Lei | |
25 | 860083-04 | 3 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
26 | 860074-03 | 3 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei |
