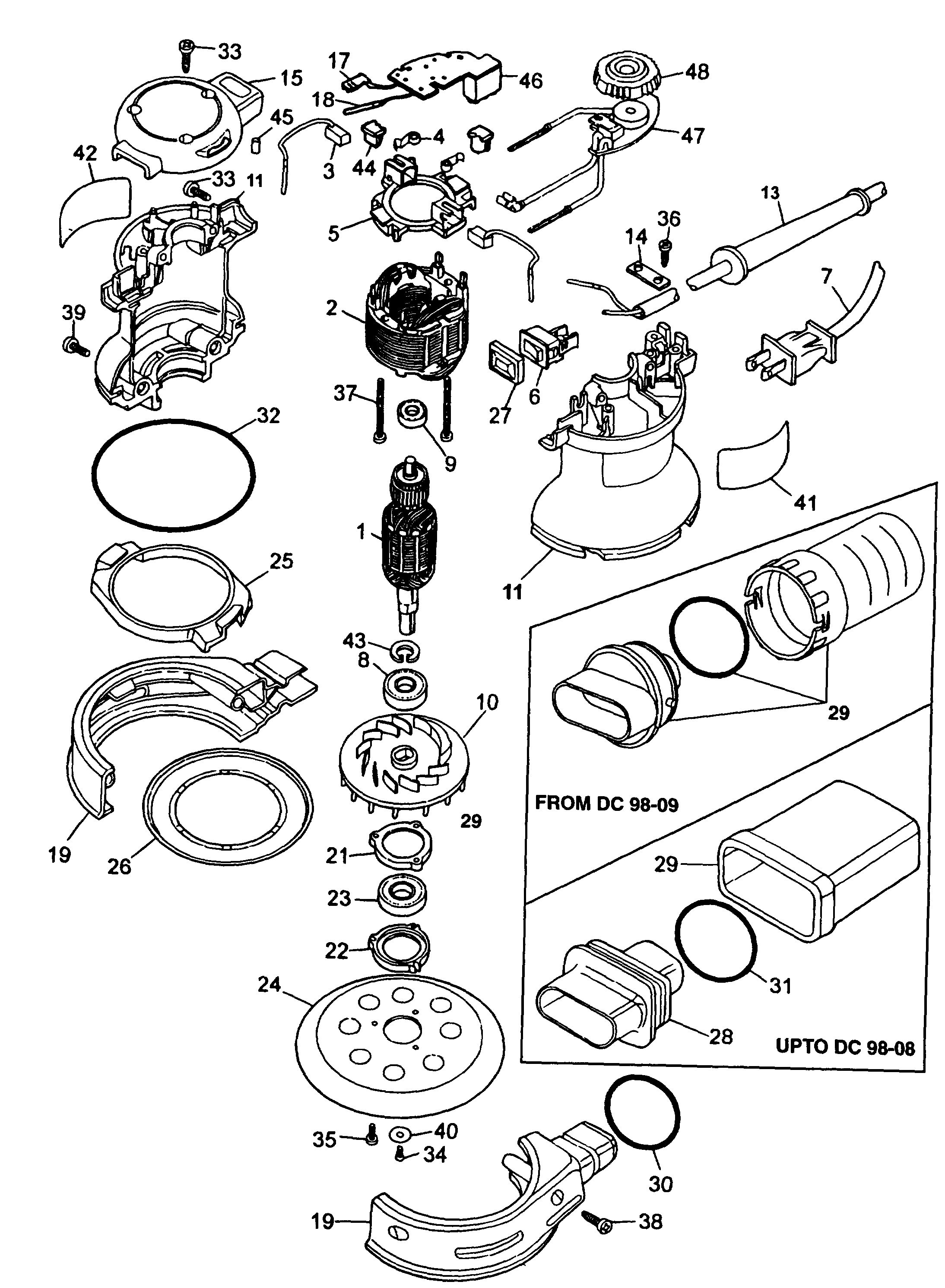

DEWALT SANDER (Type 1-2)
SKU Produs: DW423 /Type: 1-2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 445861-13 | 2 | BRUSH 230V SA | 20,4 Lei | |
| 4 | 445860-00 | 2 | SPRING, BRUSH | 4,7 Lei | |
| 5 | 449899-05 | 1 | RING | 31,6 Lei | |
| 6 | 656494-00 | 1 | SWITCH | 14,2 Lei | |
| 8 | 330003-17 | 1 | BEARING BALL (CE) | 20,4 Lei | |
| 9 | 605040-05 | 1 | BEARING, BALL CW/MFG | 7,5 Lei | |
| 13 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 17 | 445964-00 | 1 | TERMINAL | 4,5 Lei | |
| 18 | 825209-00 | 1 | CONNECTOR | 4,5 Lei | |
| 21 | 286181-00 | 1 | REPAIR KIT | 17,4 Lei | |
| 22 | 603637-00 | 1 | RETAINER | 20,4 Lei | |
| 23 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
| 24 | 151281-08 | 1 | PLATTEN, MED 125MM use DW4388 | 59,2 Lei | |
| 27 | 144983-07 | 1 | COVER, SWITCH | 4,7 Lei | |
| 30 | 56194-00 | 1 | RING, O | 4,7 Lei | |
| 33 | 330019-11 | 4 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,7 Lei | |
| 34 | 098012-11 | 1 | SCREW, MACHINE | 4,7 Lei | |
| 35 | 286181-00 | 1 | REPAIR KIT | 17,4 Lei | |
| 36 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,7 Lei | |
| 37 | 330019-08 | 2 | SCREW, PLASTIC THREAD FORM M3.5 * 45 T1 | 4,7 Lei | |
| 38 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,7 Lei | |
| 39 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 40 | 151652-00 | 1 | WASHER, CONE | 4,7 Lei | |
| 43 | 151669-00 | 1 | RING, RET EXT. | 4,5 Lei |
