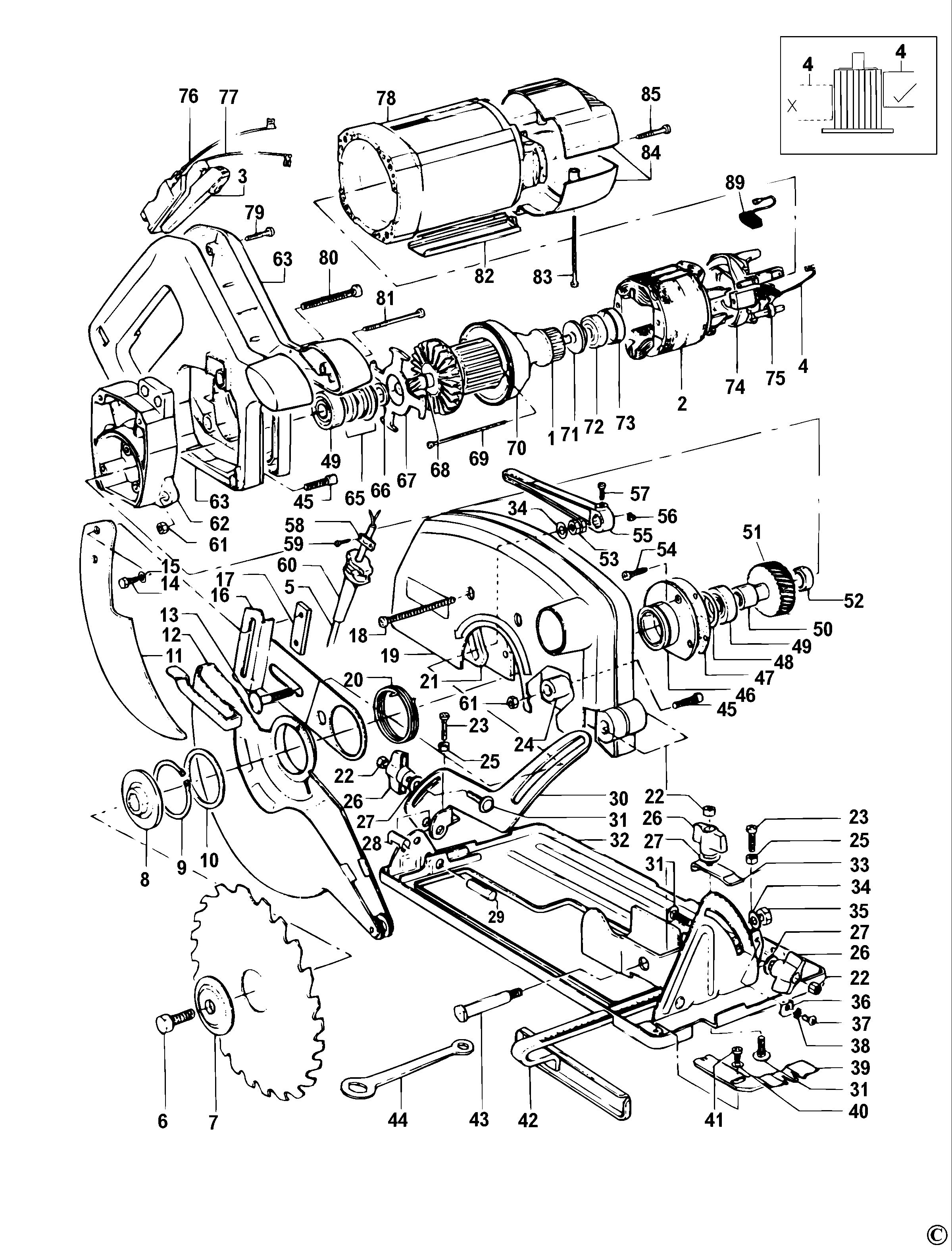

DEWALT CIRCULAR SAW (Type 1)
SKU Produs: DW383 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 868388-02 | 1 | ARMATURE 383 230V | 889,22 Lei | |
| 3 | 949411-00 | 1 | SWITCH | 219,9 Lei | |
| 4 | 933371-00 | 1 | BRUSH 230V | 34,05 Lei | |
| 11 | 625428-00 | 1 | KNIFE D23700 | 57,81 Lei | |
| 12 | 933411-00 | 1 | GUARD | 310,6 Lei | |
| 13 | 931462-00 | 1 | SCREW | 8,4 Lei | |
| 14 | 860085-15 | 2 | HEXAGONAL HEAD SCREW | 4,57 Lei | |
| 15 | 933055-00 | 2 | TOOTHED WASHER DW320 | 4,57 Lei | |
| 17 | 931445-00 | 1 | SUPPORT | 19,95 Lei | |
| 22 | 860083-03 | 3 | NUT,HEX THICK M.6 UNI 5587 | 4,57 Lei | |
| 23 | 869076-00 | 2 | SCREW | 4,57 Lei | |
| 25 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 26 | 931406-00 | 3 | NUT WING | 19,95 Lei | |
| 27 | 931407-00 | 3 | WASHER | 12,71 Lei | |
| 28 | 931419-00 | 1 | PIN | 4,57 Lei | |
| 29 | 931420-00 | 1 | PIN | 15,12 Lei | |
| 30 | 933415-00 | 1 | GUIDE | 331,47 Lei | |
| 31 | 931405-00 | 3 | SCREW | 4,57 Lei | |
| 33 | 931484-00 | 1 | LOCK | 19,95 Lei | |
| 34 | 933168-00 | 2 | WASHER | 5,21 Lei | |
| 35 | 931449-00 | 1 | NUT | 4,57 Lei | |
| 36 | 933410-00 | 1 | INDICATOR | 19,95 Lei | |
| 37 | 949894-06 | 1 | FILLISTER HEAD SCREW | 4,57 Lei | |
| 38 | 933652-00 | 1 | WASHER,D4 | 4,57 Lei | |
| 39 | 931408-00 | 1 | POINTER | 34,05 Lei | |
| 40 | 930248-00 | 1 | WASHER | 4,57 Lei | |
| 42 | 931464-00 | 1 | FENCE | 30,87 Lei | |
| 43 | 931447-00 | 1 | PIN | 21,85 Lei | |
| 45 | 860093-05 | 2 | SCREW,SOCKET M.6X20 UNI 5931 | 4,57 Lei | |
| 49 | 868768-07 | 2 | BEARING 6202 | 34,05 Lei | |
| 51 | 869219-03 | 1 | SPINDLE AND GEAR DW383 | 800,3 Lei | |
| 52 | N110358 | 1 | BEARING | 17,02 Lei | |
| 53 | 931463-00 | 1 | NUT | 15,12 Lei | |
| 55 | 931460-00 | 1 | LEVER | 7,37 Lei | |
| 56 | 860083-10 | 1 | NUT,HEX MEAN M.4 UNI5588 ZINC | 4,57 Lei | |
| 57 | 930224-00 | 1 | SCREW | 4,57 Lei | |
| 58 | 931477-00 | 1 | CORD CLAMP | 5,21 Lei | |
| 59 | 931469-02 | 2 | SCREW | 4,57 Lei | |
| 61 | 860092-00 | 3 | NUT,ELAST.STOP M.6 UNI 7474 | 4,57 Lei | |
| 65 | 931067-00 | 1 | SEAL SA | 14,2 Lei | |
| 66 | 931062 | 1 | SPACER | 14,8 Lei | |
| 67 | 931066-00 | 1 | FLANGE | 26,1 Lei | |
| 68 | 930028-00 | 1 | O-RING | 4,57 Lei | |
| 69 | N412453 | 2 | SCREW | 8,8 Lei | |
| 71 | N174055 | 1 | SPACER (A3EG6) | 4,7 Lei | |
| 71 | N174106 | 1 | KIT FLAPS DW711 T.7 | 94,2 Lei | |
| 72 | 868768-00 | 1 | BEARING 6000-2RSLTN9/C3LHT23 | 17,4 Lei | |
| 73 | 938332-00 | 1 | SLEEVE | 4,57 Lei | |
| 81 | 930082-01 | 1 | SCREW | 6,23 Lei | |
| 84 | 932711-01 | 1 | END CAP SA | 51 Lei | |
| 85 | 931297-00 | 2 | SCREW | 7,37 Lei | |
| 89 | 940160-01 | 1 | BRUSH 115-230V SA | 37,73 Lei |
