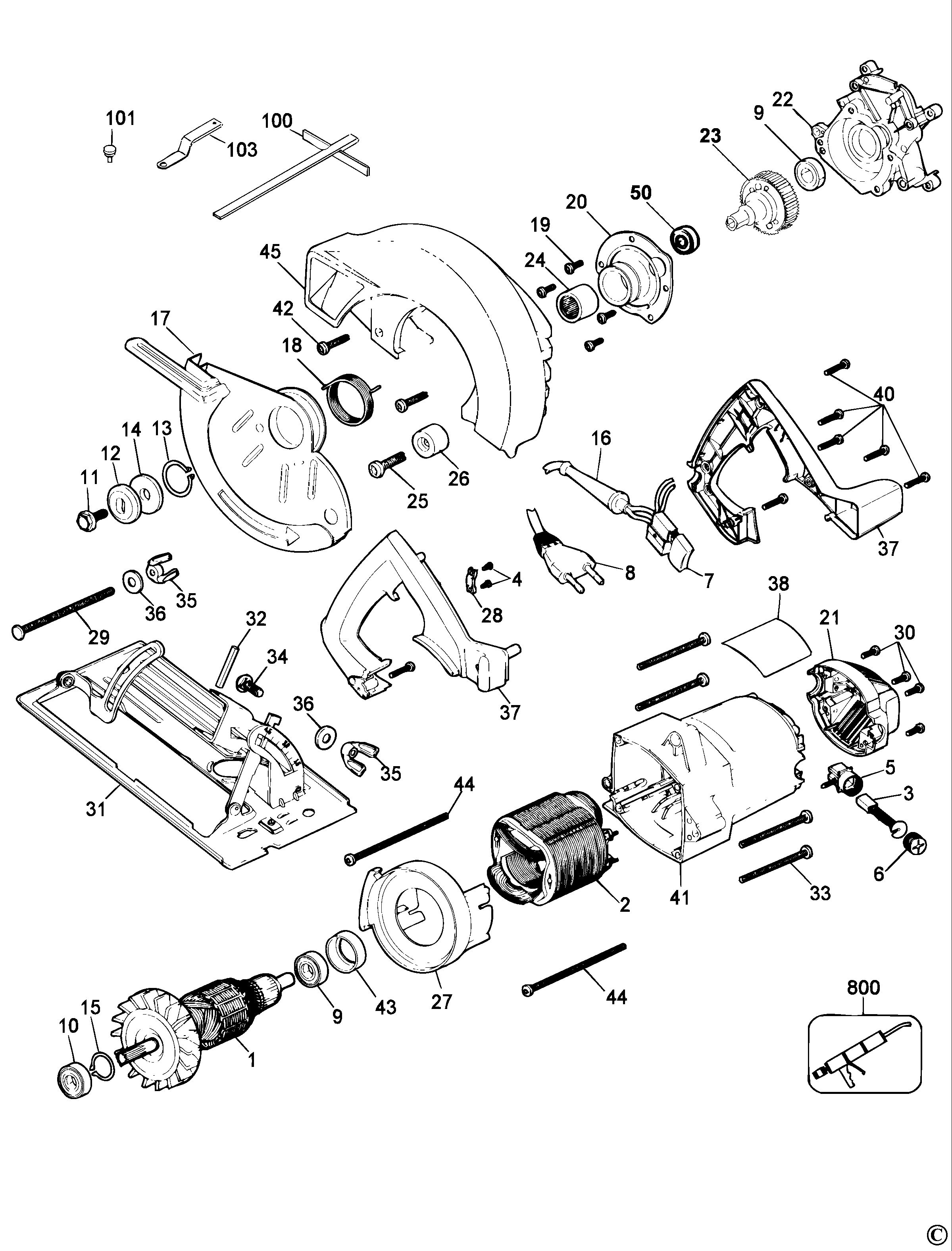

DEWALT CIRCULAR SAW (Type 3)
SKU Produs: DW352 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 450374-12 | 2 | BRUSH AND SPRING - pcs | 31,6 Lei | |
| 4 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
| 5 | 448083-01 | 2 | BRUSH HOLDER | 26,1 Lei | |
| 9 | 605040-63 | 2 | BEARING, BALL CW | 14,2 Lei | |
| 10 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
| 15 | 696060-00 | 1 | RETAINER | 4,7 Lei | |
| 16 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 19 | 158472-00 | 4 | SCREW | 4,7 Lei | |
| 30 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 40 | 330019-14 | 6 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,7 Lei | |
| 43 | 445217-02 | 1 | SLEEVE | 5,3 Lei | |
| 50 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,4 Lei | |
| 103 | N035355 | 1 | SPANNER | 13 Lei |
