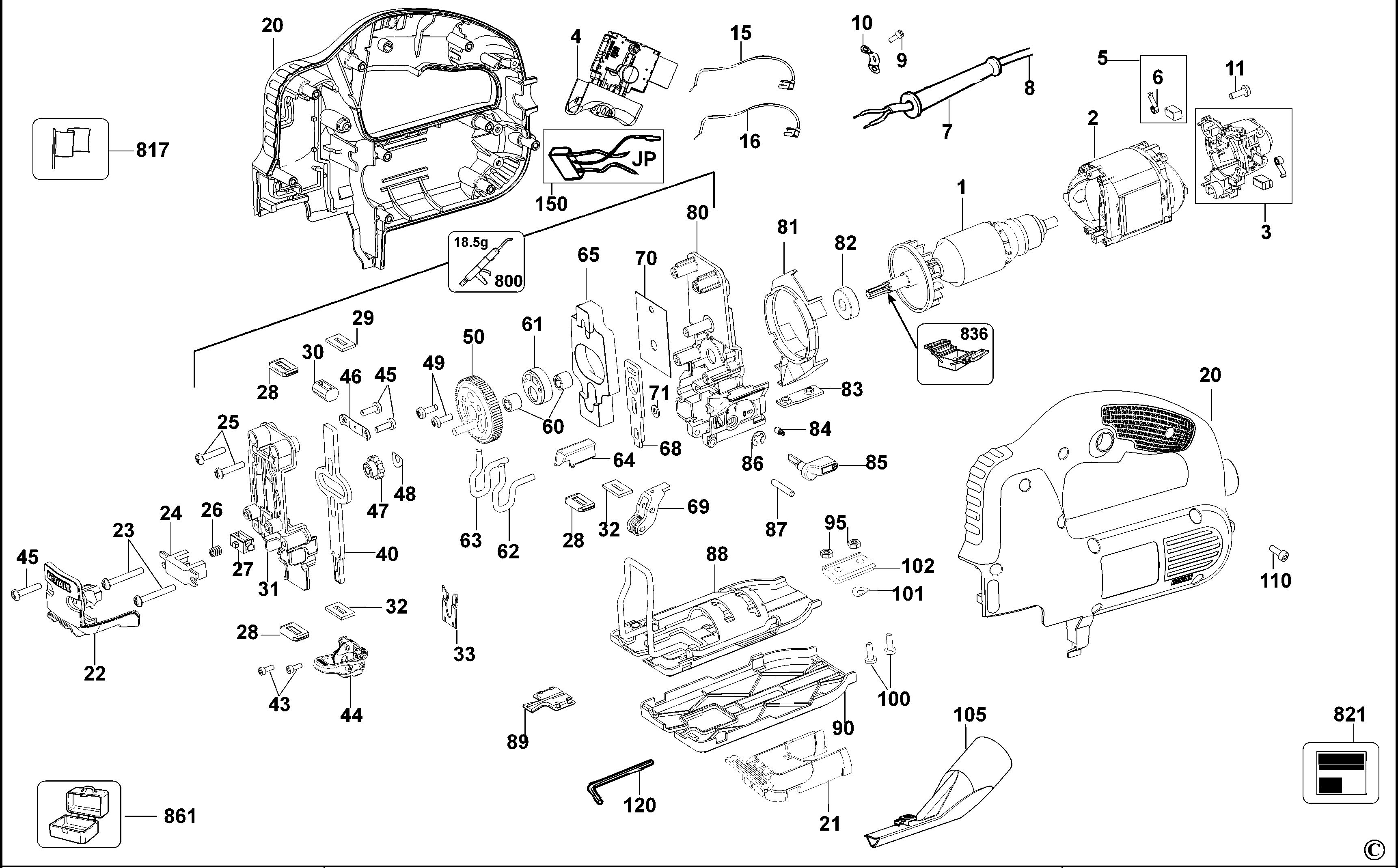

DEWALT JIGSAW (Type 2)
SKU Produs: DW341K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 494036-00 | 1 | SA ARMATURE 230V (SERVICE) | 169,36 Lei | |
| 2 | 494038-00 | 1 | SA FIELD 230V (SERVICE) | 21,85 Lei | |
| 3 | 494043-00 | 1 | BRUSH PAIR 230V and BRUSH BOX | 72 Lei | |
| 4 | N409592 | 1 | SA JIGSAW KIT (SERVICE) | 165,3 Lei | |
| 5 | 494040-00 | 1 | BRUSH PAIR 230V SA (SUBA) | 25,54 Lei | |
| 6 | 445860-00 | 2 | SPRING, BRUSH | 4,57 Lei | |
| 7 | NA073534 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 8 | 330120-86 | 1 | CORD, PWR SPLY EURO | 70,39 Lei | |
| 9 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 10 | 821070 | 1 | CLAMP, CORD | 4,57 Lei | |
| 11 | 330065-27 | 2 | SCREW, PLSTC THD FORM, M3.5 X 30 | 4,57 Lei | |
| 21 | 1005041-00 | 1 | SCREEN | 13,85 Lei | |
| 22 | 494042-00 | 1 | SA FACIA CASTING (SERVICE) | 52,22 Lei | |
| 23 | 330045-09 | 1 | SCREW, METAL THREAD FORM M4 X 30 T20 | 4,57 Lei | |
| 24 | 490331-00 | 1 | BEARING CARRIER | 10,29 Lei | |
| 25 | 330045-07 | 2 | SCREW | 4,57 Lei | |
| 26 | 490457-00 | 1 | COMPRESSION SPRING | 4,57 Lei | |
| 27 | 490330-00 | 1 | BOTTOM BEARING | 7,37 Lei | |
| 28 | 582262-00 | 3 | HOLDER | 4,57 Lei | |
| 29 | 487900-00 | 1 | FELT SEAL | 4,57 Lei | |
| 30 | 490329-00 | 1 | BEARING | 7,37 Lei | |
| 31 | 494044-00 | 1 | SA GEAR CASE FRONT (SERVICE) | 52,22 Lei | |
| 32 | 582263-00 | 2 | FELT SEAL | 4,57 Lei | |
| 33 | 494271-00 | 1 | SCUFF PLATE | 5,21 Lei | |
| 40 | 494045-00 | 1 | SA RECIP SHAFT (SERVICE) | 52,22 Lei | |
| 43 | 370167 | 2 | SCREW | 4,57 Lei | |
| 44 | N542463 | 1 | SERVICE SA BLADE CLAMP (SERVICE) | 80,04 Lei | |
| 45 | 324006-00 | 4 | SCREW, TAPTITE M4 X 12 | 4,57 Lei | |
| 46 | 582261-00 | 1 | K-B217L-04 | 4,57 Lei | |
| 47 | 582257-00 | 1 | SA DRIVE BEARING | 25,54 Lei | |
| 48 | 479820-00 | 1 | WAVY WASHER | 6,23 Lei | |
| 49 | 324007-07 | 2 | SCREW, PANHEAD M4x12 | 4,57 Lei | |
| 50 | N026207 | 1 | SA GEAR AND PIN (SERVICE) | 120,82 Lei | |
| 60 | N332380 | 2 | BEARING NEEDLE NF | 7,37 Lei | |
| 61 | 494053-00 | 1 | SA ECCENTRIC (SERVICE) | 30,87 Lei | |
| 62 | N595711 | 1 | GUARD LH | 6,23 Lei | |
| 63 | N595678 | 1 | GUARD RH | 5,21 Lei | |
| 64 | 479203-00 | 1 | NOZZLE | 7,37 Lei | |
| 65 | 494055-00 | 1 | SA COUNTERBALANCE, SINTERED (SERVICE) | 41,93 Lei | |
| 68 | 494056-00 | 1 | SA TIMING FORK (SERVICE) | 31,6 Lei | |
| 69 | 493744-00 | 1 | SA BELL CRANK (SERVICE) | 41,93 Lei | |
| 70 | 490349-00 | 1 | WEAR PLATE | 4,57 Lei | |
| 71 | 330016-01 | 1 | WASHER | 4,57 Lei | |
| 80 | 494057-00 | 1 | SA REAR CASTING (SERVICE) | 169,36 Lei | |
| 81 | 490627-00 | 1 | BAFFLE TOP HANDLE | 7,37 Lei | |
| 82 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 84 | 326467-00 | 1 | DETENT | 4,57 Lei | |
| 85 | 479901-00 | 1 | LEVER PENDELUM | 15,12 Lei | |
| 86 | 571181-00 | 1 | E CLIP | 4,57 Lei | |
| 87 | 330041-55 | 1 | ROLLER PIN | 4,57 Lei | |
| 88 | 496995-00 | 1 | SA SHOE 2.3MM | 57,81 Lei | |
| 89 | 479966-00 | 1 | ANTI-SPLINTER | 4,57 Lei | |
| 90 | 1005085-00 | 1 | SHOE COVER | 6,23 Lei | |
| 95 | 322319 | 2 | NUT, HEX M5 DIN 934 | 4,57 Lei | |
| 100 | 571056-02 | 1 | SCREW M5 X 16.5 TORX/SLOTTED | 4,57 Lei | |
| 101 | 098197-06 | 2 | WASHER | 4,57 Lei | |
| 102 | 479532-00 | 1 | SHOE CLAMP PIECE | 17,02 Lei | |
| 105 | 1006440-00 | 1 | VAC ADAPTER L/H | 13,85 Lei | |
| 105 | 1006441-00 | 1 | VAC ADAPTER R/H | 13,85 Lei | |
| 110 | 330019-66 | 9 | SCREW | 4,57 Lei | |
| 120 | 571057-01 | 1 | TORX WRENCH | 6,23 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 817 | 479207-00 | 1 | DEWALT LABEL | 4,57 Lei | |
| 836 | 559658-99 | 1 | SERVICE TOOL | 84,11 Lei | |
| 861 | 329040-11 | 1 | KITBOX, COMPACT JIGSAW (SUBC) | 169,36 Lei |
