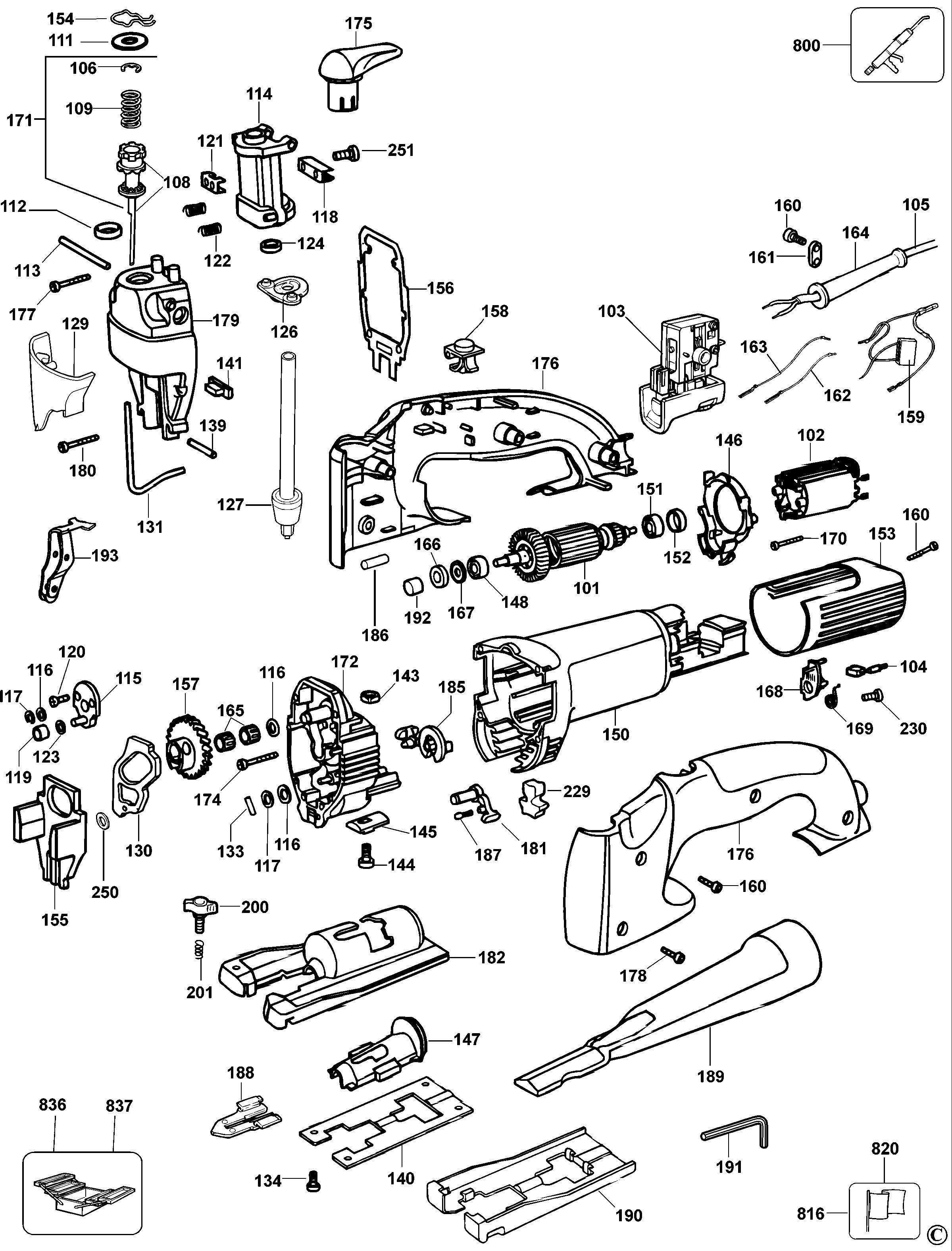

DEWALT JIGSAW (Type 3)
SKU Produs: DW321 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 104 | 939539-01 | 2 | BRUSH CUT OFF | 15,12 Lei | |
| 105 | 330120-86 | 1 | CORD, PWR SPLY EURO | 70,39 Lei | |
| 106 | 860322-01 | 1 | RING,RADIAL SPRING D8 UNI7434 | 4,57 Lei | |
| 108 | 402960-00 | 1 | CLUTCH SA | 165,3 Lei | |
| 115 | 402161-00SV | 1 | ECCENTRIC SA | 78,1 Lei | |
| 116 | 932302-00 | 1 | WASHER | 4,57 Lei | |
| 120 | N056875 | 4 | SCREW M4X10 | 4,57 Lei | |
| 121 | 399146-00 | 1 | CLAMP | 7,2 Lei | |
| 134 | N056875 | 4 | SCREW M4X10 | 4,57 Lei | |
| 139 | 330041-29 | 1 | PIN, ROLLER | 4,57 Lei | |
| 151 | 330003-56 | 1 | BEARING, BALL | 30,87 Lei | |
| 152 | 930029-00 | 1 | CUP | 4,57 Lei | |
| 157 | 611147-00 | 1 | GEAR SA | 127,2 Lei | |
| 160 | 330065-08 | 6 | SCREW M4X18 | 4,57 Lei | |
| 164 | 403395-00 | 1 | CORD PROTECTOR | 13,85 Lei | |
| 169 | 930090-00 | 2 | BRUSH SPRING | 4,7 Lei | |
| 170 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 171 | 402158-03SV | 1 | CLUTCH ASSY | 219,9 Lei | |
| 177 | 330045-09 | 2 | SCREW, METAL THREAD FORM M4 X 30 T20 | 4,57 Lei | |
| 178 | 330045-05 | 2 | SCREW.TEMP | 4,57 Lei | |
| 180 | 930082-01 | 2 | SCREW | 6,23 Lei | |
| 187 | 326467-00 | 2 | DETENT | 4,57 Lei | |
| 188 | 402140-00 | 1 | GUIDE, BLADE | 6,23 Lei | |
| 191 | 098000-11 | 1 | HEX KEY 5mm | 5,21 Lei | |
| 201 | 868082-00 | 1 | SPRING | 4,57 Lei | |
| 230 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 816 | 946194-00 | 1 | Logo Label DW801 | 4,57 Lei | |
| 820 | 569037-00 | 1 | RATING PLATE, DeWALT, BLANK | 17,02 Lei |
