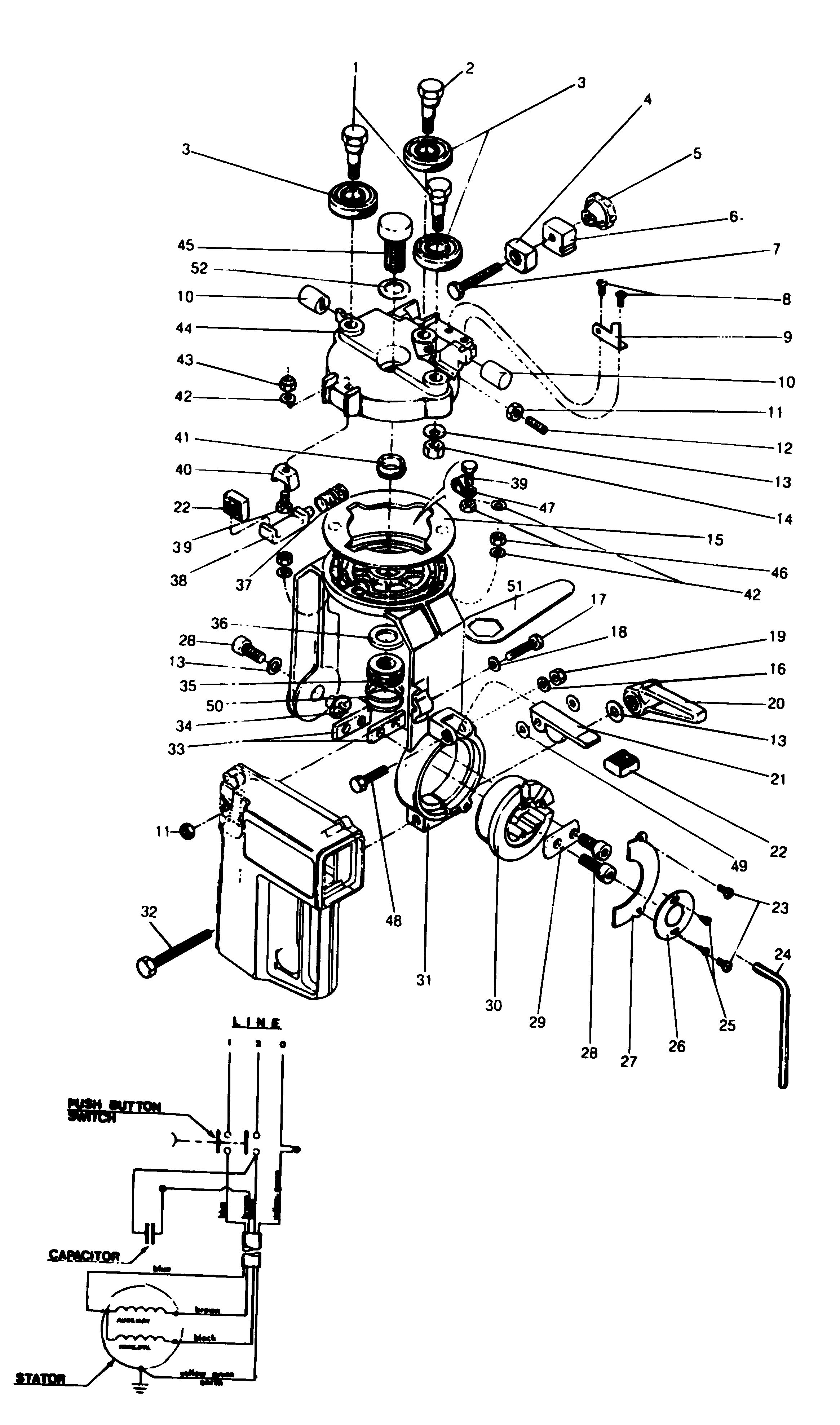

DEWALT POWERSHOP (Type 1)
SKU Produs: DW320-----C /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 760421-00 | 1 | SCREW,CONCENTRIC BEARING 1712 | 26,1 Lei | |
| 2 | 760417-00 | 1 | BEARING SHAFT-ECCENTRIC DW125- | 38,6 Lei | |
| 3 | 860154-00 | 3 | BEARING,SPECIAL SKF 614432-B | 199,6 Lei | |
| 5 | 946469-00 | 1 | KNOB | 5,3 Lei | |
| 7 | 941959-00 | 1 | HEX.HD.SCREW M6X50 | 4,7 Lei | |
| 8 | 860094-02 | 2 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,7 Lei | |
| 10 | 860786-00 | 2 | BUMPER FOR STOP D. 16X22 | 6,4 Lei | |
| 11 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 12 | 860088-10 | 1 | SCREW,SET M.6X20 UNI 5923 | 4,7 Lei | |
| 13 | 860073-03 | 2 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 14 | 860083-08 | 1 | NUT,HEX THICK M.8X1 UNI 5587 | 4,7 Lei | |
| 16 | 860074-02 | 1 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 17 | 860085-10 | 1 | SCREW,HEX M.6X25 UNI 5739 | 4,7 Lei | |
| 18 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 19 | 860092-00 | 1 | NUT,ELAST.STOP M.6 UNI 7474 | 4,7 Lei | |
| 23 | 860094-02 | 2 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,7 Lei | |
| 24 | 860098-04 | 1 | WRENCH,HEX 6 UNI 6753 | 5,3 Lei | |
| 25 | 860084-05 | 2 | SCREW,PAN.PHAB 3.5X9.5UNI6954 | 4,7 Lei | |
| 28 | 860093-07 | 2 | SCREW,SOCKET M.8X20 UNI 5931 | 4,7 Lei | |
| 29 | 860658-01 | 2 | WASHER,SPRING CURV.A8 UNI8840 | 4,7 Lei | |
| 42 | 860073-01 | 4 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 43 | 860092-03 | 1 | NUT M5 | 4,7 Lei | |
| 46 | 860083-02 | 3 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 47 | 860843-03 | 1 | STRAP,CABLE N7 7/16 NYLON | 4,7 Lei | |
| 52 | 860226-02 | 1 | WASHER-SHIM 16X23.5X1 | 4,7 Lei | |
| 53 | 938539-00 | 1 | WRENCH,HEX 3 UNI 6753 | 4,7 Lei | |
| 54 | 949882-01 | 1 | WRENCH | 4,7 Lei |
