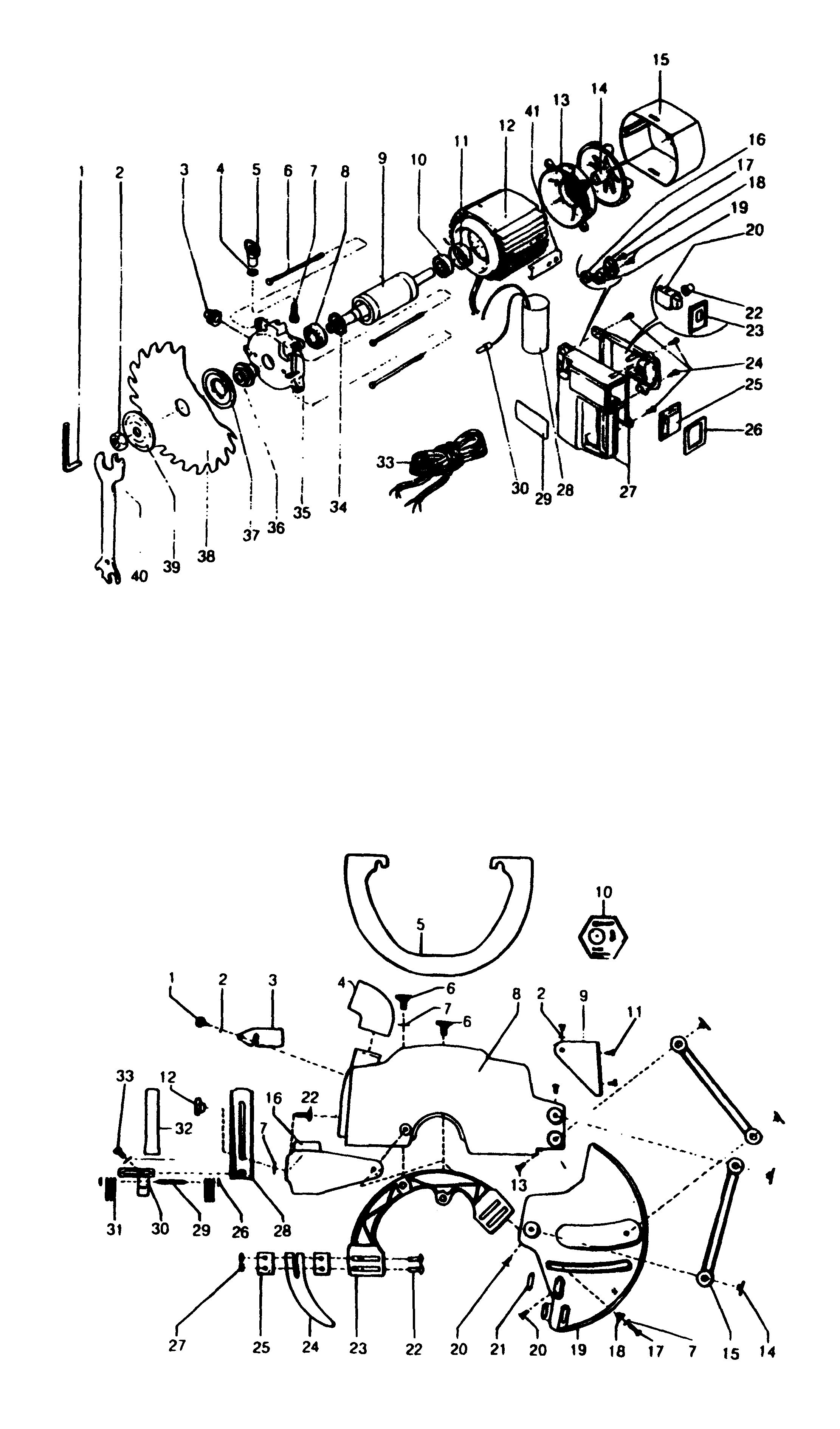

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW320-----B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 860098-05 | 1 | WRENCH,HEX 8 UNI 6753 | 14,2 Lei | |
| 1 | 861842-01 | 1 | KNOB | 8,8 Lei | |
| 2 | 860074-01 | 2 | WASHER,SPRING CON.D5.2X12X0.8 | 4,7 Lei | |
| 3 | 860447-00 | 1 | BUSHING,CABLE MOTOR DW 320 | 31,6 Lei | |
| 3 | 863708-00 | 1 | ROTATING SQUARE | 72 Lei | |
| 4 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 4 | 864095-00 | 1 | DUST SPOUT EUROG.D.250-300-350 | 31,6 Lei | |
| 5 | 863706-01 | 1 | REAR PROTECTION | 59,2 Lei | |
| 6 | 863015-00 | 3 | MOTOR TIE ROD-DW320 | 4,7 Lei | |
| 7 | 860075-00 | 1 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 7 | 860085-19 | 1 | SCREW,HEX M.8X25 UNI 5739 | 4,7 Lei | |
| 9 | 863707-01 | 1 | GUIDE SQUARE | 31,6 Lei | |
| 10 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
| 11 | 760273-00 | 2 | SCREW,FILL.HD M.5X8 UNI6107 | 4,7 Lei | |
| 12 | 946469-00 | 1 | KNOB | 5,3 Lei | |
| 13 | 760998-00 | 2 | SCREW M5X10 | 4,7 Lei | |
| 13 | 860443-00 | 1 | BELL,REAR END MOTOR DW 250 | 59,2 Lei | |
| 14 | 860444-00 | 1 | FAN | 20,4 Lei | |
| 14 | 864053-00 | 4 | WASHER FOR LEVER EUROG.250-300 | 17,4 Lei | |
| 15 | 860445-00 | 1 | COVER,FAN MOTOR DW 250 | 26,1 Lei | |
| 18 | 863705-00 | 1 | FRONT PROTECT.GUIDE BUSHING | 7,5 Lei | |
| 19 | 862417-00 | 1 | OUTER PROTECTION EUROG.DW1250 | 31,6 Lei | |
| 19 | 944590-00 | 1 | BUSHING,CABLE D.10XD.14X5 | 5,3 Lei | |
| 20 | 249412-20 | 2 | SCREW M5X10 | 4,7 Lei | |
| 21 | 864054-00 | 2 | SLIDING ROLLER EUROG.D.250-300 | 8,8 Lei | |
| 22 | 860301-00 | 3 | SCREW,CUP SQUARE M6X20UNI5732 | 4,7 Lei | |
| 24 | 930076-00 | 4 | SELF TAPPING SCREW 4,2X16 | 4,7 Lei | |
| 26 | 860074-02 | 1 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 27 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 28 | 949772-23 | 1 | CAPACITOR | 72 Lei | |
| 33 | 760219-00 | 1 | SOCKET HEAD SCREW | 4,7 Lei | |
| 34 | 860806-00 | 1 | RING,SPRING S.LOCK HOLE ZJ-40 | 7,5 Lei | |
| 44 | 860318-01 | 1 | KEY,WOODRUFF 4X5 UNI 6606 | 5,1 Lei |
