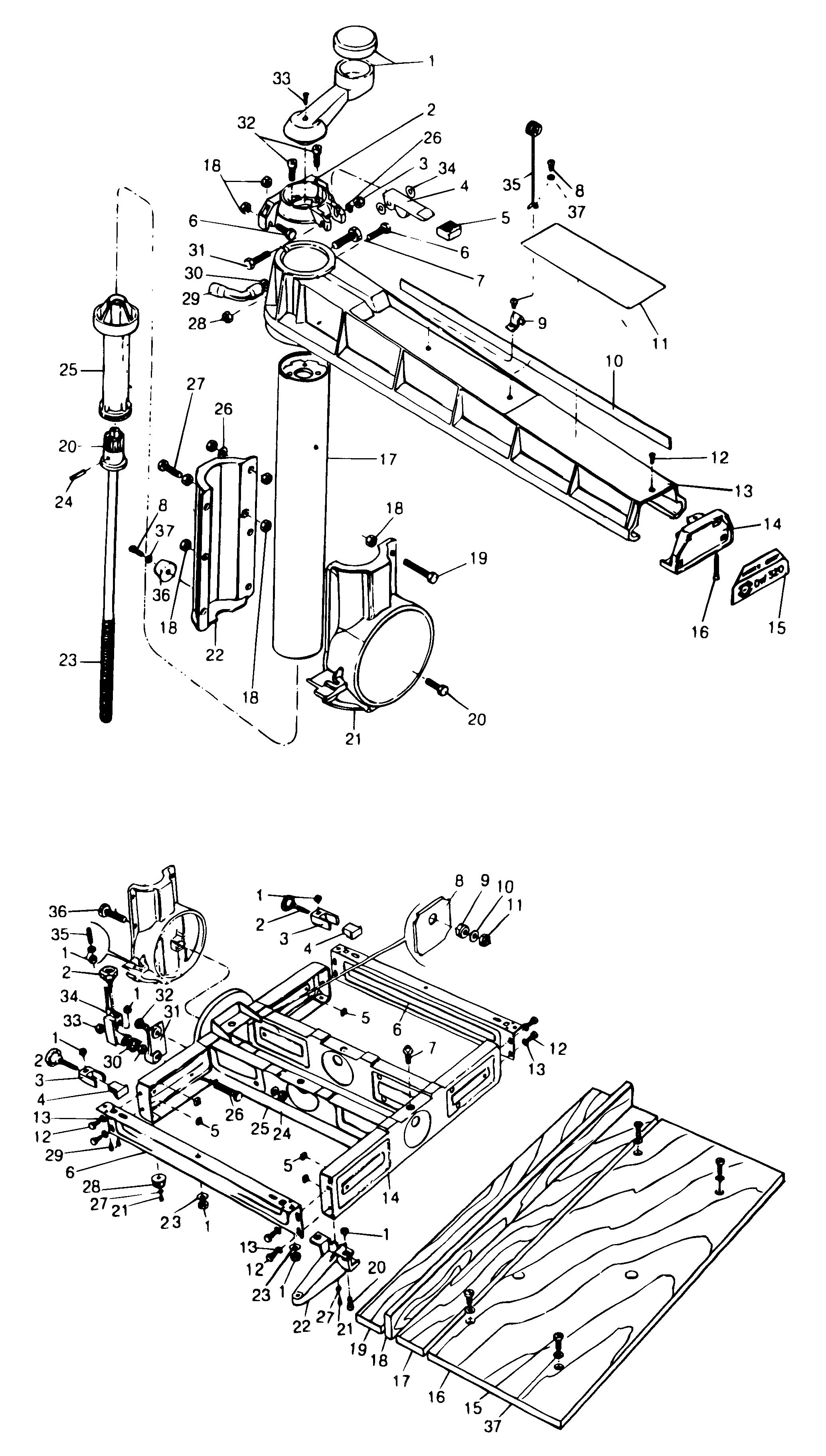

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW320-----A /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 860083-03 | 12 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 3 | 860092-00 | 1 | NUT,ELAST.STOP M.6 UNI 7474 | 4,7 Lei | |
| 6 | 860085-10 | 3 | SCREW,HEX M.6X25 UNI 5739 | 4,7 Lei | |
| 7 | 860085-19 | 1 | SCREW,HEX M.8X25 UNI 5739 | 4,7 Lei | |
| 8 | 860094-05 | 1 | SCREW,PAN PH/TT M.4X12UNI8112 | 4,7 Lei | |
| 10 | 860073-04 | 1 | WASHER,FLAT 10.5X21 UNI6592 Z | 4,7 Lei | |
| 11 | 860083-05 | 1 | NUT,HEX THICK M.10 UNI 5587 | 4,7 Lei | |
| 12 | 860085-07 | 8 | SCREW | 4,7 Lei | |
| 13 | 720959-00 | 8 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 15 | 941518-00 | 4 | SCREW,FLAT FILL.HD.M6X20 UNI61 | 4,7 Lei | |
| 18 | 860083-03 | 8 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 20 | 860093-05 | 8 | SCREW,SOCKET M.6X20 UNI 5931 | 4,7 Lei | |
| 23 | 860074-02 | 4 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 24 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 25 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 26 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 26 | 860085-23 | 1 | SCREW,HEX M.8X55 UNI 5739 | 5,3 Lei | |
| 27 | 860073-00 | 5 | WASHER,FLAT 4.3X9 UNI 6592 | 4,7 Lei | |
| 27 | 860085-13 | 3 | SCREW,HEX M.6X12 UNI5739 BLCK | 4,7 Lei | |
| 28 | 860092-02 | 1 | NUT,ELAST.STOP M.6 UNI 7473 | 4,7 Lei | |
| 29 | 860084-05 | 4 | SCREW,PAN.PHAB 3.5X9.5UNI6954 | 4,7 Lei | |
| 30 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 32 | 860085-04 | 1 | SCREW,HEX M.8X16 UNI 5739 | 4,7 Lei | |
| 32 | 860093-05 | 2 | SCREW,SOCKET M.6X20 UNI 5931 | 4,7 Lei | |
| 33 | 860092-01 | 1 | NUT,ELAST.STOP M.8 UNI 7473 | 4,7 Lei | |
| 33 | 860428-00 | 1 | SCREW,CTSKPHAB 4.2X19UNI 6955 | 4,7 Lei | |
| 36 | 860085-05 | 1 | SCREW,HEX M.10X45 UNI 5739 | 5,3 Lei | |
| 37 | 860073-00 | 2 | WASHER,FLAT 4.3X9 UNI 6592 | 4,7 Lei | |
| 37 | 860075-00 | 4 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 38 | 760998-00 | 4 | SCREW M5X10 | 4,7 Lei | |
| 40 | 860075-01 | 4 | WASHER,FLAT SPEC.5.5X20X1.5 | 4,7 Lei |
