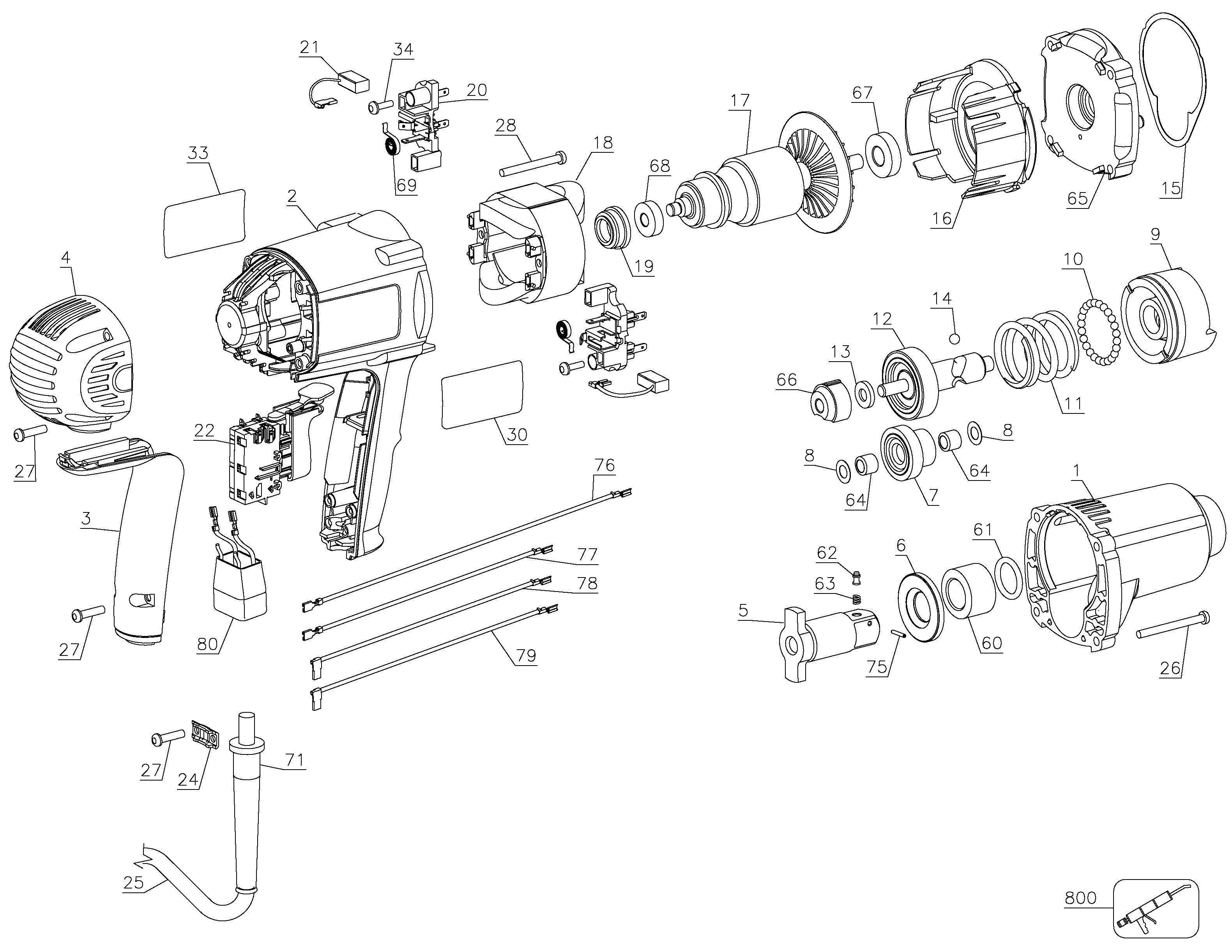

DEWALT 3/4 IMPACT WRENCH Type 1
SKU Produs: DW294
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 621136-00 | 1 | GEARCASE SA | 145,09 Lei | |
| 2 | 616828-05 | 1 | FIELDCASE | 70,39 Lei | |
| 3 | 616829-01 | 1 | HANDLE COVER | 53,4 Lei | |
| 4 | 616830-00 | 1 | END CAP | 25,54 Lei | |
| 5 | 621005-00SV | 1 | ANVIL ASSEMBLY | 497,78 Lei | |
| 6 | 621046-00 | 1 | WASHER THRUST | 26,1 Lei | |
| 7 | 135093-01SV | 1 | GEAR AND PINION | 88,55 Lei | |
| 8 | 135089-00 | 2 | WASHER DW290 | 4,57 Lei | |
| 9 | 628129-00 | 1 | IMPACTOR | 169,36 Lei | |
| 10 | 000475-00 | 25 | BALL STEEL 3/16 | 4,57 Lei | |
| 11 | 618843-00 | 1 | SPRING | 17,02 Lei | |
| 12 | 659923-00SV | 1 | SA CAM SHAFT SERVICE | 195,02 Lei | |
| 14 | 618844-00 | 2 | BALL STEEL | 4,57 Lei | |
| 15 | 616847-00 | 1 | GASKET | 4,57 Lei | |
| 16 | 655537-00 | 1 | BAFFLE FAN | 10,29 Lei | |
| 17 | 5140071-79 | 1 | ARMATURE KIT 220 | 200,99 Lei | |
| 18 | 617862-01SV | 1 | FIELD | 106,98 Lei | |
| 20 | 616857-00 | 2 | BRUSH HOLDER | 21,85 Lei | |
| 21 | 617848-03 | 2 | BRUSH 230V SA | 19,95 Lei | |
| 22 | 616849-00 | 1 | SWITCH | 96,56 Lei | |
| 24 | 450877-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 25 | 330120-39 | 1 | CORDSET (M/PLUG) QS | 96,56 Lei | |
| 26 | 330019-50 | 1 | SCREW | 4,57 Lei | |
| 27 | 330019-13 | 8 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 28 | 330019-17 | 2 | SCREW | 4,57 Lei | |
| 33 | 605523-00 | 1 | IDENTITY LABEL | 5,21 Lei | |
| 34 | 176951-00 | 2 | SCREW | 4,57 Lei | |
| 60 | 619367-00 | 1 | SLEEVE | 13,85 Lei | |
| 61 | 621128-00 | 1 | O RING | 4,7 Lei | |
| 62 | N020802 | 1 | DETENT | 12,71 Lei | |
| 63 | 038769-00 | 1 | SPRING, CPRSN | 5,21 Lei | |
| 63 | 40260300 | 1 | BELT | 78,1 Lei | |
| 64 | 330004-02 | 2 | BEARING, NEEDLE | 8,64 Lei | |
| 65 | 616823-00SV | 1 | GEARCASE COVER SA | 130,35 Lei | |
| 66 | 616841-00 | 1 | BEARING BLOCK | 13,85 Lei | |
| 67 | 616823-00SV | 1 | GEARCASE COVER SA | 130,35 Lei | |
| 68 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 69 | 383387-00 | 2 | BRUSH SPRING DW309K | 12,71 Lei | |
| 71 | 148809-00 | 1 | PROTECTOR | 5,21 Lei | |
| 75 | 046376-00 | 1 | PIN | 4,7 Lei | |
| 76 | 616852-00 | 1 | LEAD BLUE | 7,37 Lei | |
| 77 | 616852-01 | 1 | LEAD WHITE | 7,37 Lei | |
| 78 | 616852-02 | 1 | LEAD BLACK | 13,85 Lei | |
| 79 | 616852-03 | 1 | LEAD RED | 10,5 Lei | |
| 80 | 623976-00 | 1 | FILTER | 133,4 Lei | |
| 800 | 429698-00 | 1 | GREASE | 819,98 Lei |
