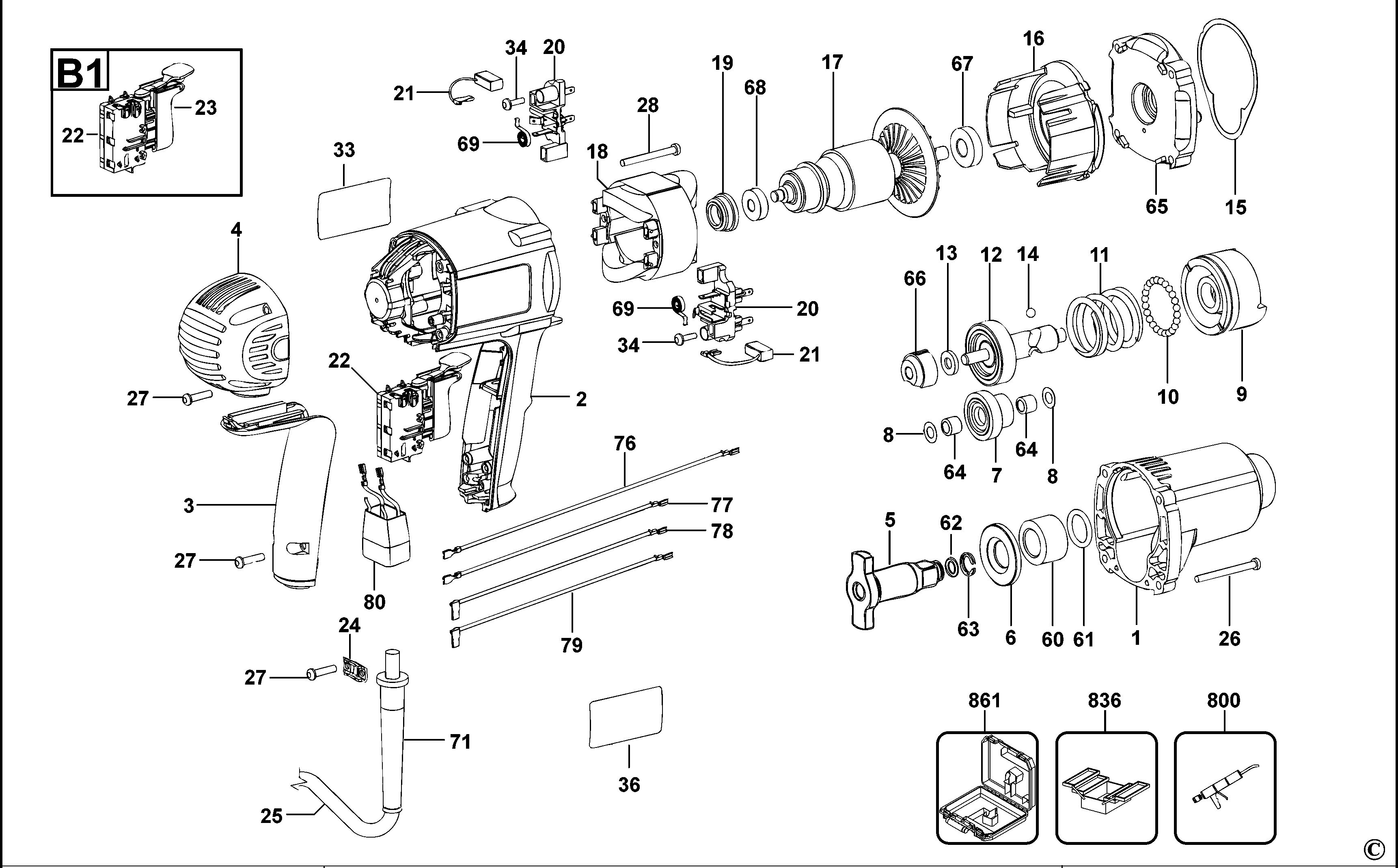

DEWALT IMPACT WRENCH (Type 1)
SKU Produs: DW293 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N822135 | 1 | GEARCASE SA | 123,6 Lei | |
| 4 | 616830-00 | 1 | END CAP | 25,54 Lei | |
| 6 | 616859-00 | 1 | WASHER THRUST | 17,02 Lei | |
| 7 | 135093-01SV | 1 | GEAR AND PINION | 88,55 Lei | |
| 8 | 135089-00 | 2 | WASHER DW290 | 4,57 Lei | |
| 9 | 628129-00 | 1 | IMPACTOR | 169,36 Lei | |
| 10 | 000475-00 | 25 | BALL STEEL 3/16 | 4,57 Lei | |
| 11 | 618843-00 | 1 | SPRING | 17,02 Lei | |
| 12 | 659923-00SV | 1 | SA CAM SHAFT SERVICE | 195,02 Lei | |
| 14 | 618844-00 | 2 | BALL STEEL | 4,57 Lei | |
| 15 | 616847-00 | 1 | GASKET | 4,57 Lei | |
| 19 | 445217-02 | 1 | SLEEVE | 5,21 Lei | |
| 20 | 616857-00 | 2 | BRUSH HOLDER | 21,85 Lei | |
| 24 | 450877-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 26 | 330019-50 | 4 | SCREW | 4,57 Lei | |
| 27 | 330019-13 | 8 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 28 | 330019-17 | 2 | SCREW | 4,57 Lei | |
| 33 | 605523-00 | 1 | IDENTITY LABEL | 5,21 Lei | |
| 34 | 176951-00 | 2 | SCREW | 4,57 Lei | |
| 62 | 050056-00 | 1 | O RING | 4,57 Lei | |
| 63 | 086947-00 | 1 | CIRCLIP | 6,23 Lei | |
| 64 | 330004-02 | 2 | BEARING, NEEDLE | 8,64 Lei | |
| 65 | 616823-00SV | 1 | GEARCASE COVER SA | 130,35 Lei | |
| 66 | 616841-00 | 1 | BEARING BLOCK | 13,85 Lei | |
| 67 | 616823-00SV | 1 | GEARCASE COVER SA | 130,35 Lei | |
| 68 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 69 | 383387-00 | 2 | BRUSH SPRING DW309K | 12,71 Lei | |
| 80 | 623976-00 | 1 | FILTER | 133,4 Lei | |
| 800 | 429698-00 | 1 | GREASE | 819,98 Lei |
