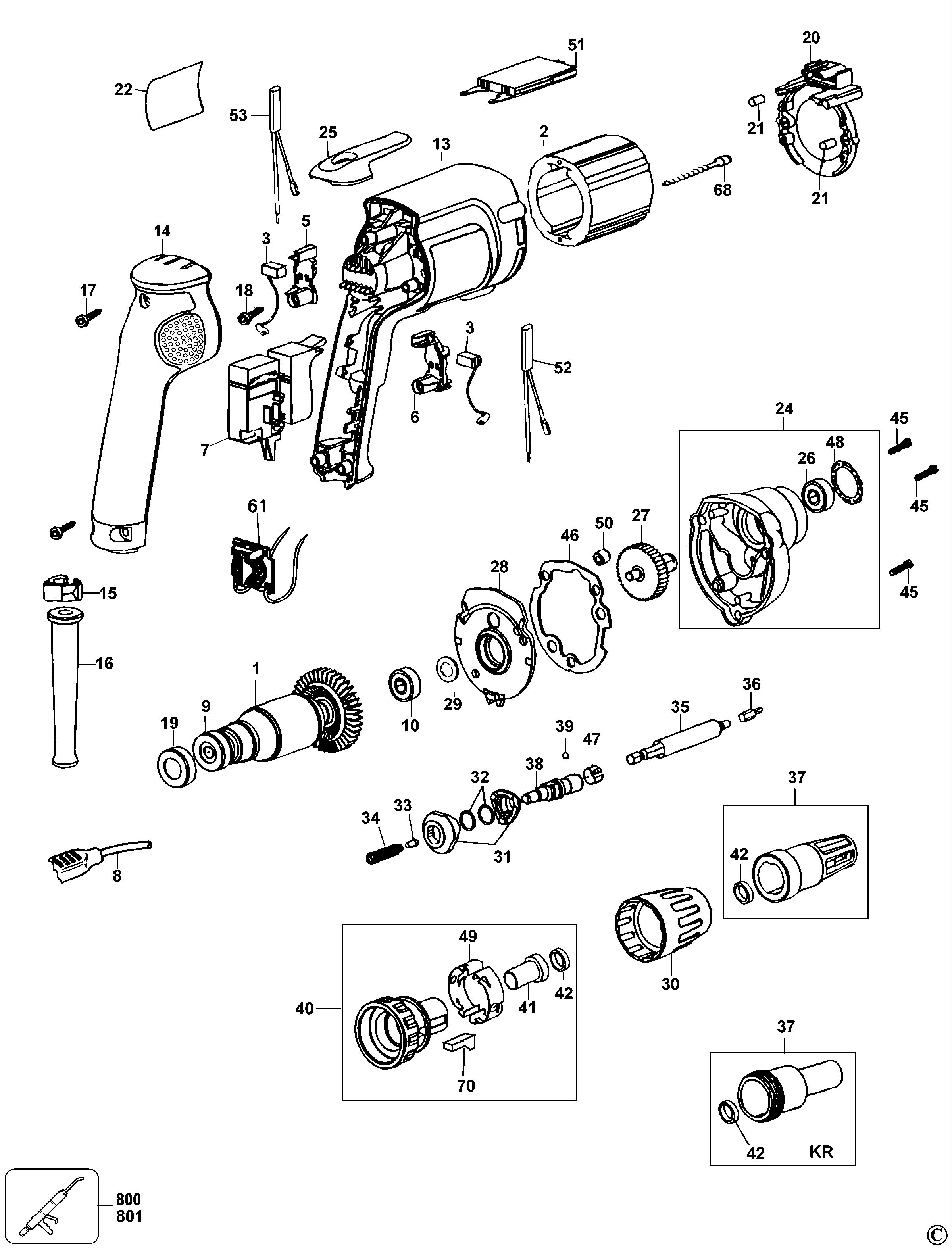

DEWALT SCREWDRIVER (Type 2)
SKU Produs: DW274K /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 579598-13 | 1 | SA ARMATURE AND BEARING 240 SERVICE ) | 264,01 Lei | |
| 2 | N803540 | 1 | FIELD SA | 181,55 Lei | |
| 3 | 176949-00 | 2 | BRUSH 230V CUT OFF | 17,02 Lei | |
| 5 | 176801-03 | 1 | SA BRUSH HOLDER LEFT | 173,3 Lei | |
| 6 | 176800-03 | 1 | SA BRUSH HOLDER RIGHT | 133,4 Lei | |
| 8 | 330120-86 | 1 | CORD, PWR SPLY EURO | 70,39 Lei | |
| 9 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 10 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 14 | 176816-03 | 1 | COVER, HANDLE HOLE 35 | 40,9 Lei | |
| 15 | 402648-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 16 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 17 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 18 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 19 | 389824-00 | 1 | RUBBER BOOT | 4,57 Lei | |
| 20 | 176811-00 | 1 | FAN BAFFLE | 7,37 Lei | |
| 21 | 949638-02 | 3 | SMALL RUBBER | 4,57 Lei | |
| 22 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,57 Lei | |
| 24 | 388562-00SV | 1 | GEARCASE | 130,35 Lei | |
| 25 | N045425 | 1 | BELT CLIP | 10,29 Lei | |
| 26 | 605040-20 | 1 | Ball Brg | 17,02 Lei | |
| 27 | 638982-00 | 1 | GEAR AND SPINDLE | 127,2 Lei | |
| 28 | 386622-00 | 1 | GEARCASE COVER | 34,05 Lei | |
| 29 | 23813-00 | 1 | WASHER | 5,1 Lei | |
| 30 | 152492-01 | 1 | COLLAR, ADJUSTING | 25,54 Lei | |
| 31 | 603478-00 | 2 | CLUTCH | 24,9 Lei | |
| 31 | N737329 | 1 | CLUTCH | 31,6 Lei | |
| 32 | 089210-00 | 2 | RING, RETAINER, ROUND | 6,23 Lei | |
| 33 | 021287-00 | 1 | GUIDE | 4,57 Lei | |
| 33 | 23824200 | 1 | HANDLE | 24,9 Lei | |
| 33 | 25121501 | 1 | BRUSH | 30,1 Lei | |
| 33 | 25351500 | 1 | KEY 34X36 | 40,9 Lei | |
| 33 | 25922908 | 1 | NUT | 8,4 Lei | |
| 34 | 86211-00 | 1 | SPRING | 4,5 Lei | |
| 35 | 619773-02 | 1 | HOLDER, BIT TIP, MAG | 19,95 Lei | |
| 36 | 297757-02 | 1 | BIT INSERT PH NO2 | 6,23 Lei | |
| 37 | 450770-02SV | 1 | LOCATOR | 130,35 Lei | |
| 38 | 176697-00 | 1 | SPINDLE, OUTPUT | 106,98 Lei | |
| 39 | 696631-00 | 1 | BALL, STEEL | 4,57 Lei | |
| 40 | N740053 | 1 | CLUTCH SA | 41,93 Lei | |
| 41 | 450907-00 | 1 | BEARING, SLEEVE | 21,85 Lei | |
| 42 | 696534-00 | 2 | SEAL, SHAFT | 7,37 Lei | |
| 45 | 330019-14 | 3 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 46 | 176655-00 | 1 | GASKET | 4,57 Lei | |
| 47 | 094518-00 | 1 | RETAINER | 19,95 Lei | |
| 48 | 176689-00 | 1 | RETAINER, BEARING | 4,57 Lei | |
| 49 | 391436-00 | 2 | SPRING, DETENT | 4,57 Lei | |
| 50 | 093128-00 | 1 | NEEDLE BEARING | 7,37 Lei | |
| 68 | 390198-00 | 2 | SCREW | 4,57 Lei | |
| 70 | 390437-01 | 1 | PLUG | 25,54 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei |
