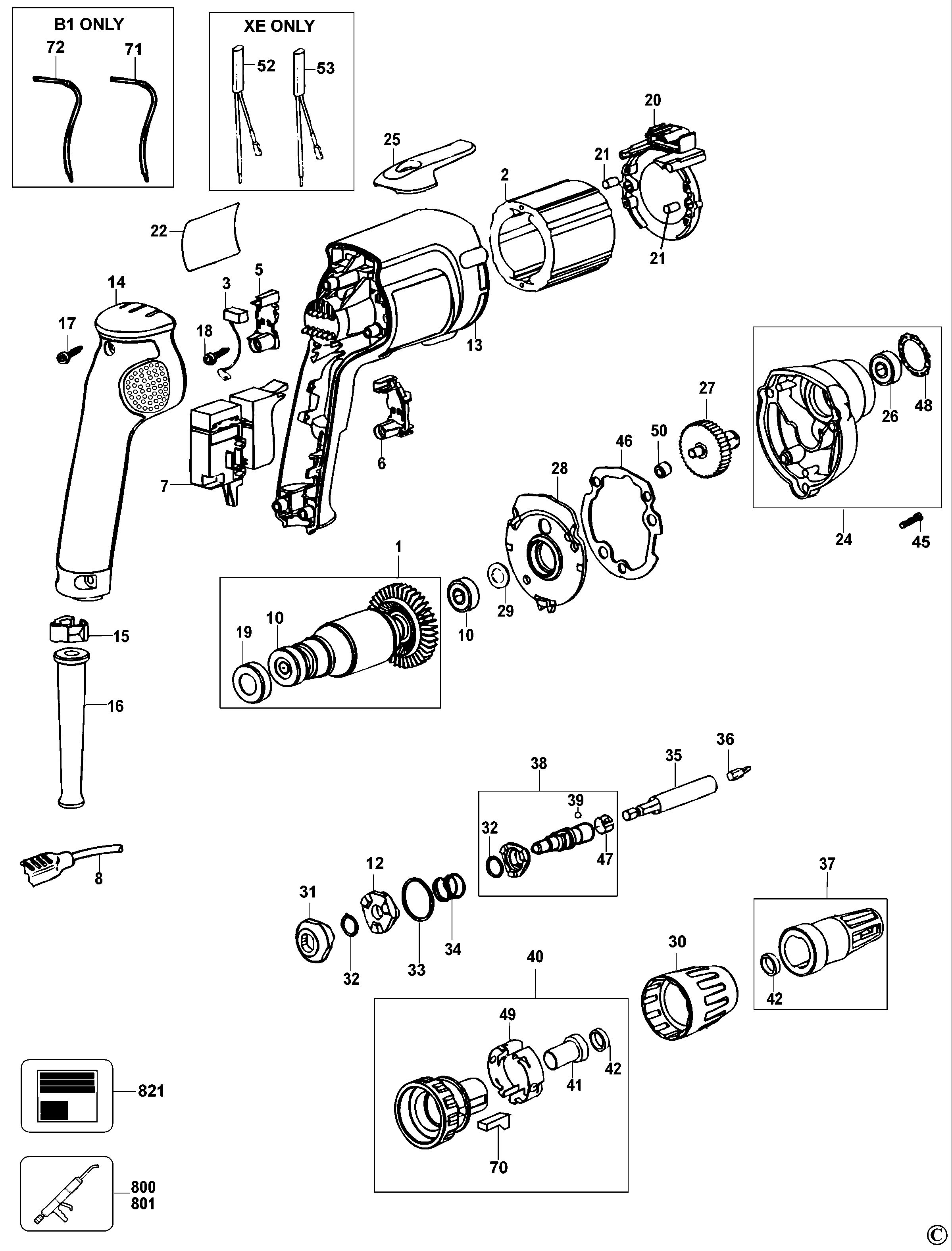

DEWALT SCREWDRIVER (Type 2)
SKU Produs: DW256 /Type: 2
Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
---|---|---|---|---|---|
10 | 605040-06 | 2 | BEARING,BALL | 14,2 Lei | |
12 | 386303-00 | 1 | CLUTCH, INTERMEDIATE | 72 Lei | |
13 | N014399 | 1 | FIELD CASE (MOULD) | 90,6 Lei | |
14 | 176816-03 | 1 | COVER, HANDLE HOLE 35 | 40,9 Lei | |
16 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
17 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
18 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
19 | 389824-00 | 1 | RUBBER BOOT | 4,7 Lei | |
20 | 176811-00 | 1 | FAN BAFFLE | 7,5 Lei | |
21 | 949638-02 | 3 | SMALL RUBBER | 4,7 Lei | |
22 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,7 Lei | |
24 | 388562-00SV | 1 | GEARCASE | 133,4 Lei | |
25 | N045425 | 1 | BELT CLIP | 10,5 Lei | |
26 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
27 | 638982-00 | 1 | GEAR AND SPINDLE | 127,2 Lei | |
28 | 386622-00 | 1 | GEARCASE COVER | 34,8 Lei | |
29 | 23813-00 | 1 | WASHER | 5,1 Lei | |
30 | 152492-01 | 1 | COLLAR, ADJUSTING | 26,1 Lei | |
31 | 392829-00 | 1 | CLUTCH, DRIVE | 17,4 Lei | |
32 | 089210-00 | 2 | RING, RETAINER, ROUND | 6,4 Lei | |
33 | 386304-00 | 1 | WASHER, THRUST, PM | 6,4 Lei | |
34 | 176842-00 | 1 | SPRING, COMPRESSION | 4,7 Lei | |
35 | 619773-02 | 1 | HOLDER, BIT TIP, MAG | 20,4 Lei | |
36 | 607904-22 | 1 | BIT, SCDR DRYWALL PR2 | 4,7 Lei | |
37 | 450770-02SV | 1 | LOCATOR | 133,4 Lei | |
38 | 381497-03 | 1 | SA SPINDLE AND CLUTCH ( SERVICE ) | 230,5 Lei | |
39 | 696631-00 | 1 | BALL, STEEL | 4,7 Lei | |
40 | N740053 | 1 | CLUTCH SA | 42,9 Lei | |
41 | 450907-00 | 1 | BEARING, SLEEVE | 22,4 Lei | |
42 | 696534-00 | 1 | SEAL, SHAFT | 7,5 Lei | |
45 | 330019-14 | 3 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,7 Lei | |
46 | 176655-00 | 1 | GASKET | 4,7 Lei | |
47 | 094518-00 | 1 | RETAINER | 4,7 Lei | |
48 | 176689-00 | 1 | RETAINER, BEARING | 4,7 Lei | |
49 | 391436-00 | 1 | SPRING, DETENT | 4,7 Lei | |
50 | 910560 | 1 | BEARING, NEEDLE 6 * 10 * 9 | 8,8 Lei | |
70 | 390437-01 | 1 | PLUG | 26,1 Lei | |
800 | 575762-02 | 1 | GREASE 100 GM TUBE | 36,8 Lei | |
800 | 808386-00 | 1 | GREASE 100 GMS | 190,3 Lei | |
801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 53,4 Lei | |
821 | 569037-00 | 1 | RATING PLATE, DeWALT, BLANK | 17,4 Lei |
