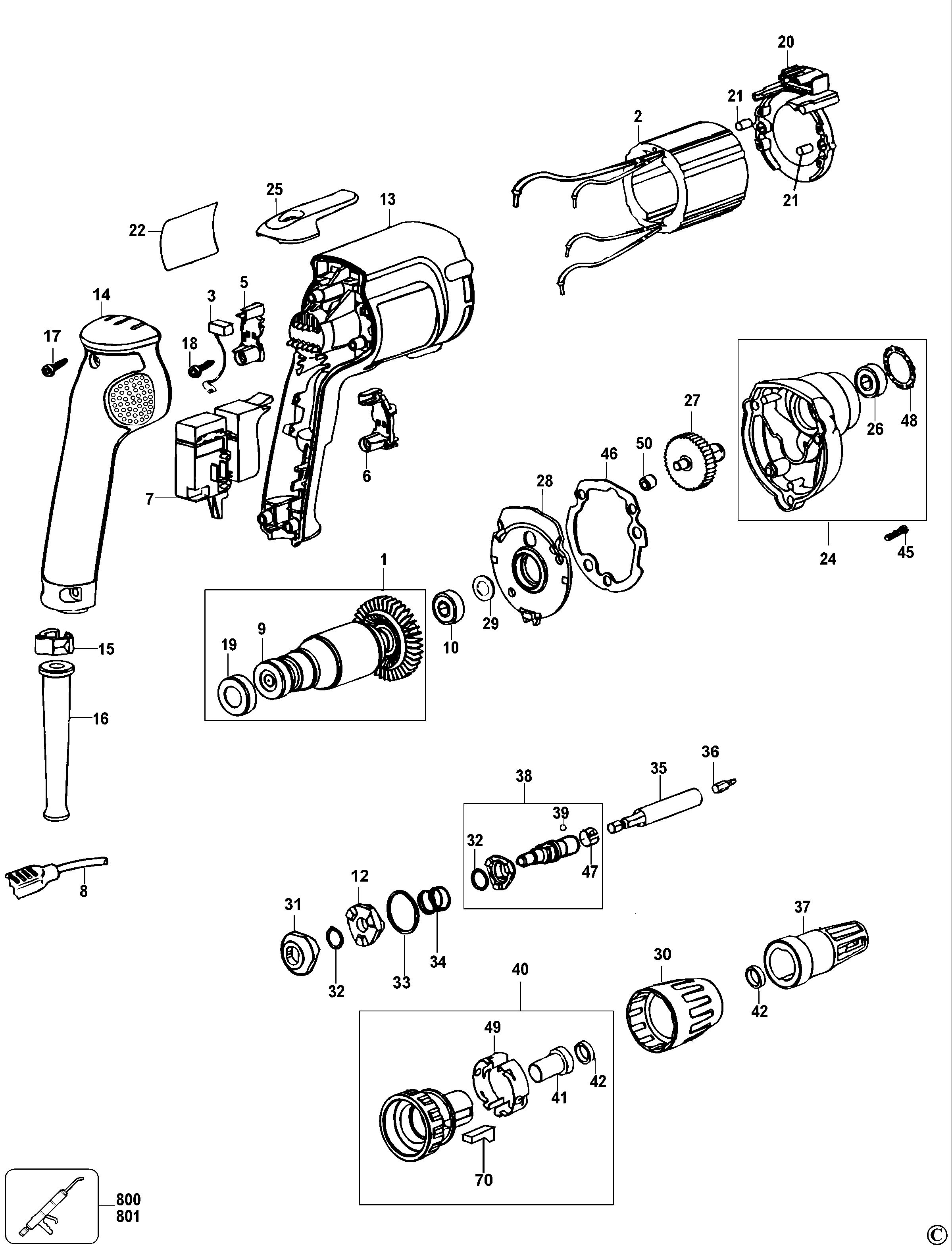

DEWALT SCREWDRIVER (Type 3)
SKU Produs: DW255 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 5 | 401877-01 | 1 | SA BRUSH HOLDER | 17,4 Lei | |
| 6 | 401878-01 | 1 | SA BRUSH HOLDER | 17,4 Lei | |
| 9 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 10 | 605040-06 | 2 | BEARING,BALL | 14,2 Lei | |
| 12 | 386303-00 | 1 | CLUTCH, INTERMEDIATE | 72 Lei | |
| 13 | N014399 | 1 | FIELD CASE (MOULD) | 90,6 Lei | |
| 15 | 402648-00 | 1 | CORD CLAMP | 4,7 Lei | |
| 16 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 17 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 18 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
| 19 | 389824-00 | 1 | RUBBER BOOT | 4,7 Lei | |
| 20 | 176811-00 | 1 | FAN BAFFLE | 7,5 Lei | |
| 21 | 949638-02 | 3 | SMALL RUBBER | 4,7 Lei | |
| 22 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,7 Lei | |
| 24 | 388562-00SV | 1 | GEARCASE | 133,4 Lei | |
| 25 | N045425 | 1 | BELT CLIP | 10,5 Lei | |
| 26 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
| 27 | 176695-00SV | 1 | SPINDLE AND GEAR | 246 Lei | |
| 28 | 386622-00 | 1 | GEARCASE COVER | 34,8 Lei | |
| 29 | 176727-00 | 1 | WASHER, FIBRE | 4,7 Lei | |
| 30 | 152492-01 | 1 | COLLAR, ADJUSTING | 26,1 Lei | |
| 31 | 392829-00 | 1 | CLUTCH, DRIVE | 17,4 Lei | |
| 32 | 089210-00 | 2 | RING, RETAINER, ROUND | 6,4 Lei | |
| 33 | 386304-00 | 1 | WASHER, THRUST, PM | 6,4 Lei | |
| 34 | 176842-00 | 1 | SPRING, COMPRESSION | 4,7 Lei | |
| 35 | 619773-02 | 1 | HOLDER, BIT TIP, MAG | 20,4 Lei | |
| 36 | 607904-22 | 1 | BIT, SCDR DRYWALL PR2 | 4,7 Lei | |
| 37 | 450770-02SV | 1 | LOCATOR | 133,4 Lei | |
| 38 | 381497-03 | 1 | SA SPINDLE AND CLUTCH ( SERVICE ) | 230,5 Lei | |
| 39 | 696631-00 | 1 | BALL, STEEL | 4,7 Lei | |
| 40 | N740053 | 1 | CLUTCH SA | 42,9 Lei | |
| 41 | 450907-00 | 1 | BEARING, SLEEVE | 22,4 Lei | |
| 42 | 696534-00 | 2 | SEAL, SHAFT | 7,5 Lei | |
| 45 | 330019-14 | 3 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,7 Lei | |
| 46 | 176655-00 | 1 | GASKET | 4,7 Lei | |
| 47 | 094518-00 | 1 | RETAINER | 4,7 Lei | |
| 48 | 176689-00 | 1 | RETAINER, BEARING | 4,7 Lei | |
| 49 | 391436-00 | 2 | SPRING, DETENT | 4,7 Lei | |
| 50 | 910560 | 1 | BEARING, NEEDLE 6 * 10 * 9 | 8,8 Lei | |
| 70 | 390437-01 | 2 | PLUG | 26,1 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 53,4 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 53,4 Lei |
