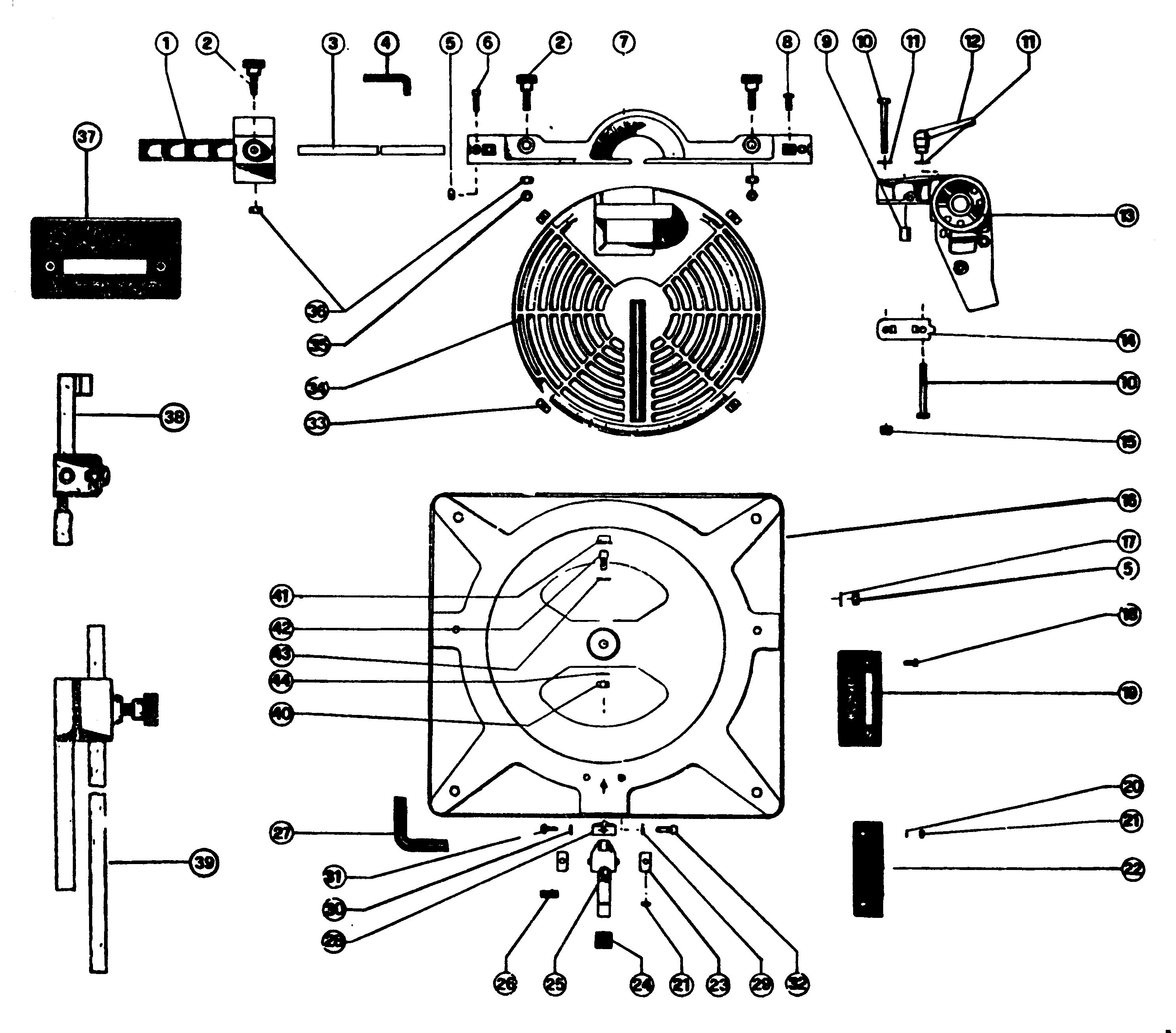

DEWALT MITRE SAW (Type 1)
SKU Produs: DW252-----C /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | 930574-00 | 1 | WRENCH,HEX 5 UNI 6753 | 5,3 Lei | |
| 5 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 6 | 760219-00 | 1 | SOCKET HEAD SCREW | 4,7 Lei | |
| 7 | 862099-01 | 1 | TABLE FENCE DW710 | 422,5 Lei | |
| 8 | 860085-13 | 1 | SCREW,HEX M.6X12 UNI5739 BLCK | 4,7 Lei | |
| 10 | 860085-02 | 2 | SCREW,HEX M.8X70 UNI 5739 | 6,4 Lei | |
| 11 | 860073-03 | 2 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 12 | 949884-01 | 1 | LEVER DW250-DW252 | 31,6 Lei | |
| 15 | 860092-01 | 1 | NUT,ELAST.STOP M.8 UNI 7473 | 4,7 Lei | |
| 17 | 860074-02 | 1 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 18 | 860089-18 | 1 | SCREW,FIL.HD M.5X16 UNI6107 Z | 4,7 Lei | |
| 20 | 860073-01 | 1 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 21 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 29 | 860074-01 | 1 | WASHER,SPRING CON.D5.2X12X0.8 | 4,7 Lei | |
| 30 | 860073-00 | 1 | WASHER,FLAT 4.3X9 UNI 6592 | 4,7 Lei | |
| 31 | 860084-03 | 1 | SCREW,PAN.PHAB 4.2X9.5UNI6954 | 4,7 Lei | |
| 34 | 869232-00 | 1 | TABLE DW710 SERVICE | 270,2 Lei | |
| 36 | 860083-04 | 3 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 40 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 44 | 860074-03 | 1 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei |
