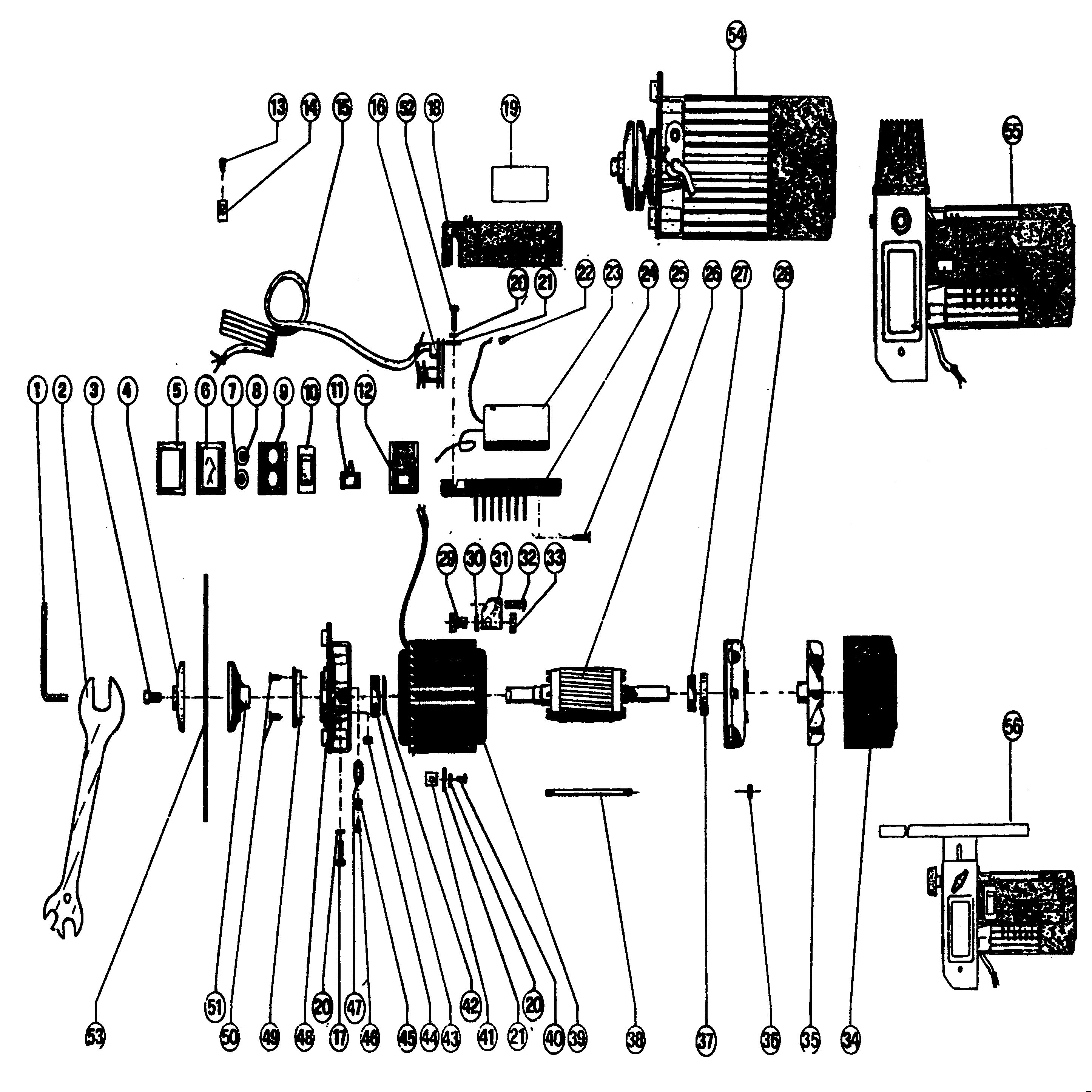

DEWALT MITRE SAW (Type 1)
SKU Produs: DW252-----A /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 860098-04 | 1 | WRENCH,HEX 6 UNI 6753 | 5,3 Lei | |
| 13 | 860094-03 | 1 | SCREW,PAN PH/TT M.4X10UNI8112 | 4,7 Lei | |
| 14 | 123106-00 | 1 | STRAP,CABLE 1/4 H NYLON | 4,7 Lei | |
| 16 | 863573-00 | 1 | CABLE INLET RING DW250-DW252 | 7,5 Lei | |
| 17 | 860085-13 | 1 | SCREW,HEX M.6X12 UNI5739 BLCK | 4,7 Lei | |
| 20 | 860075-00 | 1 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 21 | 863025-00 | 2 | RUBBER FOR SCREW-DW250-252 | 7,5 Lei | |
| 23 | 949772-23 | 1 | CAPACITOR | 72 Lei | |
| 25 | 860084-09 | 1 | SCREW,PAN PHAB 4.2X22 UNI6954 | 4,7 Lei | |
| 27 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
| 28 | 860443-00 | 1 | BELL,REAR END MOTOR DW 250 | 59,2 Lei | |
| 30 | 860074-03 | 1 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 33 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 34 | 860445-00 | 1 | COVER,FAN MOTOR DW 250 | 26,1 Lei | |
| 35 | 860444-00 | 1 | FAN | 20,4 Lei | |
| 36 | 860083-02 | 1 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 37 | 860080-02 | 1 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
| 38 | 863015-00 | 1 | MOTOR TIE ROD-DW320 | 4,7 Lei | |
| 40 | 930076-00 | 1 | SELF TAPPING SCREW 4,2X16 | 4,7 Lei | |
| 41 | 949761-01 | 1 | WASHER FOR SCREW | 5,3 Lei | |
| 42 | 860806-00 | 1 | RING,SPRING S.LOCK HOLE ZJ-40 | 7,5 Lei | |
| 43 | 861721-12 | 1 | BEARING 6203 2RS ISB | 17,4 Lei | |
| 44 | 860083-03 | 1 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 45 | 944650-00 | 1 | CLAMP,WIRE ZINC PLATED | 4,7 Lei | |
| 46 | 860094-03 | 1 | SCREW,PAN PH/TT M.4X10UNI8112 | 4,7 Lei | |
| 47 | 863026-00 | 1 | GASKET | 4,7 Lei | |
| 49 | 863039-02 | 1 | MOZZO PROT OSCILL.DW711 | 7,5 Lei | |
| 52 | 860085-13 | 1 | SCREW,HEX M.6X12 UNI5739 BLCK | 4,7 Lei |
