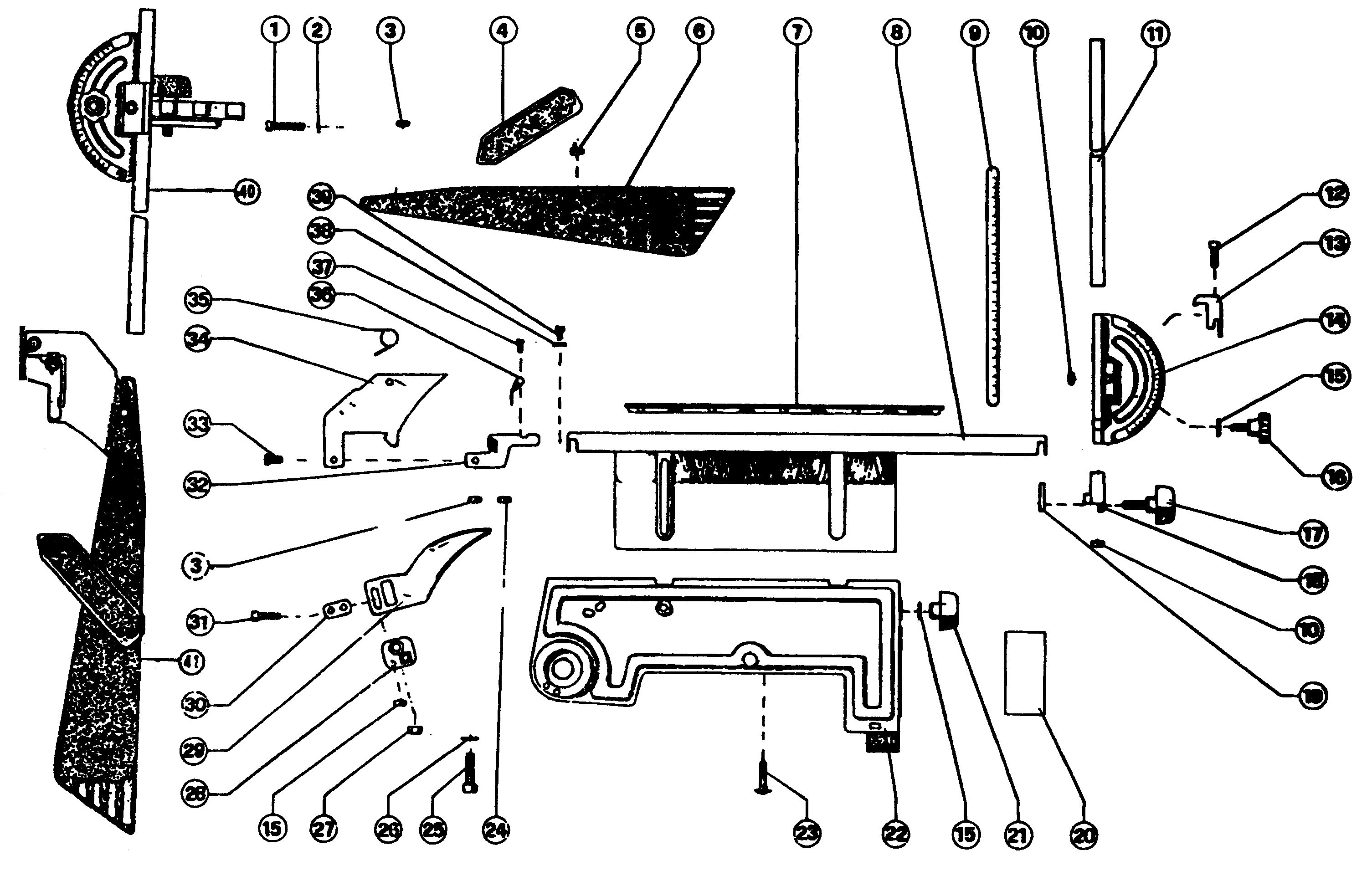

DEWALT MITRE SAW (Type 1)
SKU Produs: DW250-----B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 3 | 860092-02 | 2 | NUT,ELAST.STOP M.6 UNI 7473 | 4,7 Lei | |
| 10 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 12 | 860093-11 | 1 | SCREW,SOCKET M.6X30 UNI 5931 | 4,7 Lei | |
| 15 | 860075-00 | 3 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 17 | 862427-00 | 1 | KNOB D.40X16-M8X23-BLACK | 4,7 Lei | |
| 24 | 860083-02 | 1 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 25 | 860093-00 | 1 | SCREW,SOCKET M.8X30 UNI 5931 | 4,7 Lei | |
| 26 | 860074-03 | 1 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 27 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 31 | 860093-05 | 1 | SCREW,SOCKET M.6X20 UNI 5931 | 4,7 Lei | |
| 33 | 860085-07 | 1 | SCREW | 4,7 Lei | |
| 37 | 860094-03 | 1 | SCREW,PAN PH/TT M.4X10UNI8112 | 4,7 Lei | |
| 38 | 860073-01 | 1 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei |
