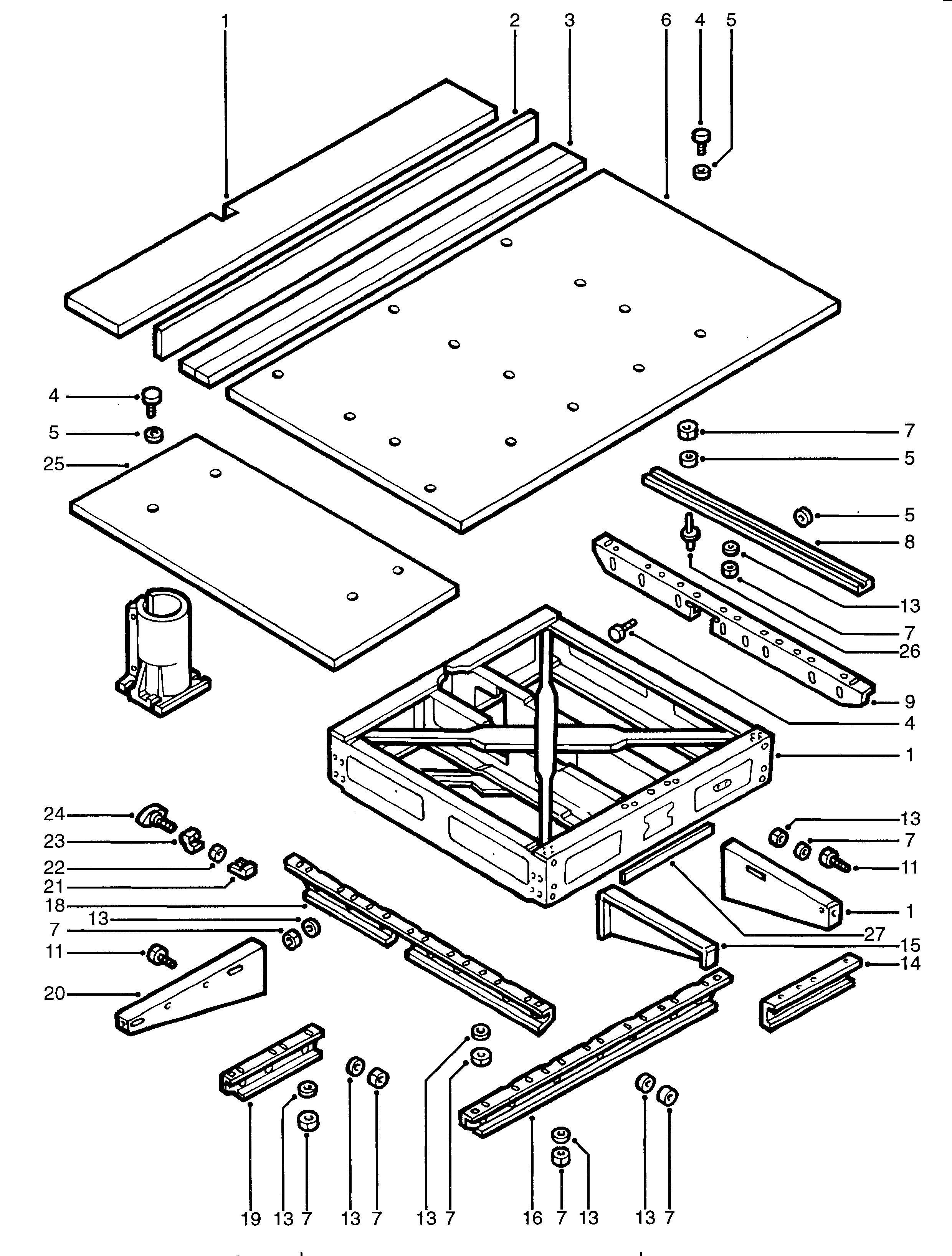

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW1751----E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 5 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 7 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 11 | 860085-04 | 1 | SCREW,HEX M.8X16 UNI 5739 | 4,7 Lei | |
| 13 | 860074-03 | 1 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 18 | 860222-00 | 1 | BAR,MITRE LH L.750 BLACK | 154,1 Lei | |
| 20 | 861238-02 | 1 | BRACKET | 185,8 Lei | |
| 22 | 860083-03 | 1 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 28 | 860083-02 | 1 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 29 | 860075-00 | 1 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 30 | 860089-18 | 1 | SCREW,FIL.HD M.5X16 UNI6107 Z | 4,7 Lei |
