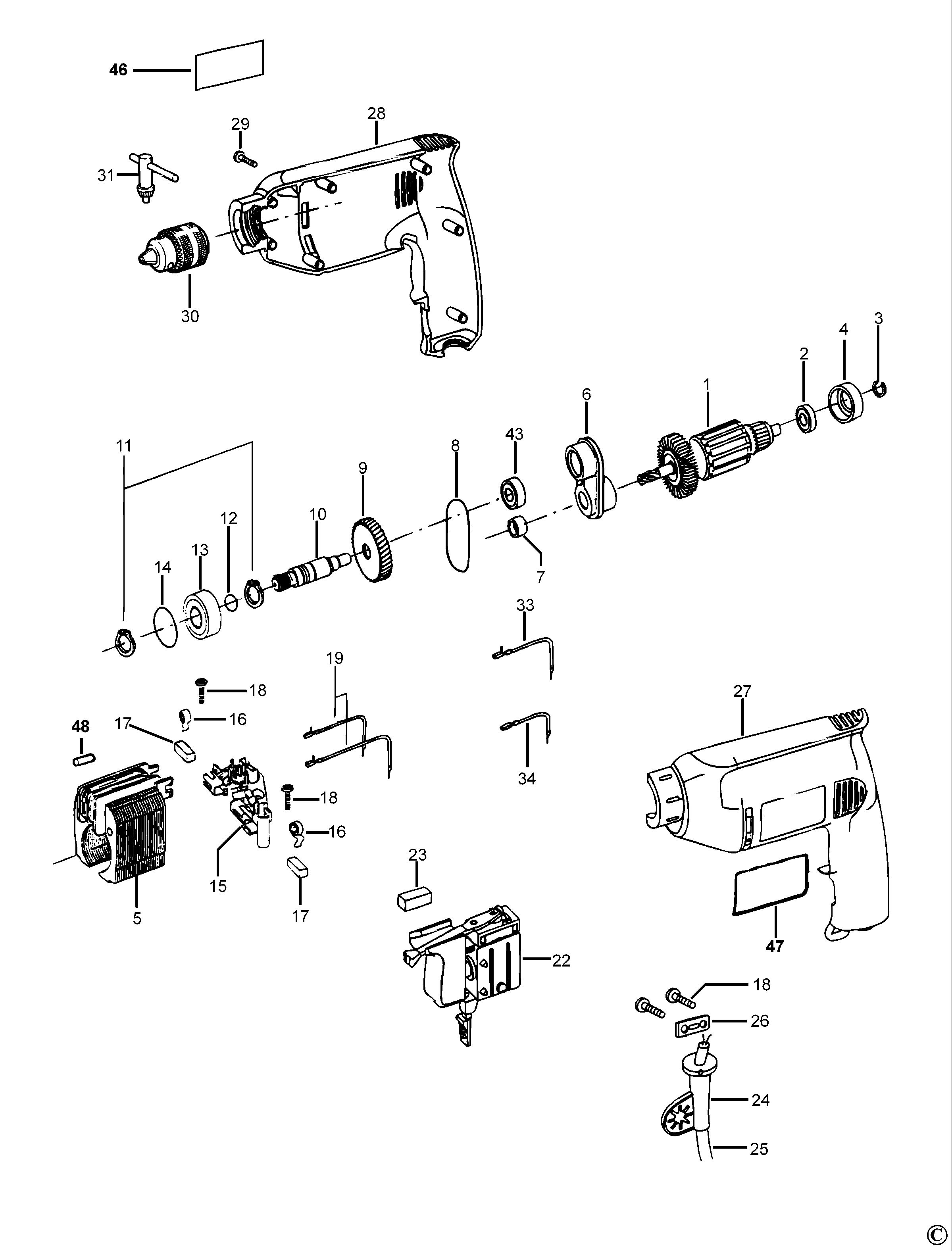

DEWALT DRILL (Type 1)
SKU Produs: DW171 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 330003-02 | 1 | BEARING D7X19X6 607-2Z C3 | 30,1 Lei | |
| 4 | 930029-00 | 1 | CUP | 4,7 Lei | |
| 11 | 930098-00 | 2 | RING,SPRING SHAFT D15 UNI7435 | 4,7 Lei | |
| 12 | 930028-00 | 1 | O-RING | 4,7 Lei | |
| 13 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,4 Lei | |
| 18 | 562097-05 | 4 | Screw DW201,171 | 4,7 Lei | |
| 26 | 930103-00 | 1 | CORD CLAMP | 4,7 Lei | |
| 29 | 562097-03 | 7 | SCREW | 4,7 Lei | |
| 31 | 330034-07 | 1 | Drill Chuck Key | 6,4 Lei |
