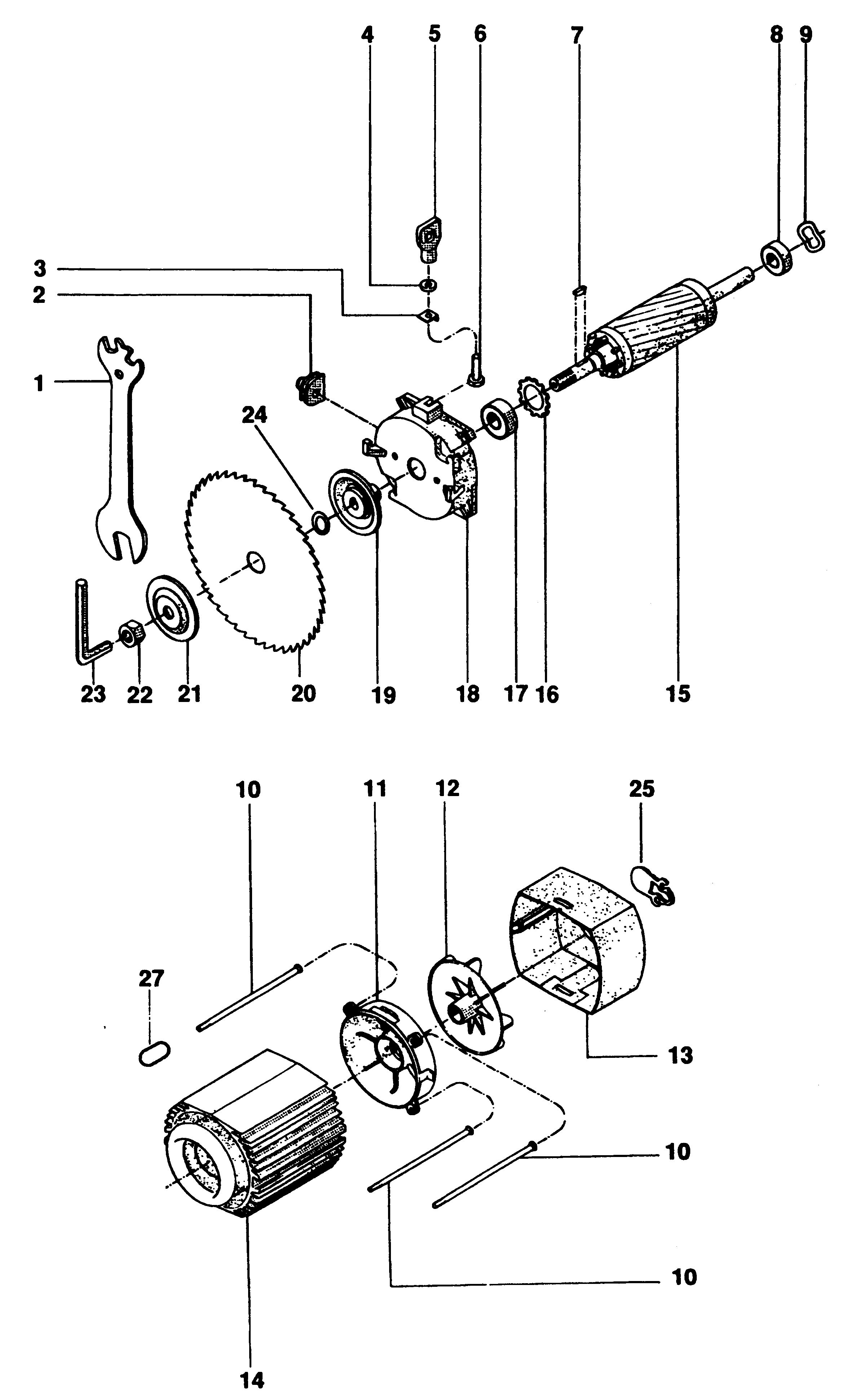

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW1501----B /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 860447-00 | 1 | BUSHING,CABLE MOTOR DW 320 | 31,6 Lei | |
| 4 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 6 | 860085-19 | 1 | SCREW,HEX M.8X25 UNI 5739 | 4,7 Lei | |
| 7 | 860318-01 | 1 | KEY,WOODRUFF 4X5 UNI 6606 | 5,1 Lei | |
| 8 | 868768-07 | 1 | BEARING 6202 | 34,8 Lei | |
| 9 | 860080-02 | 1 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
| 10 | 860446-00 | 3 | ROD,THREADED HEX M.5X145 | 5,3 Lei | |
| 11 | 860443-00 | 1 | BELL,REAR END MOTOR DW 250 | 59,2 Lei | |
| 12 | 860444-00 | 1 | FAN | 20,4 Lei | |
| 13 | 860445-00 | 1 | COVER,FAN MOTOR DW 250 | 26,1 Lei | |
| 16 | 860806-00 | 1 | RING,SPRING S.LOCK HOLE ZJ-40 | 7,5 Lei | |
| 17 | 861721-12 | 1 | BEARING 6203 2RS ISB | 17,4 Lei | |
| 23 | 860098-05 | 1 | WRENCH,HEX 8 UNI 6753 | 14,2 Lei | |
| 25 | 863112-00 | 1 | CAP FOR FAN COVER GUARD DW320 | 4,7 Lei |
