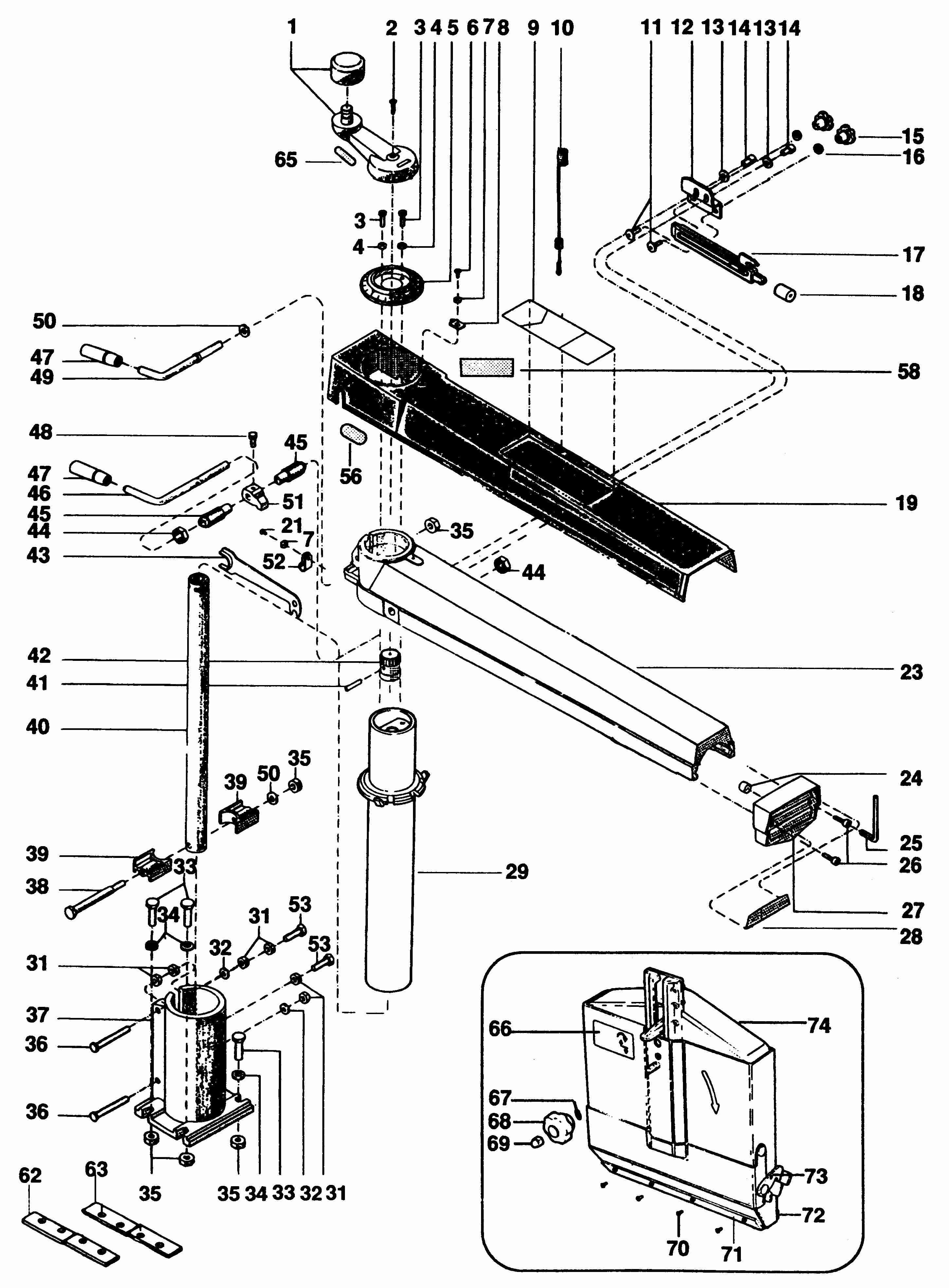

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW1501----A /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 934401-00 | 1 | SCREW | 4,7 Lei | |
| 3 | 860085-10 | 2 | SCREW,HEX M.6X25 UNI 5739 | 4,7 Lei | |
| 4 | 720959-00 | 2 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 5 | 860784-00 | 1 | CAP,COLUMN DW1251 | 26,1 Lei | |
| 6 | 860084-20 | 1 | SCREW,PAN PHAB 3.9X9,5UNI6954 | 4,7 Lei | |
| 7 | 860073-00 | 2 | WASHER,FLAT 4.3X9 UNI 6592 | 4,7 Lei | |
| 8 | 860237-00 | 1 | POINTER,MITRE 7790 | 15,5 Lei | |
| 10 | 863912-00 | 1 | CABLE SUPPORT D.13 1370-INDUS | 13 Lei | |
| 11 | 860301-00 | 2 | SCREW,CUP SQUARE M6X20UNI5732 | 4,7 Lei | |
| 13 | 860074-03 | 2 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 14 | 860093-14 | 2 | SCREW,SOCKET M.8X12 UNI 5931 | 4,7 Lei | |
| 15 | 946469-00 | 2 | KNOB | 5,3 Lei | |
| 16 | 720959-00 | 2 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 18 | 860786-00 | 1 | BUMPER FOR STOP D. 16X22 | 6,4 Lei | |
| 21 | 860531-00 | 3 | SCREW,FIL.HD B M4X10 DIN 7513 | 4,7 Lei | |
| 24 | 860429-00 | 1 | BUMPER D.16X10 BLACK | 7,5 Lei | |
| 25 | 930574-00 | 1 | WRENCH,HEX 5 UNI 6753 | 5,3 Lei | |
| 26 | 860085-10 | 2 | SCREW,HEX M.6X25 UNI 5739 | 4,7 Lei | |
| 31 | 860083-04 | 6 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 32 | 860073-03 | 2 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 33 | 860085-05 | 4 | SCREW,HEX M.10X45 UNI 5739 | 5,3 Lei | |
| 34 | 860073-04 | 4 | WASHER,FLAT 10.5X21 UNI6592 Z | 4,7 Lei | |
| 35 | 860083-05 | 6 | NUT,HEX THICK M.10 UNI 5587 | 4,7 Lei | |
| 36 | 860085-02 | 2 | SCREW,HEX M.8X70 UNI 5739 | 6,4 Lei | |
| 38 | 860086-00 | 1 | SCREW,HEX M.10X110 UNI 5737 | 13 Lei | |
| 39 | 860065-00 | 2 | SPACER,ELEVATING TUBE | 10,5 Lei | |
| 40 | 860791-00 | 1 | SA SCREW,ELEV.L.227+TUBE | 794,6 Lei | |
| 41 | 860096-06 | 1 | PIN,SPIRAL 5X28 UNI 6875 | 4,7 Lei | |
| 42 | 860831-90 | 1 | SLEEVE,ELEV.SCREW DW1251BLANK | 173,3 Lei | |
| 43 | 860423-00 | 1 | WRENCH,22-10 SPECIAL | 59,2 Lei | |
| 44 | 860232-00 | 2 | NUT,HEX 22X8 M.18X1.5 SPEC. | 15,5 Lei | |
| 45 | 860231-00 | 2 | SCREW,HD13 SET MTR LTCM18X1.5 | 59,2 Lei | |
| 50 | 860074-04 | 2 | WASHER,SPRING CON.10.2X22X1.2 | 4,7 Lei | |
| 52 | 860843-02 | 1 | STRAP,CABLE N6 3/8 NYLON | 4,7 Lei | |
| 53 | 949853-11 | 2 | SCREW,SET M.8X35-UNI5925 BRASS | 185,8 Lei | |
| 62 | 860273-00 | 1 | PLATE,LH BASE 25X8 BLACK OXID | 38,6 Lei | |
| 63 | 860273-02 | 1 | PLATE,RH BASE 25X8 BLACK OXID | 72 Lei | |
| 67 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 70 | 860084-05 | 4 | SCREW,PAN.PHAB 3.5X9.5UNI6954 | 4,7 Lei |
