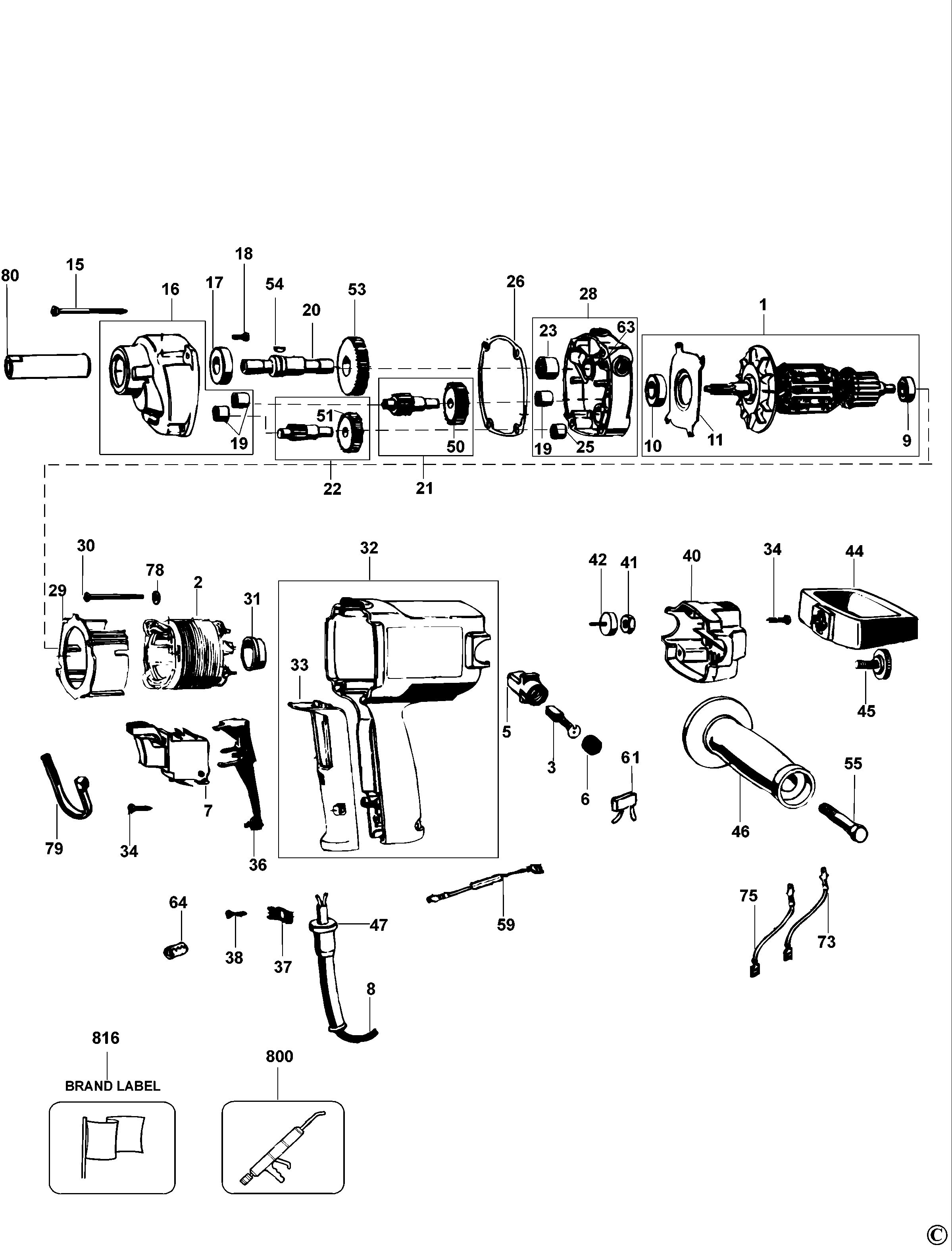

DEWALT MIXER (Type 1)
SKU Produs: DW134 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 450374-12 | 2 | BRUSH AND SPRING - pcs | 31,6 Lei | |
| 5 | 448083-01 | 2 | BRUSH HOLDER | 26,1 Lei | |
| 9 | 605040-20 | 1 | Ball Brg | 17,4 Lei | |
| 10 | 605040-06 | 1 | BEARING,BALL | 14,2 Lei | |
| 15 | 330019-30 | 4 | SCREW, PLASTIC THREAD FORM, M4 * 57 T20 | 4,7 Lei | |
| 16 | N209034 | 1 | GEARCASE SA | 109,5 Lei | |
| 18 | 052819-00 | 1 | SCREW | 4,7 Lei | |
| 19 | 330004-02 | 3 | BEARING, NEEDLE | 8,8 Lei | |
| 20 | 147195-00 | 1 | SPINDLE DW130 TYPE 2 | 109,5 Lei | |
| 22 | 449486-00SV | 1 | GEAR AND PINION | 384 Lei | |
| 23 | 135937-00 | 1 | BEARING | 15,5 Lei | |
| 25 | 330004-27 | 1 | BEARING, NEEDLE | 7,5 Lei | |
| 25 | 449493-00 | 1 | BEARING DW130 TYPE 2 | 8,4 Lei | |
| 26 | 450485-00 | 1 | GASKET DW130 TYPE 2 | 4,7 Lei | |
| 30 | 330019-50 | 2 | SCREW | 4,7 Lei | |
| 31 | 445217-02 | 1 | SLEEVE | 5,3 Lei | |
| 34 | 330019-13 | 6 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 38 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,7 Lei | |
| 41 | 99371-06 | 1 | NUT DW130 | 4,7 Lei | |
| 44 | 628037-00 | 1 | HANDLE | 72 Lei | |
| 45 | 382531-00 | 1 | KNOB | 59,2 Lei | |
| 47 | 401751-00 | 1 | CORD PROTECTOR | 13 Lei | |
| 53 | 400147-00 | 1 | GEAR DW130 TYPE 2 | 31,6 Lei | |
| 54 | 007027-00 | 1 | KEY | 5,3 Lei | |
| 78 | 98197-03 | 1 | WASHER | 4,7 Lei | |
| 80 | 395839-00 | 1 | ADAPTOR | 104,4 Lei | |
| 800 | 429698-00 | 1 | GREASE | 627,4 Lei |
